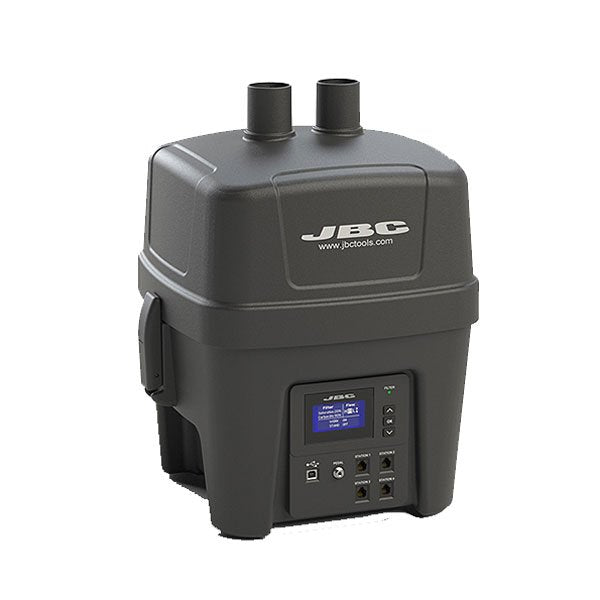

JBC FAE1 Fume Extractor 230V

• The extractor starts up only when soldering. This function saves power and the life of the equipment as well as the filter

• Thanks to a vacuum system integrated into the stand, the system also detects when the tool is at rest and automatically absorbs the fumes.

• The FAE1 provides direct connection of up to 4 soldering or rework stations and stand fume extractions for up to 4 tools.

• It can be controlled via JBC stations, a pedal, a robotic system or a PC.

• It has 3 predefined levels of aspiration: low, medium and high, and a custom mode with which you can set the airflow within the low (10%) and max rates (100%).

• Aspiration flow rate: Low / Medium / High / Custom

• Operation modes: Automatic (JBC Stations), Continuous, Pedal, RS-232 remote control

• Blower type: Brushless

• Max. flow rate: FAE1-1A: 170m3/h (100 CFM)

• FAE1-2A: 190m3/h (112 CFM)

• Max. vacuum

• FAE1-1A: 2.9 KPa (0.42 psi)

• FAE1-2A: 3.4 KPa (0.42 psi)

• Work areas: 1

• Noise Level: 55 dB @ 1m

• Pre-filter: Medium dust filter M5 (EN 779)

• Compact filters: H13 particle filter (EN 1822) + activated carbon filter

• USB-B: Firmware update / QSC connection

• Station 1-4 (RJ12): Direct connection for 4 Stations

• Robot (RJ12): RS-232 remote control

• Aux (RJ45): Peripheral expansion

• Pedal: Optional tool control through Pedal P-005

• ESD/EOS

• ESD safe

• POWER SUPPLY

• Peak power: 95 W (100 V); 110 W (120 V); 110 W (230V)

• Ambient operating temp.: 10 to 40 ºC / 50 to 104 ºF

• Unit: 380 X 340 X 475mm

• Package: 425 x 425 x 545 mm / 12.8 kg
