JBC ESD Table Mat Set 900x600mm/35.43x23.62
Image for Illustrative Purposes Only
JBC Logo

JBC ESD Table Mat Set 900x600mm/35.43x23.62" TMB-KA

SKU: JBC-TMB-KA

TMB-KA

$185.63

EX. GST
$204.19
INC GST
Out of stock: Available to order

own it from $10 a week with Group 2 Copy Created with Sketch.

DESCRIPTION
Features
Contents
Specifications
Shipping & Delivery

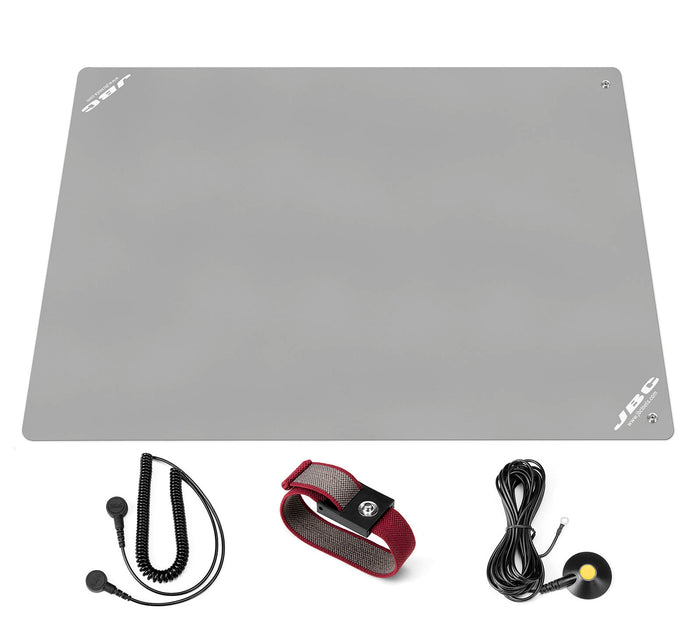

JBC ESD Table Mat Set 900x600mm/35.43x23.62" TMB-KA

TMBK ESD Table Mat Set is designed to safely dissipate static electricity, thereby preventing discharges that could damage integrated circuits and other sensitive electronic devices.

This set consists of TMB Table Mat ESD, TM20 ESD Spiral Earthing Cable, TM21 ESD Earthing Cable and TM50 ESD Earthing Wristband.

Discover the JBC ESD Table Mat Set 900x600mm/35.43x23.62" TMB-KA at Mektronics Australia – your trusted source for quality tools and equipment!

  • The two-layer ESD Table Mat acts as a controlled path for static dissipation. The dissipative top layer slows the discharge, while the conductive bottom layer safely channels it to the ground, protecting sensitive electronics from sudden electrostatic discharges.

  • Excellent resistance to various elements such as oils, greases, common solvents and hot solders. This resistance enhances the mat’s durability and ensures its long-term effectiveness in a variety of environments.

  • The anti-reflective surface improves visual comfort but may also contribute to the accuracy and efficiency of work.

  • ESD Table Mats are an indispensable tool for ensuring the integrity of electronic devices.

  • 1 x instruction Manual

  • 1 x TMB ESD Table Mat 900 x 600 mm / 35.43 x 23.62"

  • 1 x TM20 ESD Spiral Earthing Cable

  • 1 xTM21 ESD Earthing Cable

  • 1 x TM50 ESD Earthing Wristband

TABLE MAT

  • Resistant to: Abrasion, heat, solder, chemicals and oil

  • Connections: ø10 mm press stud (2x)

  • Electrical resistance: 106 - 108 Ω

  • Material: Permanently elastic, 100% PVC-FREE and PHTHALATE-FREE

  • Two layers: dissipative and conductive, RoHS compliant

  • Surfaces: Top side: grey color, anti-reflective

  • Bottom side: black, non-slipping
WRISTBAND

  • Tested according to: BGI 818: 2001

  • Length: 220 mm / 8.66"

  • Connections: ø3 mm press stud

  • Strap Materia: Washable, silver and carbon processed, antiallergic

  • Strap Color: red, easily adjustable

EARTHING CABLE

  • Length: 4.5 m / 177.17"

  • Connections: ø10 mm press stud (1x) and connection eyelet (1x)

  • Electrical resistance: 106 Ω

  • Color: Black
SPIRAL EARTHING CABLE

  • Tested according to: BGI 818: 2001

  • Length: 2.5 m / 98.43"

  • Connections: ø10 mm press stud (1x) andø3 mm press stud (1x)

  • Electrical resistance: 106 Ω

  • Color: Black

  • Net weight: 1,71 kg (3.77lb)

  • Weight and Dimensions:  620 x 136 x 135 mm / 2.04 kg.
