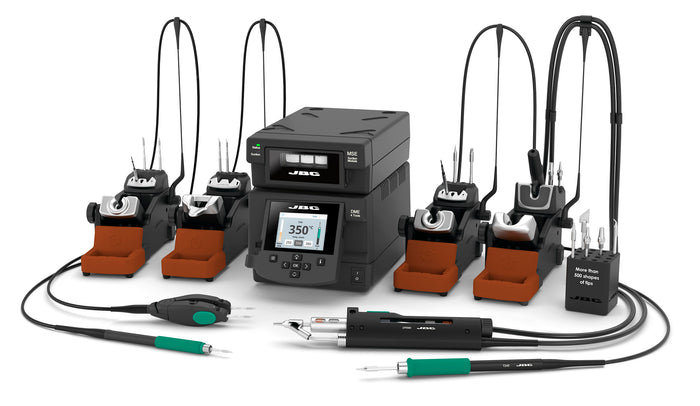

JBC DMPSE 4 Tool Complete Rework Station (Cartridges Not Included)

DMPSE Station equipped with MSE Module ensures efficient and precise solder removal thanks to its powerful suction system. It is perfect for precise soldering, SMD rework and handling high-power applications and enables efficient desoldering of through-hole components.

It guarantees exceptional soldering quality with JBC Most Efficient Soldering System, while Intelligent Heat Management helps extend tip life and reduce energy consumption.

Includes:

  • DME 4-Tool Control Unit managing up to 4 tools simultaneously and fully compatible with 13 different JBC Tools, delivering up to 150 W per tool.

  • T210 Precision Handle, T245 General Purpose Handle, AM120 Adjustable Micro Tweezers and DR560 Desoldering Iron.

  • MSE Electric Desoldering Module offering exceptional suction power for a complete desoldering process.

Discover the JBC DMPSE 4 Tool Complete Rework Station (Cartridges Not Included) at Mektronics Australia – your trusted source for quality tools and equipment!

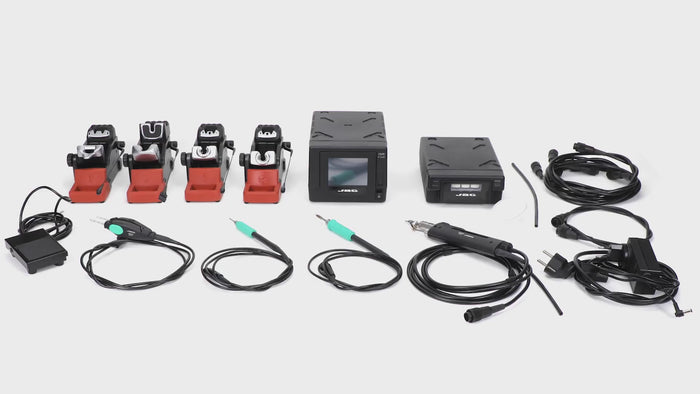

  • DME 4-Tool Control Unit

  • MSE Electric Desoldering Module for DDE & DME

  • AM120 Adjustable Micro Tweezers (cartridge not included)

  • T210 Precision Handle (cartridge not included)

  • T245 General Purpose Handle (cartridge not included)

  • DR560 Desoldering Iron (C560003 already inserted)

  • 2 x ADS Stand for T210 & T245

  • AMS Stand for PA120 & AM120

  • DRS Stand for DR560

  • SCH for Cartridge & Tips Holder

  • P405 Pedal

DME Control Unit



  • Nominal power: 200 W

  • Peak power: 150 W per tool

  • Selectable temperature: 90 to 450 ºC / 190 to 840 ºF

  • Idle temp. stability (still air): ±1.5 ºC / ±3 ºF / Meets and exceeds IPC J-STD-001F

  • Temperature accuracy: ±3 % (using reference cartridge)

  • Temp. adjustment: ±50 ºC / ±90 ºF through station setting menu

  • Tip to ground vol./ resist.: Meets and exceeds ANSI/ESD S20.20 and IPC J-STD-001F

  • Ambient Operating Temp: 10 - 40 ºC / 50 - 104 ºF



Connections

  • USB-A: Firmware Update, Graphics and Profiles, Dino-Lite USB Microscope (models AM2011, AM2111)

  • USB-B: PC Communication

  • RJ12: Fume extractor / Peripherals / Robot

MSE Module

  • Power: 42 W

  • Vacuum: 85 % / 640 mmHg / 25.4 inHg

  • Flow rate: 35 SLPM

  • Ambient Operating Temp: 10 - 40 °C / 50 - 104 °F

  • Pedal connector: Yes

  • Complies with CE standards

  • ESD safe

WEIGHTS & DIMENSIONS

  • Control Unit: 232 x 148 x 120mm / 10.58kg

  • Package: 495 x 415 x 395mm / 16.08kg
