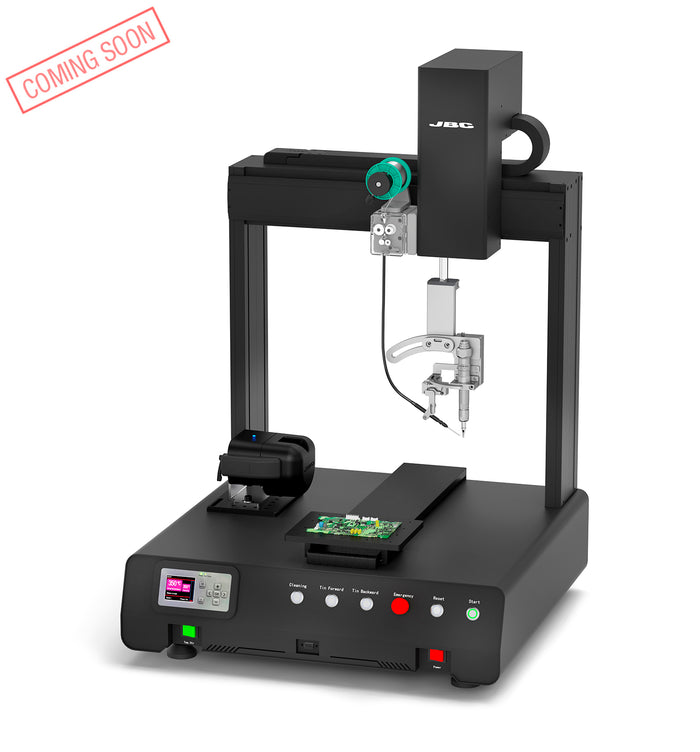

JBC Desktop Robot DKR-2A COMING SOON
All-in-one Selective Soldering Equipment!
Desktop Robot for Automation processes combines the JBC most Efficient Soldering System with high repeatability and excellent performance, providing the best soldering quality and reliability on serial production.
According to your needs, there are two different versions / models. One for general soldering applications which works with R245 Cartridges, and another for those soldering applications that require large amount of heat which works with R470 Cartridges.
DKR is a complete soldering system covers all requirements: accurate tip temperature, soldering time control, solder wire feeding, tip cleaning; all controlled by the teach pendant provided as standard equipment.
This Soldering Set is composed by:
• RBA Soldering Head for Robot, in combination with TR , allows the soldering robot to use different tip shapes to achieve the highest quality on each soldering point.
• SFR Solder Feeder includes a solder-wire perforation allowing better flux flow and outgassing, avoiding solder splashing when soldering.
• CLMRP Tip Cleaner, tip cleaning is carried out in just one second, increasing heat transfer and improving soldering quality
Discover the JBC Desktop Robot DKR-2A COMING SOON at Mektronics Australia – your trusted source for quality tools and equipment!
-
Axes: 4 Axes
-
Travel Range: X, Y axes (400mm), Z axis (95mm), R axis (±360°)
-
Max. speed: X, Y axes (500mm/s), Z axis (500mm/s), R axis (200mm/s)
-
Repetitive XYZ axis positioning accuracy: ±0.05 mm
-
Transportable weight: X, Y axis (10kg), Z axis (3kg)
-
Power supply: AC 240V 50/60 Hz
- Weight and dimensions: Package 545 x 345 x 275mm / 6.00kg
