JBC DDCT Solder Pot Station
SKU: JBC-DDCT-2B
DDCT-2B
DESCRIPTION
Includes
Specifications
Shipping & Delivery

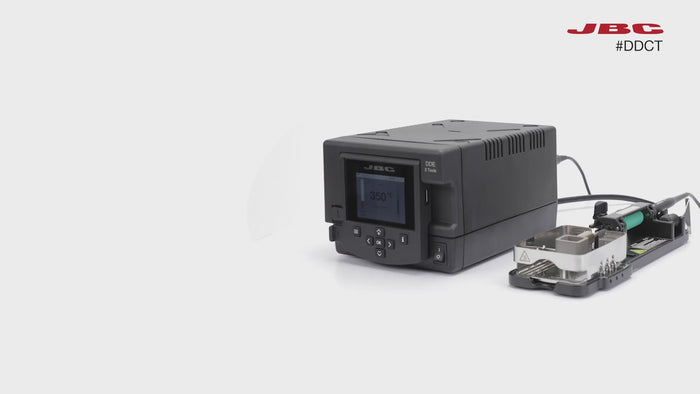

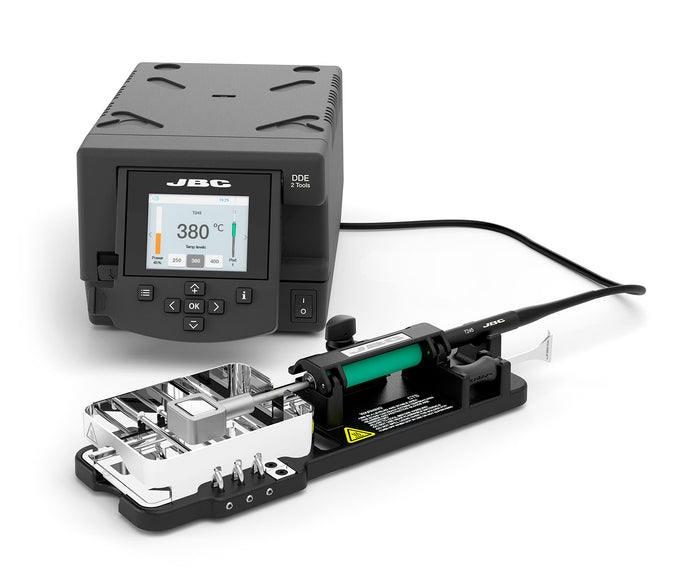

JBC DDCT Solder Pot Station
It is ideal for tinning wires quickly and safely as well as for soldering and desoldering through-hole multipin components.
Additionally, it offers all the advantages of JBC Most Efficient Soldering System.
It includes:
DDE 2-Tool Control Unit: It operates with 2 soldering or desoldering tools simultaneously and allows you to update the software, create graphs and manage parameters from a PC.
CTS Solder Pot Stand: Equipped with a residue tray and protective screen, it prevents accidental tipping and allows you to work safely.
CHB Converter: It allows you to connect the handle to the control unit directly.
T245 General Purpose Handle: Compatible with C245SP01 (18 x 15 mm). The long-lasting solder pot will resist the corrosiveness of lead-free solder alloys.
Cartridge C245SP01 (18 x 15 mm) included.
Discover the JBC DDCT Solder Pot Station at Mektronics Australia – your trusted source for quality tools and equipment!
-
Instruction Manual
-
DDE 2-Tool Control Unit
-
T245 General Purpose Handle
-
CTS Solder Pot Stand
-
C245SP01 Solder Pot Cartridge 18 x 15
-
CHB Converter
-
Nominal power: 200 W
-
Peak power: 150 W per tool
-
Selectable temperature: 90 to 450 ºC / 190 to 840 ºF
-
Idle temp. stability (still air): ±1.5 ºC / ±3 ºF / Meets and exceeds IPC J-STD-001F
-
Temperature accuracy: ±3 % (using reference cartridge)
-
Temp. adjustment: ±50 ºC / ±90 ºF through station setting menu
-
Tip to ground vol./ resist.: Meets and exceeds | ANSI/ESD S20.20 and IPC J-STD-001F
-
Ambient Operating Temp: 10 - 40 ºC / 50 - 104 ºF
-
Connections: USB-A | Firmware Update | Graphics and Profiles | Dino-Lite USB Microscope (models AM2011, AM2111) | USB-B: PC Communication | RJ12: Fume Extractor/Peripherals/Robot
-
Complies with CE standards
-
ESD safe
Weight and dimensions
-
Heavy Duty: 232 x 148 x 120 mm / 2.62 kg | 9.13 x 5.83 x 4.72 in / 5.78 lb.
-
Package: 450 x 345 x 243 mm / 4.07 kg | 17.72 x 13.58 x 9.57 in / 8.97 lb.
