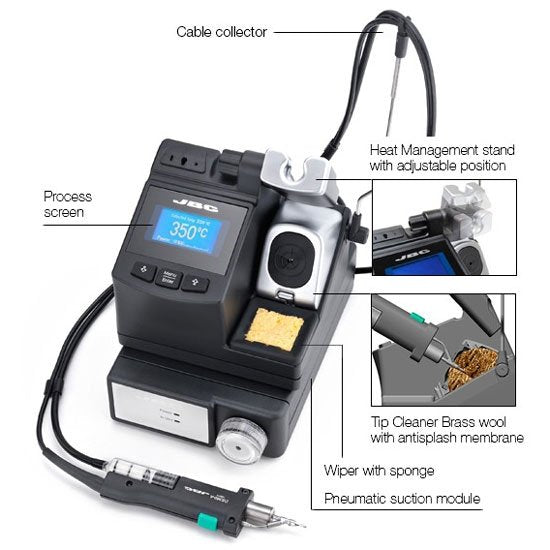

JBC CV Micro Desolder Station with Pneumatic Pump

SKU: JBC-CV-2E

CV-2E

$2,521.39

EX. GST
$2,773.53
INC GST
Out of Stock: Available to Order

own it from $10 a week with Group 2 Copy Created with Sketch.

DESCRIPTION
Features
Specifications
Shipping & Delivery

JBC CV Micro Desolder Station with Pneumatic Pump

The is a microdesoldering station using compressed air for precision electronic applications.

Discover the JBC CV Micro Desolder Station with Pneumatic Pump at Mektronics Australia – your trusted source for quality tools and equipment!

  • It works with the JBC exclusive heating system and the intelligent sleep & hibernation features. Using the menu you can personalize over 20 parameters to help manage the process.

  • incorporates a USB connector (type B) to update station software and create graphs.

  • The JBC CV Micro Desolder Station works with the MV-A Pneumatic pump, the comfortable DS360 Microdesoldering Iron and C360 cartridge range.

JBC CV Micro Desolder Station Product Composition
  • 1 Control Unit

  • 1 MV-A Pneumatic Desoldering Module

  • 1 DS360-A Micro Desoldering Iron

  • 5 C360002 Through hole desoldering Ø 0.8

  • 5 C360004 Through hole desoldering Ø 1.2

  • Selectable Temperature: 180 to 450 ºC / 360 to 840 ºF

  • Vacuum: 90% / 680 mmHg / 26.8 inHg

  • Flow rate: 15 SLPM

  • USB-B: Software PC / Firmware update

  • Equipotential bonding: Optional connection to EPA

  • ESD safe

  • Tip to ground resistance: <2 ohms

  • Peak power: 40 W - 23,5 V

  • Ambient operating temp.: 10 to 50 ºC / 50 to 120 ºF

JBC CV Micro Desolder Station Dimensions & Weight
  • Control Unit: 150 x 175 x 145 mm / 4.0 kg (5.9 x 6.9 x 5.7 in / 8.82 lb)

  • Package: 495 x 295 x 255 mm / 4.96 kg (19.5 x 11.6 x 10 in / 10.94 lb)

JBC CV Micro Desolder Station Compatible Items

MS-A Electric Desoldering Module for DI

MV-A Pneumatic Desoldering Module for DI

DS360-A Micro Desoldering Iron

CC3702 Cable Collector

JBC CV Micro Desolder Station Applicable Cartridges

C360 Cartridge Range
