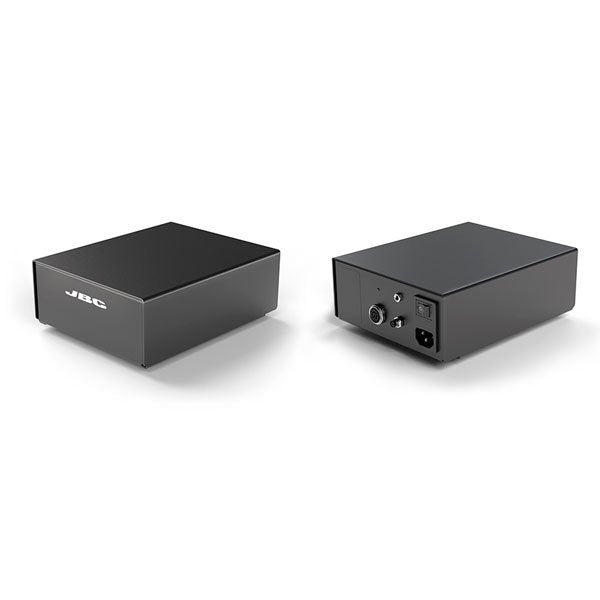

JBC Control Box R245
SKU: JBC-UCR245-5A
UCR245-5A
DESCRIPTION
Features
Specifications
Shipping & Delivery
JBC Control Box R245
The UCR245 Control Box manages the new developed Soldering Irons TR245 and TRA245 and works with the Cartridges R245. It is developed for automated soldering processes with standard requirements.
Discover the JBC Control Box R245 at Mektronics Australia – your trusted source for quality tools and equipment!
- To establish the communication between the UCR Control Box and a Robot (PC or PLC) download the Communication Protocol for UCR at www.jbctools.com/jbcsoftware.html.
- More than 40 commands help to control working parameters such as Temperature, Sleep, Hiber- nation and Control Box status. Also allows getting Information about Errors and Hours Counter.
- To integrate the UCR245 Control Box in your Automated Soldering Process, JBC provides the Soldering Unit HA245A-5A for general soldering purposes, easily installable to existing Robots.
- SPECIAL FEATURES
- Cartridge compatibility: R245
- Tool compatibility: Manual Iron: TR245 Automatic Iron: TRA245
- SELECTABLE PARAMETERS
- Temperature: 90 to 450 ºC (190 to 840 ºF)
- CONNECTIVITY
- Tool connection: M16-8pins
- Serial communication RS-232: M8-5pins
- Equipotential bonding
- ESD/EOS
- ESD safe
- Tip to ground resistance: <2 ohms
- POWER SUPPLY
- Peak power: 160 W - 21 V
- Voltage (AC): 100 to 240 V
- Ambient operating temp.: 10 to 40 ºC / 50 to 104 ºF
- DIMENSIONS AND WEIGHT
- Control Box: 210 x 162 x 75 mm / 2.20 kg 8.3 x 6.4 x 3.0 in / 4.85 lb
- Package: 328 x 258 x 208 mm / 2.60 kg 12.9 x 10.2 x 8.2 in / 5.73 lb
