JBC BIN-5B B.Iron Nano Station with Portable Display
SKU: JBC-BIN-5B
BIN-5B
DESCRIPTION
Contents
Specifications
Shipping & Delivery
JBC BIN-5B B.Iron Nano Station with Portable Display
B.IRON NANO features a lightweight and ergonomic tool, providing the highest precision for soldering SMDs.
The short-distance tip-to-grip ensures exceptional control for meticulous tasks and its unprecedented freedom of movement optimizes working under a magnifying glass or in areas away from the workbench.
It performs up to 120 small SMD soldering joints per charge.

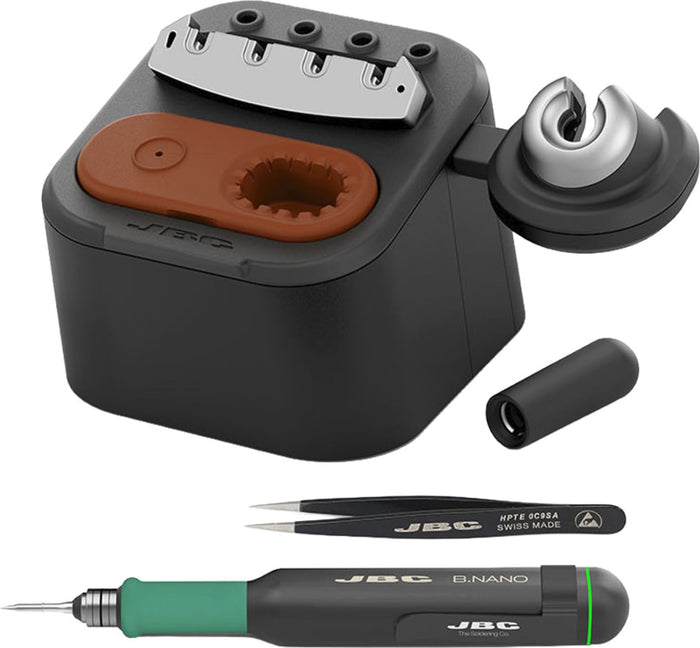

Included:
-
B.NANO Nano Tool, which is fully compatible with C115 Cartridge Range. It also has a pen-style clip for easier carrying and a power safe mode that can be activated by putting on the cap.
-
BCB Charging-Base for charging the tool automatically when placed in Tool Holder.
-
HPTE0C9SA High-Precision Tweezers with ESD Epoxy Coating. Designed to firmly hold small components.
It also features Quick Cartridge Exchanger, enabling a safe and easy cartridge change, Tip Cleaner with Brass Wool and Antisplash Membrane.

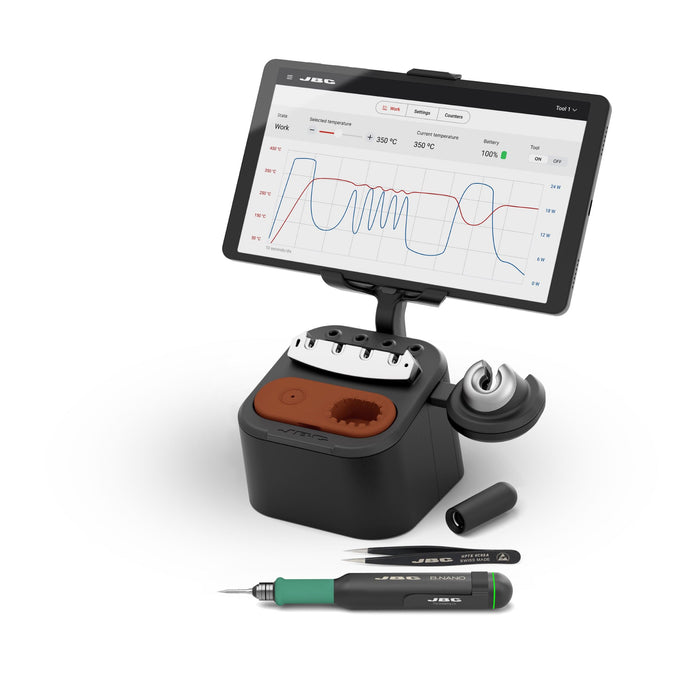

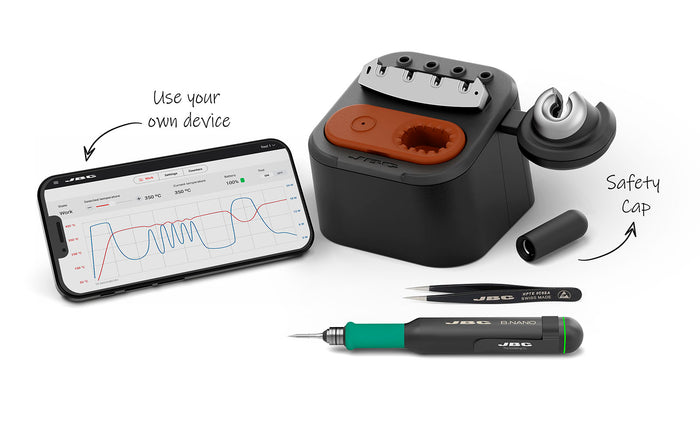

*PDS Portable Display 8.6" with B.IRON app is included in BIN-5B reference.
Discover the JBC BIN-5B B.Iron Nano Station with Portable Display at Mektronics Australia – your trusted source for quality tools and equipment!
Stand
-
Input voltage: 100 V - 240 V 50/60 Hz
-
Power: 40 W
-
Tool output: 12 V / 1000 mA
- USB output: 5 V / 1000 mA
Tool
-
Peak power: 15 W
-
Selectable temperature: 100 to 450 ºC / 210 to 840 ºF
-
Temperature accuracy: ± 3% (using reference cartridge)
-
Battery: Li-Ion 7.4 V / 120 mAh
-
Charge time: 30 minutes
-
Ambient Operating Temp: 10 - 50 °C / 50 - 122 °F
-
Weight: 35g
- ESD safe: Meet ANSI/ESD S20.20
Console
-
Screen size: 8.6"
-
Connectivity: Bluetooth 5.0
- Battery: Li-Ion 3.7 V / 5000 mAh
Weight and Dimensions
-
B.IRON Battery-Powered System: 202 x 200 x 211mm / 2.15kg
- Package: 265 x 243 x 160mm / 2.72kg
