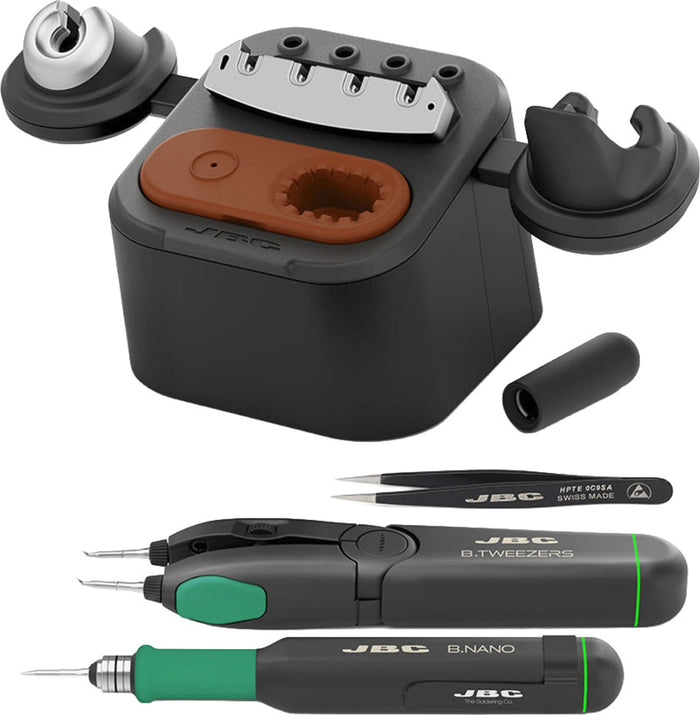

JBC BINP-5QB B.Iron Dual Rework Station without Portable Display

B.IRON REWORK Station ideal for soldering and reworking the smallest SMD.

Provides the hightest precision when rework SMDs.

Included:

  • B.NANO Nano Tool has a pen-style clip for easier carrying and a power safe mode that can be activated by putting on the cap.

  • B.TWEEZERS Nano Tweezers. It performs up to 60 SMD rework process per charge.

  • Fully compatible with C115 Cartridge Range.

  • Charging-Base for charging tool automatically when placed in Tool Holder.

  • HPTE0C9SA High-Precision Tweezers with ESD Epoxy Coating for require holding small components firmly.

It also features Quick Cartridge Exchanger, enabling a safe and easy cartridge change, Tip Cleaner with Brass Wool and Antisplash Membrane.

*PDS Portable Display 8.6" with B.IRON app is included in BINP-5B reference.

Discover the JBC BINP-5QB B.Iron Dual Rework Station without Portable Display at Mektronics Australia – your trusted source for quality tools and equipment!

  • Instruction Manual

  • BCB Charging-Base

  • B.TWEEZERS Nano Tweezers

  • B.IRON Nano Tool

  • C115101 Conical Ø 0.1

  • C115103 Conical Ø 0.3 S1

  • C115105 Conical Bent Ø 0.3

  • C115107 Conical Ø 0.8

  • C115112 Knife 2.5 x 0.3

  • C115113 Chisel 1 x 0.3

  • B1596 Safety Cap

  • HPTE0C9SA High-Precision Tweezers
Stand

  • Input voltage: 100 V - 240 V 50/60 Hz

  • Power: 40 W

  • Tool output: 12 V / 1000 mA

  • USB output: 5 V / 1000 mA
Nano Tool

  • Peak power: 15 W

  • Selectable temperature: 100 to 450ºC / 210 to 840ºF

  • Temperature accuracy: ± 3%

  • Battery: Li-Ion 7.4 V / 120 mAh

  • Charge time: 30 minutes

  • Weight: 35 g / 0.08 lb

  • ESD safe: Meet ANSI/ESD S20.20
Nano Tweezers

  • Peak power: 15 W

  • Selectable temperature: 100 to 450ºC / 210 to 840ºF

  • Temperature accuracy: ± 3%

  • Battery: Li-Ion 7.4 V / 180 mAh

  • Charge time: 45 minutes

  • Weight: 57 g / 0.126 lb

  • ESD safe: Meet ANSI/ESD S20.20

Console

  • Screen size: 8.6" (not included)

  • Connectivity: Bluetooth 5.0

  • Battery: Li-Ion 3.7 V / 5000 mAh
Weight and dimensions

  • B.IRON Battery-Powered System: 215 x 199 x 211mm / 2.25kg

  • Package: 265 x 243 x 160mm / 2.88kg
