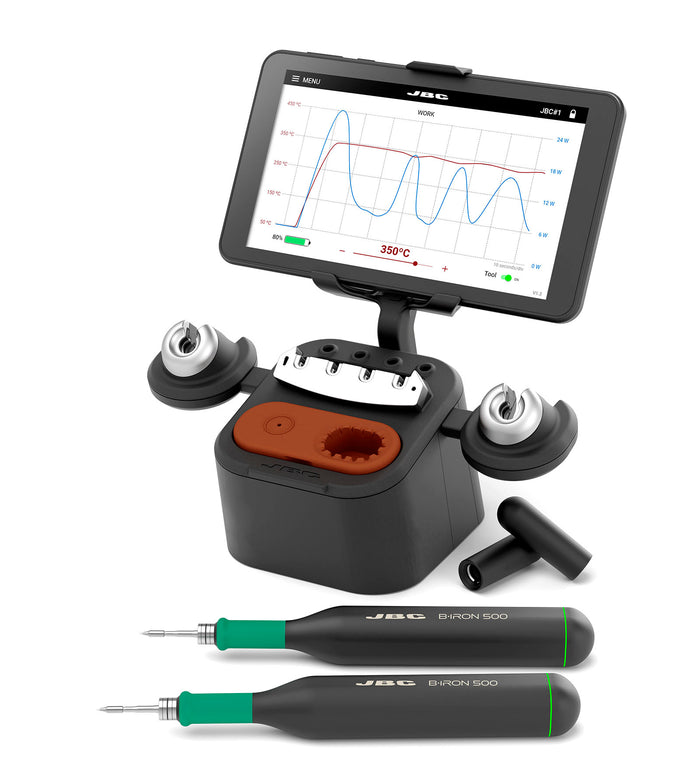

JBC B·IRON DUAL 500 Dual Battery-Powered Soldering Station
SKU: JBC-BISS-5A
BISS-5A
DESCRIPTION
Contents
Specifications
Shipping & Delivery
JBC B·IRON DUAL 500 Dual Battery-Powered Soldering Station
B·IRON DUAL 500 is specially designed for continuous work in mass production.
It performs up to 500 SMD soldering joints per charge.
This station converts into a dual-tool station by adding an extra tool. Both tools can be controlled in real time.
Inclusions:
-
B·500 Handle (x2), which is fully compatible with C210 Cartridge Range. It also has a power safe mode that can be activated by putting on the cap.
-
Charging-Base for charging booth tools automatically when placed in Tool Holder.
-
It also features Quick Cartridge Exchanger, enabling a safe and easy cartridge change, Tip Cleaner with Brass Wool and Antisplash Membrane.
-
PDS Portable Display 7" with B·IRON app to configure and control the system.
Discover the JBC B·IRON DUAL 500 Dual Battery-Powered Soldering Station at Mektronics Australia – your trusted source for quality tools and equipment!
-
Instruction Manual
-
2 x B·500 Handle for B·IRON
-
2 x C210001 Conical Cartridge Ø 0.3
-
1 x PDS Portable Display 7" for B·IRON
-
2 x B1596 Safety Cap for B·IRON Handles
CHARGING BASE
-
Input voltage: 100 V - 240 V 50/60 Hz
-
Power: 40 W
-
Tool output: 12 V / 1000 mA
-
USB output: 5 V / 1000 mA
TOOL
-
Output peak power: 24 W
-
Battery: Li-Ion 7.4V / 750 mAh
-
Charge time: 60 minutes
-
Selectable temperature: 100 to 450ºC / 210 to 840ºF
-
Idle temp. stability (still air): ±1.5 °C / ±3 °F
-
Temperature accuracy: ± 3% (Using reference cartridge)
-
Connections: Bluetooth Low Energy (BLE)
-
Ambient Operating Temp: 10 - 50 °C / 50 - 122 °F
-
Tool Weight: 75 g / 0.165 lb
WEIGHTS & DIMENSIONS
-
2.126 kg (4.69 lb)
-
2.738 kg (6.04 lb)
-
265 x 223 x 160mm
