JBC Automatic Solder Feeder 230V

SKU: JBC-SF-210VB

SF-210VB

$2,460.92

EX. GST
$2,707.01
INC GST
In Stock

Order before 2pm today for same day dispatch of up to units from our Sydney warehouse.

own it from $10 a week with Group 2 Copy Created with Sketch.

DESCRIPTION
Features
Specifications
Shipping & Delivery

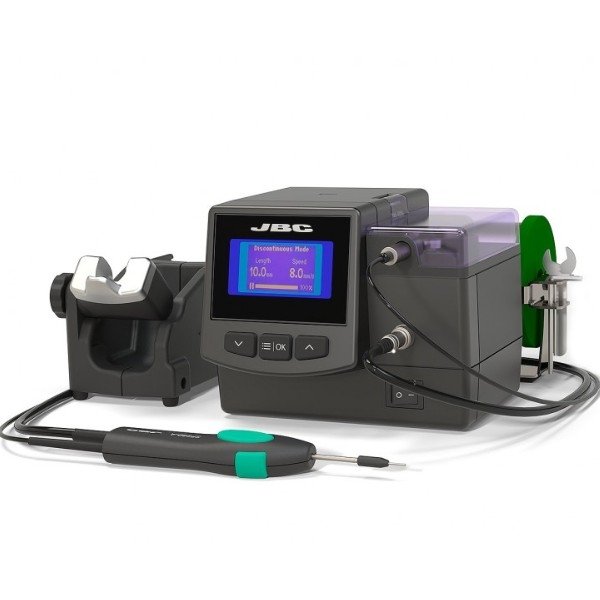

JBC Automatic Solder Feeder 230V

This Solder Feeder allows you to feed solder wire automatically from any position. You can easily configure parameters such as dispensed wire speed and length. You can also monitor the solder consumption thanks to integrated counters.

Discover the JBC Automatic Solder Feeder 230V at Mektronics Australia – your trusted source for quality tools and equipment!

  • 3 working modes: continuous, discontinuous and program mode. In each program you can configure up to 3 steps with different dispensed wire length and speed. Execute up to 35 programs, cyclically programmable.
  • Solder Wire Perforation: The solder feeder features a small blade that perforates the solder wire down to the flux core while feeding it. This perforation process allows better flux flow and outgassing, avoids solder and flux splashing when soldering
  • The SF includes the ergonomic SF280-A Solder Feed Handle and the Ø 1 mm GSF10V Guide Set. Compatible Guide Sets are also without Solder Wire Perforation available.
  • Net weight: 2,32 kg (5.11lb)
  • Spool Capacity up to 1 kg (2.2 Ib)
  • Solder Wire Diameter: 1 mm (0.04 in)
  • More diammeters available. See guide sets for SF280.
  • Voltage: 230V (0.125 A)
  • Maximum Speed: 120 mm/s
  • Ambient operating temp.: 10-40 °C (50-104 °F)
  • Communication connectors: USB-B, peripherals, RJ12 for RS-232 connection
  • Package weight: 3,23 kg (7.12lb)

  • Package dimensions: 368 x 368 x 195 mm(14.49 x 14.49 x 7.68 in)
