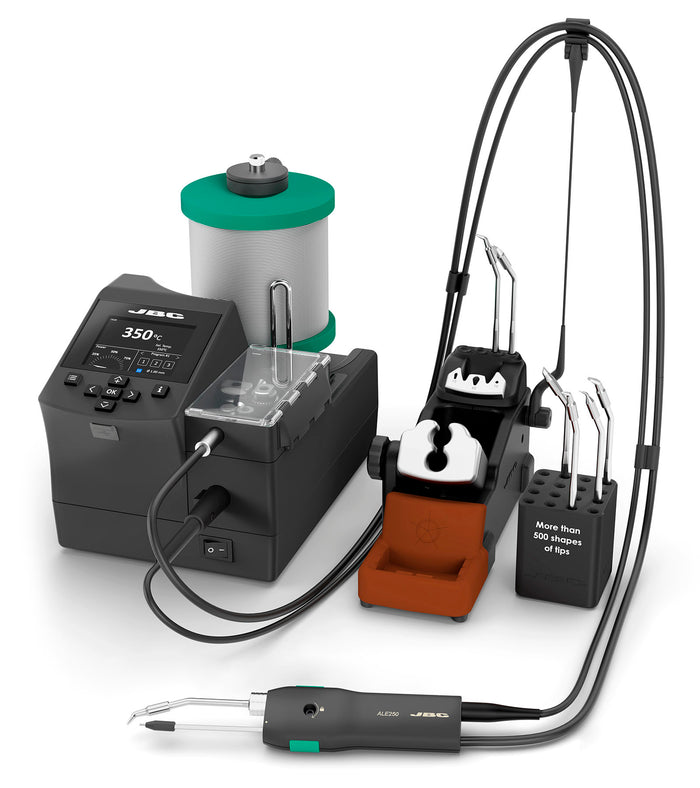

JBC ALE-210VB Auto-Feed Soldering Station 230V Ø1 with Perforation
SKU: JBC-ALE-210VB
ALE-210VB
DESCRIPTION
Contents
Specifications
Shipping & Delivery
JBC ALE-210VB Auto-Feed Soldering Station 230V Ø1 with Perforation
Ideal for soldering processes requiring high productivity.
It includes JBC Most Efficient Soldering System.
This station is supplied with:
-
The new version of ALE250 Automatic-Feed Soldering Iron, featuring a dynamic tool setting making it ideal for reaching different solder joints.. It works with C250, C250E and C245L Cartridge Range.
- ALE10V has a diameter of Ø1 mm. ALE Control Unit is also compatible with solder wires ranging from Ø 0.4 mm up to Ø 1.8 mm, using the respective Solder Wire Guide Kit. It features Solder Wire Perforation for diameters starting at Ø 0.8 mm and above, allowing better flux flow and outgassing, thus avoiding projections and Foreign Object Debris (FOD).
This station can hold a solder reel of up to 2 kg / 4.40 lb.
-
3 different working modes: Continuous Mode, Discontinuous Mode and Program Mode which allows configuration of dispensed wire speed and length.
- Connectivity: Data download, remote control for traceability and software updates.
Discover the JBC ALE-210VB Auto-Feed Soldering Station 230V Ø1 with Perforation at Mektronics Australia – your trusted source for quality tools and equipment!
-
Nominal power: 180 W
-
Peak power: 150 W
-
Selectable temperature: 90 to 450 ºC / 190 to 840 ºF
-
Idle temp. stability (still air): ±1.5 ºC / ±3 ºF (Meets and exceeds IPC J-STD-001)
-
Temperature accuracy: ±3 % (Using reference cartridge)
-
Temp. adjustment: ±50 ºC / ±90 ºF (Through station menu settings)
-
Connections: USB-A Update and files import-export / USB-B Software PC / RJ12 Fume extractor connection
-
Equipotential bonding: Optional connection to EPA
-
Tip-to-ground resistance: <2 ohms
-
Tip-to-ground voltage: <2 mV RMS
-
ESD safe: Meet ANSI/ESD S20.20
-
Solder wire diameter: 1.0 mm / 0.04 in with GALE10V already assembled
-
Max. wire length: 250 mm / 9.84 in (for discontinuous + program mode)
-
Min. wire length: 0.5 mm / 0.02 in
-
Max. forward speed: 0.5 to 50 mm/s / 0.02 to 1.97 in/s
-
Max. Backward Function: 0.0 to 5.0 mm/s / 0.5 to 0.20 in/s
-
Programs: 5 Programs
-
Program Steps: 1 to 3 Steps (for each program)
-
USB-A: Firmware update / Graphics and profiles
-
USB-B: PC communications
- Pedal connector: Tool control
Compatible Solder Reel
-
Weight: up to 2 kg / 4.4 Ib
-
Diameter: max. 100 mm / 3.94 in
-
Height: max. 100 mm / 3.94 in
- Reel stand axis: Ø 10 mm / Ø 0.4 in
Weight and dimensions
-
Automatic Feed: 235 x 170 x 112 mm / 7.83 kg
- Package: 545 x 345 x 275 mm / 8.46 kg
