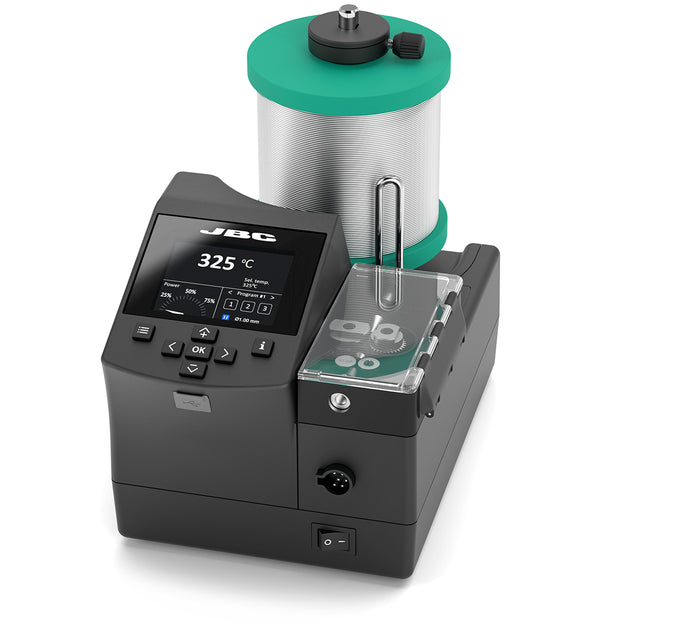

JBC Control Unit Auto-Feed Soldering 230V ALE-210UVA
SKU: JBC-ALE-210UVA
ALE-210UVA
DESCRIPTION
Specifications
Shipping & Delivery
JBC Control Unit Auto-Feed Soldering 230V ALE-210UVA
Ideal for soldering processes requiring high productivity. It includes JBC Most Efficient Soldering System.
This control unit is supplied with GALE10V to feed solder wire of Ø 1 mm and is furthermore compatible with solder wires from Ø 0.4 mm up to Ø 1.8 mm, using the respective Solder Wire Guide Kit. It features Solder Wire Perforation, allowing better flux flow and outgassing, thus avoiding projections and Foreign Object Debris (FOD).
ALE250 Automatic-Feed Soldering Iron works with C250 Cartridge Range.
This station can hold a solder reel of up to 2 kg / 4.40 lb.
3 different working modes: Continuous Mode, Discontinuous Mode and Program Mode which allows configuration of dispensed wire speed and length.
Connectivity: Data download, remote control for traceability and software updates.
Discover the JBC Control Unit Auto-Feed Soldering 230V ALE-210UVA at Mektronics Australia – your trusted source for quality tools and equipment!
-
Peak power: 150 W - 23.5 V
-
Selectable temperature: 90 to 450 ºC / 190 to 840 ºF
-
Tip-to-ground resistance: <2 ohms
-
Tip-to-ground voltage: <2 mV RMS
-
Solder wire diameter: 0.4 - 1.6mm / 0.02 - 0.06"
-
Max. wire length: 250mm / 9.84"
-
Max. forward speed: 50mm/s / 4.72"
- Max. reverse speed: 50mm/s / 4.72"
Compatible Solder Reel
-
Weight: up to 2kg
-
Diameter: max. 100mm
- Height: max. 100mm
Weight and Dimensions
-
Control Unit: 235 x 170 x 112mm / 5.81kg
- Package: 368 x 368 x 195mm / 6.72kg
