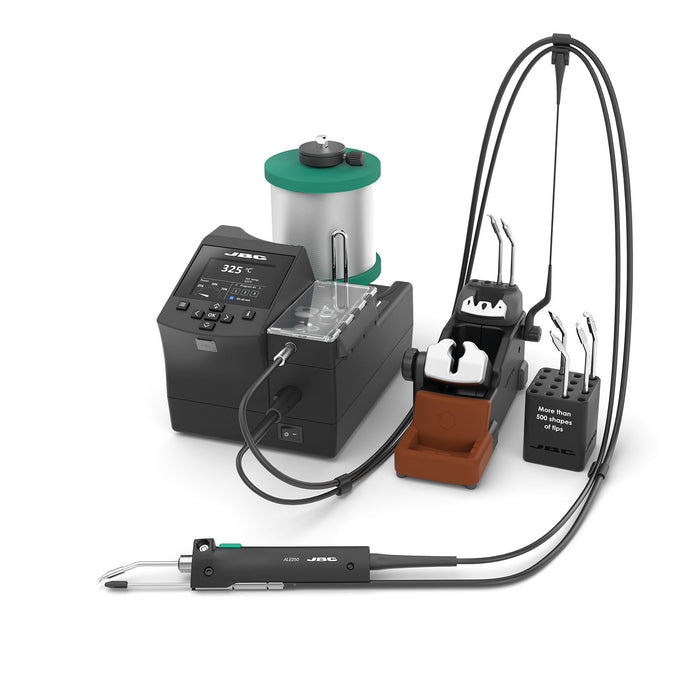

JBC Auto-Feed Solder Station
SKU: JBC-ALE-210VA
ALE-210V
DESCRIPTION
Contents
Specifications
Shipping & Delivery
JBC Auto-Feed Solder Station
Ideal for soldering processes requiring high productivity. It includes JBC Most Efficient Soldering System.
This station is supplied with GALE10V to feed solder wire of Ø 1 mm and is furthermore compatible with solder wires from Ø 0.4 mm up to Ø 1.8 mm, using the respective Solder Wire Guide Kit. It features Solder Wire Perforation, allowing better flux flow and outgassing, thus avoiding projections and Foreign Object Debris (FOD).
ALE250 Automatic-Feed Soldering Iron works with C250 Cartridge Range- available to purchase HERE
This station can hold a solder reel of up to 2 kg / 4.40 lb.
3 different working modes: Continuous Mode, Discontinuous Mode and Program Mode which allows configuration of dispensed wire speed and length
Connectivity: Data download, remote control for traceability and software updates
Discover the JBC Auto-Feed Solder Station at Mektronics Australia – your trusted source for quality tools and equipment!
-
Instruction Manual
-
ALE Automatic-Feed Control Unit - (guide components assembled)
-
ALE250 Automatic-Feed Iron - (cartridge and guide not included)
-
ALES Stand for ALE250
-
C250403 Conical Bent Cartridge Ø 1
-
GALE10V Guide Kit Ø 1.0 mm for ALE250 with perforation
-
P405 Pedal
-
SCH for Cartridge & Tips Holder
-
PLR195 Cartridge Extractor Plier
-
Peak power: 150 W
-
Selectable temperature: 90 to 450 ºC / 190 to 840 ºF
-
Solder wire diameter: 1.0 mm / 0.04 in with GALE10V already assembled
-
Max. wire length: 250 mm / 9.84 in
-
Min. wire length: 0.5 mm / 0.02 in
-
Temperature accuracy: ±3%
-
ESD safe: Meet ANSI/ESD S20.20-2021
-
Equipotential bonding: Connection to EPA
-
Tip-to-ground resistance: <2 ohms
-
Tip-to-ground voltage: <2 mV RMS
-
USB-A: Firmware update, Graphics and profiles
-
USB-B: PC communications
-
FAE / Robot connector: Remote control or FAE Fume Extractor connection
-
Pedal connector: Tool control
COMPATIBLE SOLDER REEL
-
Weight: up to 2 kg / 4.4 Ib
-
Diameter: max. 100 mm / 3.94 in
-
Height: max. 100 mm / 3.94 in
-
Reel stand axis: Ø 10 mm / Ø 0.4 in
WEIGHT & DIMENSION
-
Control Unit: 235 x 170 x 112mm / 7.83kg
-
Package: 545 x 345 x 275mm / 8.46kg
