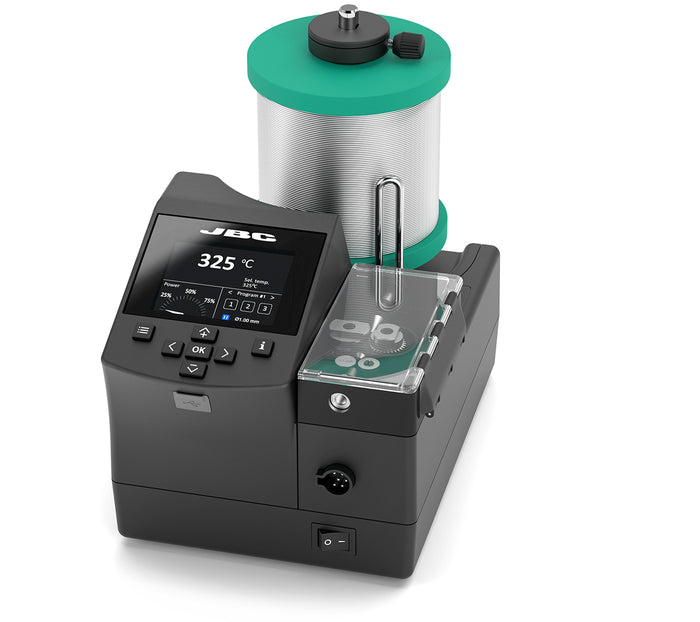

JBC ALE-210UVB Auto-Feed Control Unit 230V Ø1 with Perforation
SKU: JBC-ALE-210UVB
ALE-210UVB
DESCRIPTION
Contents
Specifications
Shipping & Delivery
JBC ALE-210UVB Auto-Feed Control Unit 230V Ø1 with Perforation
Ideal for soldering processes requiring high productivity.
It includes JBC Most Efficient Soldering System.
This control unit is supplied with GALE10V to feed solder wire of Ø 1 mm and is furthermore compatible with solder wires from Ø 0.4 mm up to Ø 1.8 mm, using the respective Solder Wire Guide Kit. It features Solder Wire Perforation, allowing better flux flow and outgassing, thus avoiding projections and Foreign Object Debris (FOD).
ALE250 Automatic-Feed Soldering Iron works with C250 Cartridge Range.
This station can hold a solder reel of up to 2 kg / 4.40 lb.
-
3 different working modes: Continuous Mode, Discontinuous Mode and Program Mode which allows configuration of dispensed wire speed and length
-
Connectivity: Data download, remote control for traceability and software updates
Discover the JBC ALE-210UVB Auto-Feed Control Unit 230V Ø1 with Perforation at Mektronics Australia – your trusted source for quality tools and equipment!
-
Instruction Manual
-
ALE Automatic-Feed Control Unit (GALE10V Guide kit already assembled)
-
Nominal power: 180 W
-
Peak power: 150 W
-
Selectable temperature: 90 to 450 ºC / 190 to 840 ºF
-
Idle temp. stability (still air): ±1.5 ºC / ±3 ºF (Meets and exceeds IPC J-STD-001)
-
Temperature accuracy: ±3 % (Using reference cartridge)
-
Temp. adjustment: ±50 ºC / ±90 ºF (Through station menu settings)
-
Connections: USB-A Update and files import-export / USB-B Software PC / RJ12 Fume extractor connection
-
Equipotential bonding: Optional connection to EPA
-
Tip-to-ground resistance: <2 ohms
-
Tip-to-ground voltage: <2 mV RMS
-
ESD safe: Meet ANSI/ESD S20.20
-
Solder wire diameter: 1.0mm / 0.04 in with GALE10V already assembled
-
Max. wire length: 250mm / 9.84 in (for discontinuous + program mode)
-
Min. wire length: 0.5mm / 0.02 in
-
Max. forward speed: 0.5 to 50 mm/s / 0.02 to 1.97 in/s
-
Max. Backward Function: 0.0 to 5.0 mm/s / 0.5 to 0.20 in/s
-
Programs: 5 Programs
-
Program Steps: 1 to 3 Steps (for each program)
-
USB-A: Firmware update / Graphics and profiles
-
USB-B: PC communications
- Pedal connector: Tool control
Compatible Solder Reel
-
Weight: up to 2 kg / 4.4 Ib
-
Diameter: max. 100 mm / 3.94 in
-
Height: max. 100 mm / 3.94 in
- Reel stand axis: Ø 10 mm / Ø 0.4 in
Weight and dimensions
-
Control Unit: 235 x 170 x 112 mm / 5.81 kg
- Package: 368 x 368 x 195 mm / 6.72 kg
