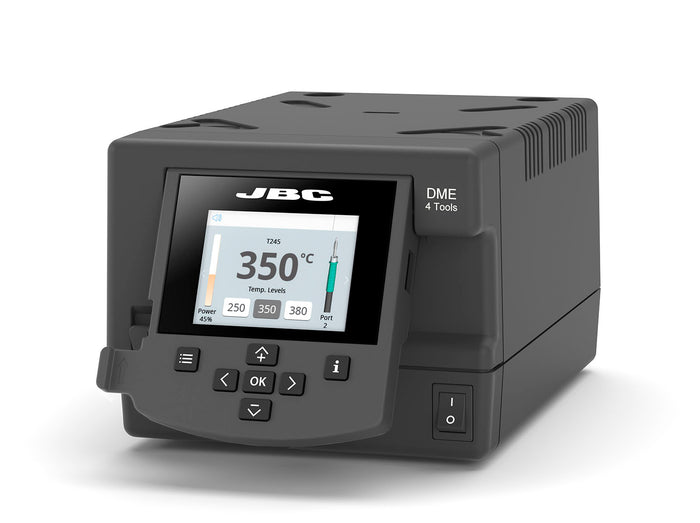

Image for Illustrative Purposes Only
JBC DME-2B 4 Tool Control Unit
SKU: JBC-DME-2B
DME-2B
DESCRIPTION
Contents
Specifications
Shipping & Delivery
JBC DME-2B 4 Tool Control Unit
DME control unit enables simultaneous operation with at least 4 soldering or desoldering tools and is fully compatible with 13 JBC tools, delivering up to 150 W per tool.
This version adopts DDE-style design with a 7-button interface, providing a more robust and intuitive user experience.
It features a switched power supply and enhanced thermal performance. Operates with JBC Most Efficient Soldering System and Sleep and Hibernation Modes to ensure high efficiency, temperature stability and extended tip life.
When two or more tools are connected, the station offers a split-screen display for easy monitoring and control of all active channels. A pedal connection is also included.
The integrated USB connector allows software updates, graph generation and parameter management directly from a PC.
The unit is compatible with MSE-B, MVE-A and MNE-A modules (not compatible with MSE-A).
For a basic working system, you need at least 1 stand, 1 tool and 1 cartridge.
Discover the JBC DME-2B 4 Tool Control Unit at Mektronics Australia – your trusted source for quality tools and equipment!
-
DME 4-Tool Control Unit
-
Nominal power: 200 W
-
Peak power: 150 W per tool
-
Selectable temperature: 90 to 450 ºC / 190 to 840 ºF
-
Idle temp. stability (still air): ±1.5 ºC / ±3 ºF / Meets and exceeds / IPC J-STD-001F
-
Temperature accuracy: ±3 % (using reference cartridge)
-
Temp. adjustment: ±50 ºC / ±90 ºF through station setting menu
-
Tip to ground vol./ resist.: Meets and exceeds / ANSI/ESD S20.20 and IPC J-STD-001F
- Ambient Operating Temp: 10 - 40 ºC / 50 - 104 ºF
Connections
-
USB-A: Firmware Update, Graphics and Profiles, Dino-Lite USB Microscope (models AM2011, AM2111)
-
USB-B: PC Communication
-
RJ12: Fume Extractor/Peripherals/Robot
- Complies with CE standards: ESD safe
Weight and dimensions
-
Control Unit: 232 x 148 x 120 mm / 1.30 kg
- Package: 258 x 328 x 208 mm / 2.85 kg
