JBC 230 V - Hot Air Station Without Extractor Desk
SKU: JBC-JTSE-2QB
JTSE-2QB
DESCRIPTION
Specifications
Includes
Shipping & Delivery

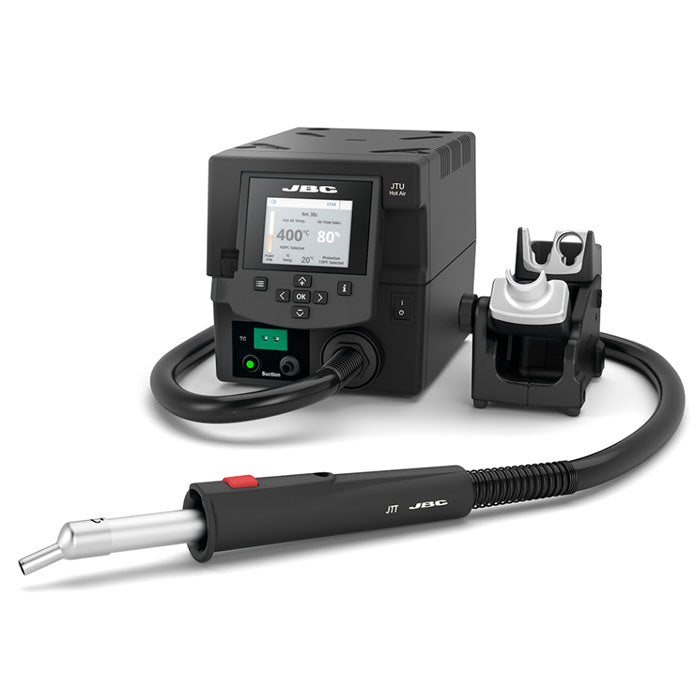

JBC 230 V - Hot Air Station Without Extractor Desk
This is a high powered hot air station to repair all types of SMD quickly and safely, even the biggest QFPs and PLCCs.
Features two work modes -manual or program- to manage efficiently the temperature and the hot air flow.
Using the menu you can personalize over 20 parameters to help manage the soldering process.
It works with the JT-TA heater and features a USB-B connector for software updates.
It comes with the JT-SD Stand that guarantees the Auto-stop function when the tool is at rest.
Discover the JBC 230 V - Hot Air Station Without Extractor Desk at Mektronics Australia – your trusted source for quality tools and equipment!
-
Selectable Temperature: 150 to 450 ºC (300-840 ºF)
-
Air flow: 5 to 50 SLPM
-
Temperature profiles: Design specific thermal profiles to avoid thermal shock during soldering processes. Up to 25 fully configurable soldering profiles can be stored.
-
Operating modes: Heating / Profiles / Cooling
-
Vacuum: 30% / 228 mmHg / 9 inHg
-
ESD Safe
-
Nominal Power: 700W
-
Operating Temp. Range: 10 to 50 ºC / 50 to 120 ºF
Connectivity
-
Type K thermocouple: Can be used both for Control and Protection purposes.
-
USB-B (rear): Software PC
-
USB-A (front): Firmware update, Graphics / Profiles management
-
Robot: RS-232 remote control
-
Pedal: Optional tool control
-
Equipotential bonding: Optional connection to EPA
Dimensions
-
Premium Station: 232 x 148 x 160 mm / 4.10 kg; 9.13 x 5.83 x 6.30 in / 10.86 lb.
-
Package: 444 x 395 x 273 mm / 5.17 kg; 17.48 x 15.55 x 10.74 in / 11.39 lb.
-
Control Unit: Hot Air
-
JTT Heater Hose Set
-
JTS Stand for JTT Heater Hose Set
-
JN2015 Bent Nozzle Ø4 - 18º for JTT
-
JN2012 Bent Nozzle Ø6 - 18º for JTT
-
JN2020 Straight Nozzle Ø8 for JTT
-
PH218 Thermocouple Type K
