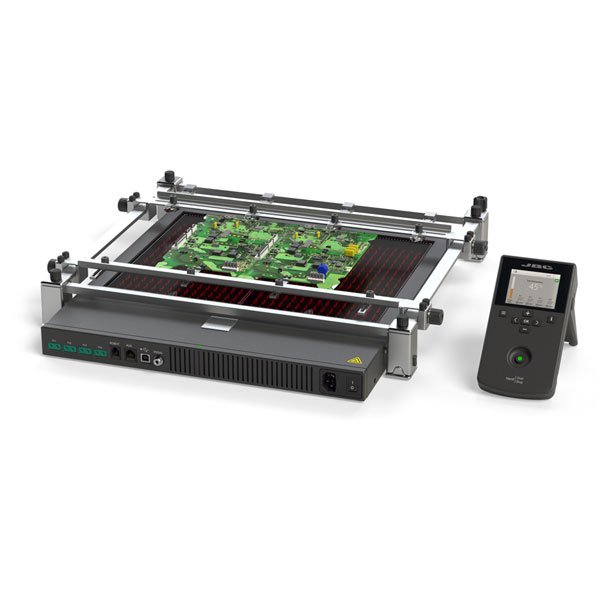

Image for Illustrative Purposes Only
JBC 230V - Convection Preheater Set PHBE-2KA
SKU: JBC-PHBE-2KA
PHBE-2KA
DESCRIPTION
Specifications
Shipping & Delivery
JBC 230V - Convection Preheater Set PHBE-2KA
The PHBE is the best solution for preheating big multilayer PCBAs, and it works with convection technology.
It allows gradual heating up, reducing risk of thermal shock in the substrate and components, and to work with lower temperature on components connected to ground planes.
It features, along with the power and temperature mode, a powerful functionality of profiles to perform rework tasks. Temperature is sensed with an external thermocouple and the heat is autoregulated by the console, capable of storing up to 25 different profiles.
Connecting up to 4 external TCs provides a high-precise close-loop control of the component/PCBA during the heating process. It can also be used to protect a component or a specific area of the PCBA.
It has 2 independent work zones that define a heating area of 180x277 or 360x277 mm (7.1x10.9 or 14.2x10.9 in).
-
1 x Console
-
1 x PHB-SA Convection Preheater Support
-
1 x PH218 Thermocouple Type K
-
1 x PH217 Kapton Tape
Discover the JBC 230V - Convection Preheater Set PHBE-2KA at Mektronics Australia – your trusted source for quality tools and equipment!
-
Selectable Temperature: 50 to 250 ºC / 120 to 482 ºF
-
Heating area: 180 x 277 mm (7.1 x 10.9 in) - 1 zone; 360 x 277 mm (14.2 x 10.9 in) -2 zones
-
Temperature measurement: Thermocouple type K
CONNECTIVITY
-
USB-B (rear): Software PC
-
USB-A (front): Firmware update / Graphics management
-
Robot: RS-232 remote control
-
Aux: Console connection
-
Pedal: Connect a pedal to control the heater.
-
ESD/EOS
-
ESD safe
POWER SUPPLY
-
Maximum power: 1800 W
-
Ambient operating temp: 10 to 50 ºC / 50 to 120 ºF
DIMENSIONS AND WEIGHT
- Heater unit 426 x 444 x 41 mm / 6.9 kg
