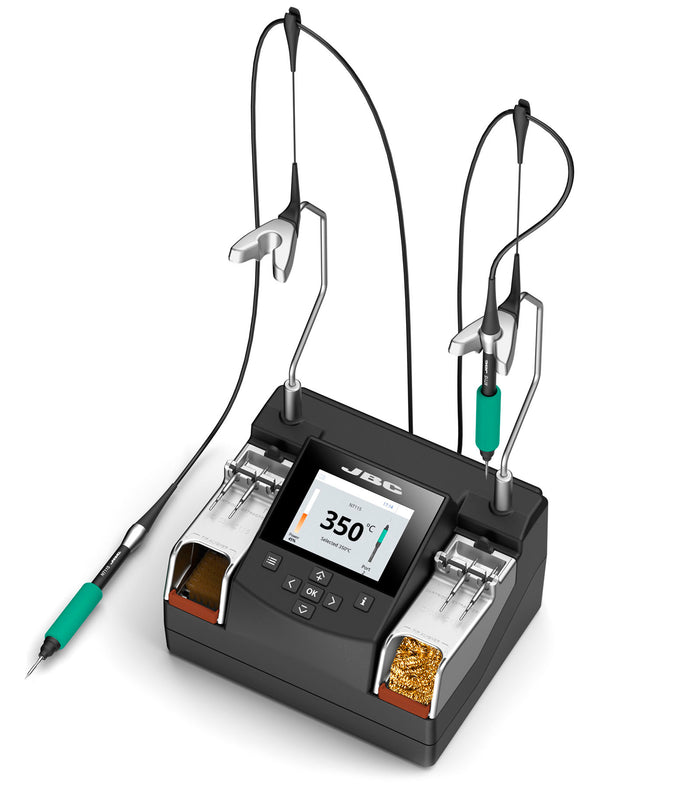

JBC 2 Tools Nano Soldering Station 230V
SKU: JBC-NANE-2C
NANE-2C
DESCRIPTION
Includes
Cartridge Range
Specifications
Shipping & Delivery
JBC 2 Tools Nano Soldering Station 230V
Designed for highest precision applications offering maximum control working under microscope. It provides all the advantages of the JBC Most Efficient Soldering System.
-
Improving the soldering quality thanks to JBC Intelligent Heat Management and, additionally, Sleep & Hibernation Modes that extend tip life till 5 times longer
-
Complete Tip Cleaning System with an integrated wiper and brush
-
Cartridge Holder and JBC Exclusive Cartridge Exchanger, which increases efficiency
-
Connection to JBC Fume Extractor via connector RJ12
-
Connectivity: datas download, remote control for traceability and software updates
-
Two NT115 Nano Handle, which work with our C115 Cartridge Range.
Discover the JBC 2 Tools Nano Soldering Station 230V at Mektronics Australia – your trusted source for quality tools and equipment!
-
1 x Instruction Manual
-
1 x NAE 2-Tool Nano Control Unit
-
2 x NT115 Nano Handle
-
1 x C115101 Conical Ø 0.1
-
1 x C115103 Conical Ø 0.3 S1
-
2 x C115105 Conical Bent Ø 0.3
-
1 x C115107 Conical Ø 0.8
-
1 x C115112 Knife 2.5 x 0.3
-
2 x C115113 Chisel 1 x 0.3
-
1 x P405 Pedal
C115 Cartridge Series - available to purchase HERE
-
Output peak power: 14W per tool
-
Temperature range: 90 - 450 °C / 190 - 840 ºF
-
Temperature accuracy: ±3%
-
ESD safe: Meet ANSI/ESD S20.20-2021
-
Equipotential bonding: Connection to EPA
-
Tip-to-ground resistance: < 2 ohms
-
Tip-to-ground voltage: < 2 mV RMS
-
USB-A: Firmware update, Graphics and profiles
-
USB-B: PC communications
-
FAE / Robot connector: Remote control or FAE Fume Extractor connection
-
Pedal connectors: 1 for each tool
Dimensions & Weight
-
Control Unit: 140 x 170 x 125mm / 2.45kg
-
Package: 280 x 280 x 164mm / 2.94kg
