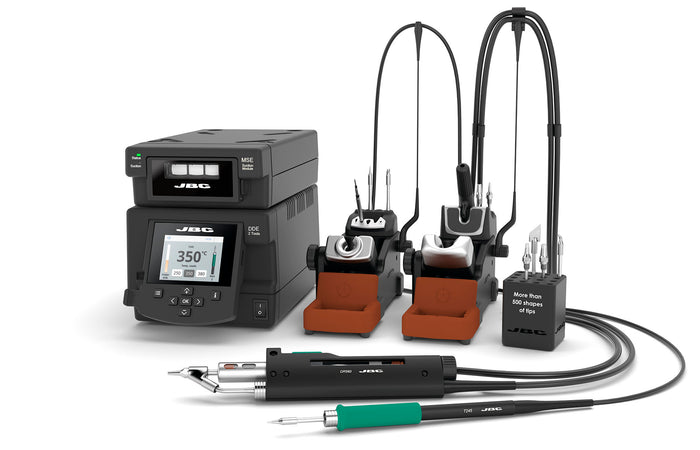

Image for Illustrative Purposes Only
JBC DDSE Station 2-Tool Rework
SKU: JBC-DDSE-2QE
DDSE-2QE
DESCRIPTION
Features
Inclusions
Specifications
Shipping & Delivery
JBC DDSE Station 2-Tool Rework
DDSE Station equipped with MSE Module ensures efficient and precise solder removal thanks to its powerful suction system. It is ideal for SMDs, high-power applications, desoldering through-hole components and removing excess solder after SMD rework.
It provides the highest rework quality thanks to JBC Most Efficient Soldering System, while Intelligent Heat Management helps extend tip life and reduce energy consumption.
Discover the JBC DDSE Station 2-Tool Rework at Mektronics Australia – your trusted source for quality tools and equipment!
-
DDE 2-Tool Control Unit managing up to two tools simultaneously and fully compatible with 10 different JBC Tools, delivering up to 150 W per tool.
-
T245 General Purpose Handle which works with C245 Cartridge Range.
-
DR560 Desoldering Iron which works with C560 Tip Range.
-
MSE Electric Desoldering Module offering exceptional suction power for a complete desoldering process.
-
Nominal power: 370W
-
Peak power: 150 W per tool
-
Selectable temperature: 90 to 450 ºC / 190 to 840 ºF
-
Idle temp. stability (still air): ±1.5ºC / ±3ºF / Meets and exceeds IPC J-STD-001F
-
Vacuum: 85 % / 640 mmHg / 25.4 inHg
-
Flow rate: 35 SLPM
-
Temperature accuracy: ±3% (using reference cartridge)
-
Temp. adjustment: ±50ºC / ±90ºF Through station menu setting
-
Tip-to-ground resistance: <2 ohms
-
Tip-to-ground voltage: <2 mV RMS
-
USB-A: Firmware update, Graphics and profiles
-
USB-B: PC communications
-
FAE / Robot connector: Remote control or FAE Fume Extractor connection
- ESD safe: Meet ANSI/ESD S20.20-2021
Weight and dimensions
-
Control Unit: 232 x 148 x 120mm / 8.40kg / 9.13 x 5.83 x 4.72" / 18.52 lb
-
Package: 425 x 360 x 333mm / 12.92kg / 16.73 x 14.17 x 13.11" / 28.48 lb
