JBC DDSE 2 Tool Rework Station
SKU: JBC-DDSE-2QF
DDSE-2QF
DESCRIPTION
Contents
Specifications
Shipping & Delivery

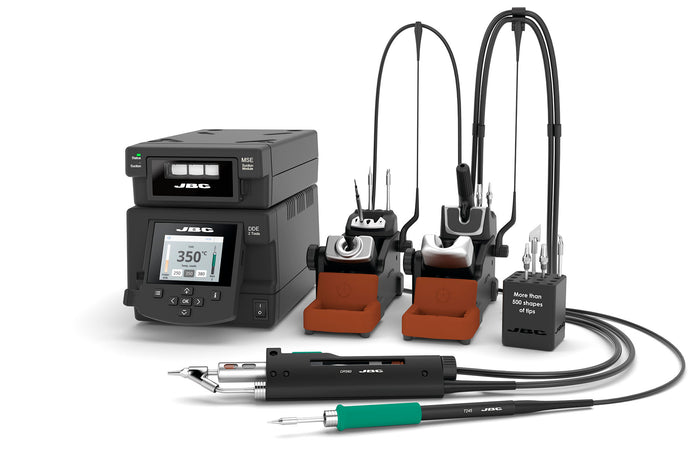

JBC DDSE 2 Tool Rework Station
DDSE Station equipped with MSE Module ensures efficient and precise solder removal thanks to its powerful suction system. It is ideal for SMDs, high-power applications, desoldering through-hole components and removing excess solder after SMD removal.
It provides the highest rework quality thanks to JBC Most Efficient Soldering System, while Intelligent Heat Management helps extend tip life and reduce energy consumption.
Includes:
-
DDE 2-Tool Control Unit managing up to two tools simultaneously and fully compatible with 13 different JBC Tools, delivering up to 150 W per tool.
-
T245 General Purpose Handle which works with C245 Cartridge Range.
-
DR560 Desoldering Iron which works with C560 Tip Range.
-
MSE Electric Desoldering Module offering exceptional suction power for a complete desoldering process.

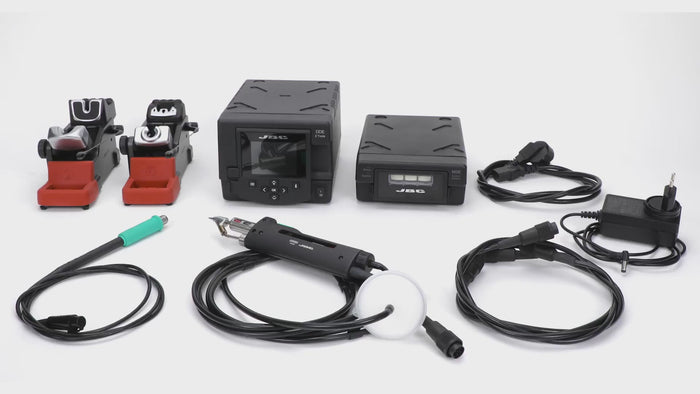

Discover the JBC DDSE 2 Tool Rework Station at Mektronics Australia – your trusted source for quality tools and equipment!
-
DDE 2-Tool Control Unit
-
MSE Electric Desoldering Module for DDE & DME
-
T245 General Purpose Handle (cartridge not included)
-
DR560 Desoldering Iron (C560003 already inserted)
-
ADS Stand for T210 & T245
-
DRS Stand for DR560
-
SCH for Cartridge & Tips Holder
DDE Control Unit
-
Nominal power: 200 W
-
Peak power: 150 W per tool
-
Selectable temperature: 90 to 450 ºC / 190 to 840 ºF
-
Idle temp. stability (still air): ±1.5 ºC / ±3 ºF / Meets and exceeds IPC J-STD-001F
-
Temperature accuracy: ±3 % (using reference cartridge)
-
Temp. adjustment: ±50 ºC / ±90 ºF through station setting menu
-
Tip to ground vol./ resist.: Meets and exceeds ANSI/ESD S20.20 and IPC J-STD-001F
-
Ambient Operating Temp: 10 - 40 ºC / 50 - 104 ºF
Connections
-
USB-A: Firmware Update | Graphics and Profiles | Dino-Lite USB Microscope (models AM2011, AM2111)
-
USB-B: PC Communication
-
RJ12: Fume Extractor/Peripherals/Robot
MSE Module
-
Power: 42 W
-
Vacuum: 85 % / 640 mmHg / 25.4 inHg
-
Flow rate: 35 SLPM
-
Ambient Operating Temp: 10 - 40 °C / 50 - 104 °F
-
Pedal connector: Yes
-
Complies with CE standards
-
ESD safe
Weight and dimensions
-
Control Unit: 232 x 148 x 120 mm / 6.07 kg | 9.13 x 5.83 x 4.72 in / 13.38 lb.
-
Package: 425 x 360 x 433 mm / 10.59 kg | 16.73 x 14.17 x 17.05 in / 23.35 lb.
