JBC DDSD 2-Tool Rework Station with DT530
SKU: JBC-DDSD-2QA
DDSD-2QA
DESCRIPTION
Features
Inclusions
Specifications
Shipping & Delivery

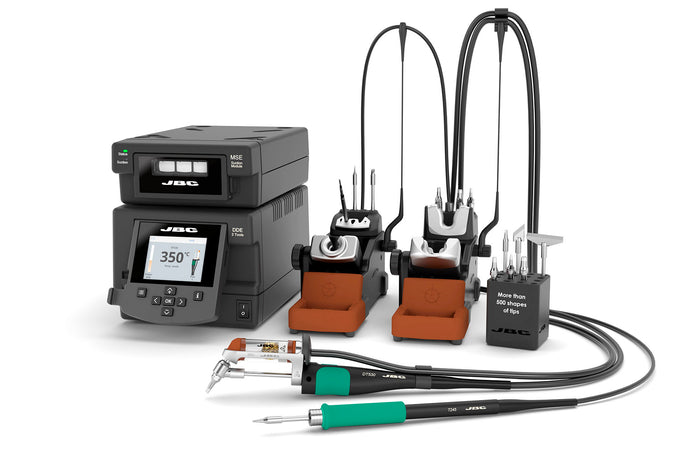

JBC DDSD 2-Tool Rework Station with DT530
DDSD Station provides a versatile solution for SMD and high-power applications, excelling in desoldering through-hole components and removing excess solder after SMD rework. It is ideal for delivering clean, precise results across various soldering tasks.
It provides the best rework quality thanks to JBC Most Efficient Soldering System, with Intelligent Heat Management to extend tip life and reduce energy consumption.
Discover the JBC DDSD 2-Tool Rework Station with DT530 at Mektronics Australia – your trusted source for quality tools and equipment!
-
DDE 2-Tool Control Unit manages up to two tools simultaneously and is fully compatible with 10 different JBC Tools, delivering up to 150 W per tool.
-
T245 General Purpose Handle and DT530 Angled Desoldering Iron.
-
T245 works with C245 Cartridge Range and DT530 with D530 Tip Range.
-
MSE-B Electric Desoldering Module provides exceptional suction power, reaching up to 85% vacuum, ensuring precise and efficient solder removal.
-
Nominal power: 370W
-
Peak power: 150 W per tool
-
Selectable temperature: 90 to 450 ºC / 190 to 840 ºF
-
Idle temp. stability (still air): ±1.5ºC / ±3ºF / Meets and exceeds IPC J-STD-001F
-
Vacuum: 85 % / 640 mmHg / 25.4 inHg
-
Flow rate: 35 SLPM
-
Temperature accuracy: ±3% (using reference cartridge)
-
Temp. adjustment: ±50ºC / ±90ºF Through station menu setting
-
Tip-to-ground resistance: <2 ohms
-
Tip-to-ground voltage: <2 mV RMS
-
USB-A: Firmware update, Graphics and profiles
-
USB-B: PC communications
-
FAE / Robot connector: Remote control or FAE Fume Extractor connection
- ESD safe: Meet ANSI/ESD S20.20-2021
Weight and dimensions
-
Control Unit: 232 x 148 x 120mm / 8.96kg / 9.13 x 5.83 x 4.72" / 19.74 lb
- Package: 495 x 415 x 395mm / 12.04kg / 19.49 x 16.34 x 15.55" / 26.54 lb
