Hazet 9x12mm Insert Square Hollow Torque Wrench 1-10Nm ±6% 6391-10

SKU: HAZ6391-10

6391-10

$431.61

EX. GST
$474.77
INC GST
Out of Stock: Available to Order

own it from $10 a week with Group 2 Copy Created with Sketch.

DESCRIPTION
Specifications
Shipping & Delivery

Hazet 9x12mm Insert Square Hollow Torque Wrench 1-10Nm ±6% 6391-10

 Application:

  • Especially suitable for industrial application and use in series production

  • Particularly easy to use thanks to short design

  • Universal application thanks to connection for insert tools

  • Accuracy ± 2% (6391-10: 6%)  ( of the preset value (in direction of actuation)

  • Can be used for right-hand and left-hand threads by turning the insert tool

  • Plug connection, for holding insert tools

  • Permanently adjustable value

  • Especially suitable for application in industrial series fabrication

  • Adjusting the desired torque value with adjustment wrench 6399 in conjunction with HAZET torque tester 7901E ∙ 7902E ∙ 7903E or another suitable device.

  • All wrenches of this series (HAZET 6391-6392) are without an adjusting scale

  • With calibration certificate and serial number

  • Made in Germany

Discover the Hazet 9x12mm Insert Square Hollow Torque Wrench 1-10Nm ±6% 6391-10 at Mektronics Australia – your trusted source for quality tools and equipment!

Output

9 x 12 mm insert square, hollow
Tolerance 6 %
Tightening torque minimum 1 Nm

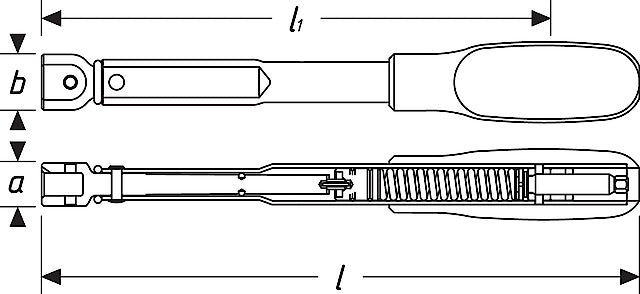

Head Width b 22 mm
Tightening torque maximum 10 Nm
Head Thickness a 17 mm
Standard

DIN EN ISO 6789-2:2017
Inside micrometre of the adjusting tool l2 19.5 mm
Length 124 mm
Actuating force min.-max. kg 0.8 – 8.4
Effective torque wrench length I1 mm 102 mm
