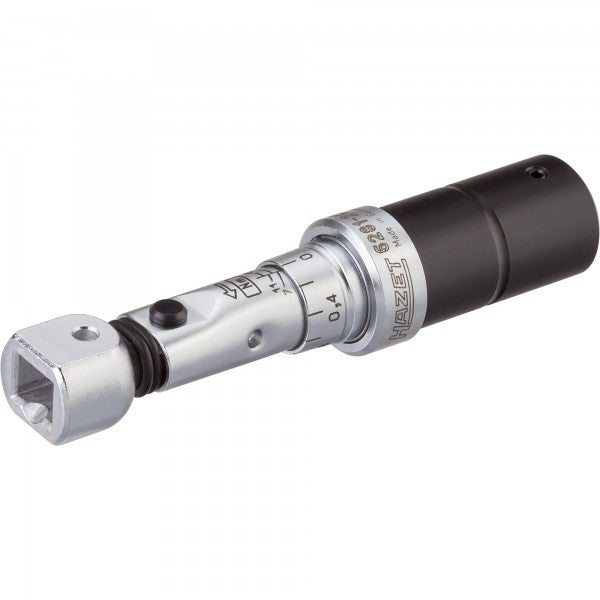

Hazet Torque Wrench 6281-2CTCAL 5-13Nm Tolerance 4% Insert Square 9 x 12mm
SKU: HAZ6281-2CTCAL
6281-2CTCAL
DESCRIPTION
Application
Shipping & Delivery
Hazet Torque Wrench 6281-2CTCAL 5-13Nm Tolerance 4% Insert Square 9 x 12mm
Application:
Regulation of the control valve at the gas tank of VW Up! and Caddy model years 2012 → (adjustment is necessary after installation or removal)
- Extra short construction for areas with restricted access
- Torque wrench with DAkkS calibration certificate

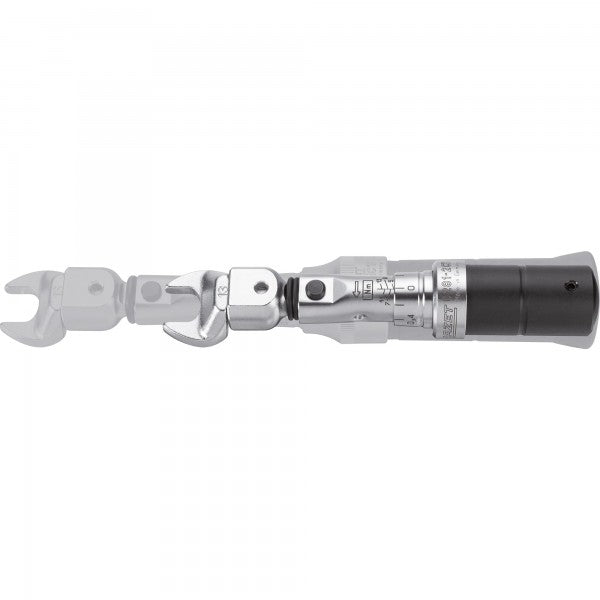

- Plug connection to hold insert tools
-
Accuracy ± 4 % of the scale value (in direction of actuation)
Can be used for right-hand and left-hand threads by turning the insert tool - Safety:
- Haptic (close-gap release)
- Audible ("click" sound)
- With calibration certificate and serial number
- Easy and safe adjustment of the desired torque value by turning the handle
- DIN EN ISO 6789-2:2017
- Made in Germany
- Output: Insert square 9 x 12 mm
- Dimensions / length: 125.4 mm
- Nm min-max: 5 – 13 Nm
- Tolerance: 4 %
- Scale Graduation (Nm): 0.2 Nm
- Effective torque wrench length min.-max. I1 mm: 116.50 – 112.50 Nm
- Actuating force min.-max. kg: 4.4 – 11.8 kg

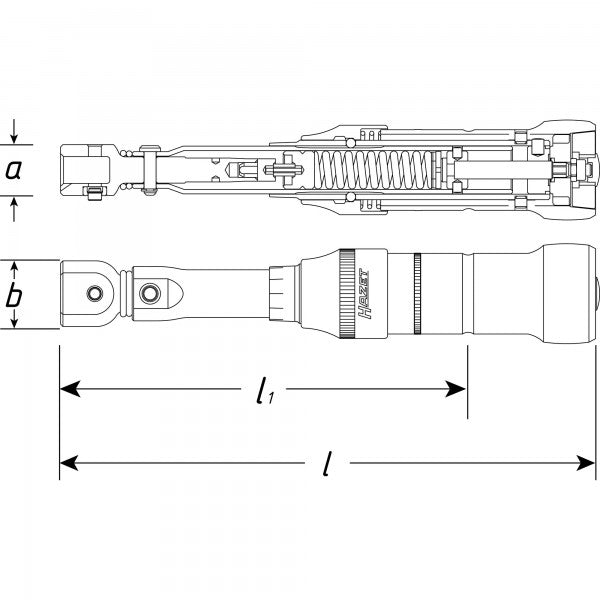

- Inside micrometre of the adjusting tool l2: 17.5 mm
- Head Thickness a: 17 mm
- Head Width b: 22 mm
- No more turning back: Continuous long-term tests on the 5000 series and 6000 series of HAZET torque wrenches have demonstrated that turning them back to the smallest scale value is not required
Discover the Hazet Torque Wrench 6281-2CTCAL 5-13Nm Tolerance 4% Insert Square 9 x 12mm at Mektronics Australia – your trusted source for quality tools and equipment!
Regulation of the control valve at the gas tank of VW Up! and Caddy model years 2012 → (adjustment is necessary after installation or removal)
