Hazet Thermal Camera 1992N-1

SKU: HAZ1992N-1

1992N-1

$833.63

EX. GST
$916.99
INC GST
Out of stock: Available to order

own it from $10 a week with Group 2 Copy Created with Sketch.

DESCRIPTION
Specifications
Shipping & Delivery

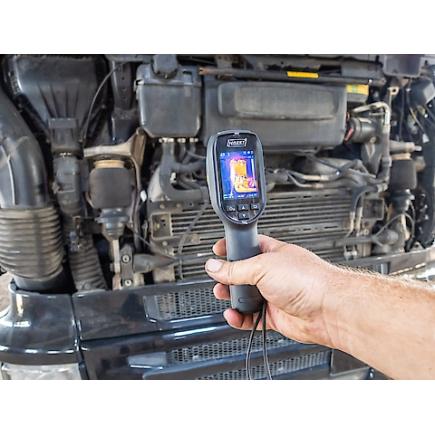

Hazet Thermal Camera 1992N-1

  • Building diagnostics ∙ electrical installation ∙ sanitary ∙ air-conditioning and heating technology and inspection of engine compartment ∙ brake system ∙ cooling and heating system

  • Automatic hot, cold and central point measurement

  • Focus IR (infrared) for improved resolution and quality

  • Temperature:

    • Measuring range: -20° C bis 550° C

    • Accuracy up to ±2° C (±3.6° F) or ±2 % of the measuring value

  • Measuring range: adjustable distance 0.1 – 50 m

  • Thermal (or IR) resolution: 160 x 120 pixels

  • Additional camera for creating visual images (640 x 480 pixels)

  • Save visual and thermal images simultaneously

  • 50° angle lens

  • 6 colour palettes for optimum diagnostics:

    • Black Hot

    • White Hot

    • Rainbow

    • Ironbow

    • Fusion

    • Red

  • Laser pointer to localise the measuring points

  • Screen:

    • Diagonal: 2.4 inch LCD screen

    • Resolution: 320 x 240 pixels

    • Refresh rate: 25 Hz

  • Rechargeable battery:

    • Runtime: up to 8 hours

    • Continuous operation of the camera for up to 8 hours (using the automatic shut-off (2 ∙ 10 ∙ 20 ∙ min))

    • Integrated rechargeable battery: 3350 mAh

    • Charging time: 3 hours (with 5 Volt 2 Ampere charger)

  • Image sensor: Vanadium oxide uncooled focal plane arrays (FPA)

  • Operating air humidity max: 95%

  • Operating height max: 2000 metres above sea level

  • Integrated 4 GB flash memory (up to 18000 images)

  • Field of view: 50° x 50°

  • IR resolution 96 x 96 NETD > 50 mK (@25° C, F#=1.0)

  • Frame threaded nipple: UNC 1/4 inch-20

  • Hand strap

Discover the Hazet Thermal Camera 1992N-1 at Mektronics Australia – your trusted source for quality tools and equipment!

Power supply

USB cable (USB C)
Length 117 mm
Type of protection (IP)

IP54
Operating temperature range -10°C – 50°C
Battery name

internal rechargeable battery
Number of batteries 1
Batteries/Rechargeable batteries required for operation Yes
