Fully articulated 3.9 mm ⌀ probe – hard-to-reach areas are now much easier to access
Photo and video recording via app or control via operating elements of the borescope

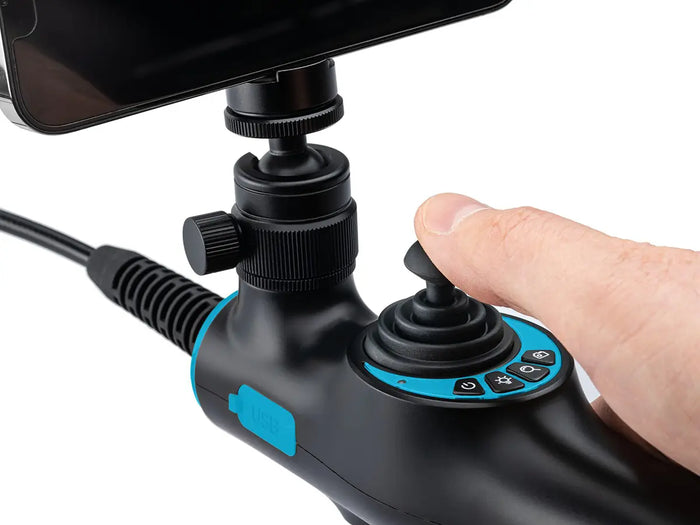

Joystick control of the camera probe via operating elements on the basic unit
Wired connection of a smartphone as a display (Lightning ∙ USB-C)
Image memory dependent on smartphone memory
Removable Li-ion battery (1 x type 18650 – 3350 mAh) without additional tools
Battery life: ≥ 2 hours
Focus range (DOF): 5 – 100 mm
Viewing angle (FOV): 100°
Temperature warning alarm (app) and automatic switch-off if the maximum permissible camera temperature is exceeded

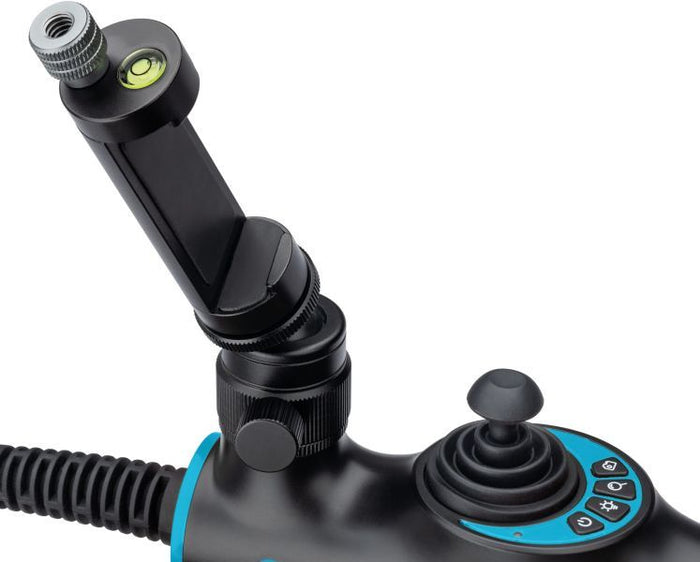

Robust, swivelling and adjustable smartphone holder (span: 58 – 100 mm)
Additional magnification of the image using the smartphone display (drag)

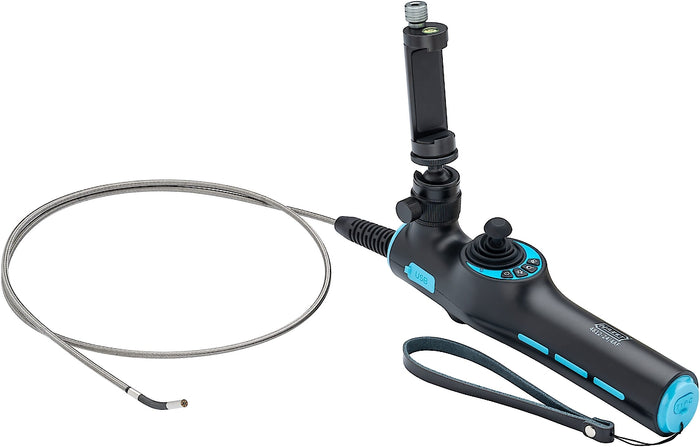

Discover the Hazet HD Video Boresope Set with 360° Swivelling Probe ⌀ 3.9mm 4812-24/4AF at Mektronics Australia – your trusted source for quality tools and equipment!
Diagnosis and documentation of cavities for damage assessment
4-piece set in soft case with moulded insert
Data cable USB-A to Lightning (iOS legacy) ∙ length: 0.3 m
Data cable USB-A to USB-C (Android, current iOS etc.) ∙ length: 0.3 m
Data cable USB-A to USB Micro (Android legacy)∙ length: 0.3 m
Charging cable USB-A to USB-C ∙ length: 1.0 m
Basic unit and HD probe
USB-C charging port
Four-language smartphone app for Android and IOS
Temperature display of the camera
Five-fold zoom (with display of the zoom factor in the app)
Rotation of the image in 90° increments
Adding a timestamp
Probe length: 1 m
IP protection rating: IP67
Articulation of the camera probe: Axial 180° ∙ Radial 360°
Camera light: LED with white light 6000 to 8000 lux
Three-stage brightness setting
Temperature range: -20° C to 70° C
Wear-resistant, elastic metal hose (stainless steel)
Photo image format: Jpeg: resolution: 1280 x 720 ∙ 640 x 480 pixels
Video format MP4: resolution: 1280 x 720 ∙ 640 x 480 pixels
With handle and sturdy smartphone holder
IP protection rating: IP54
Temperature range: -10° C to 50° C
Operating humidity of up to 90 % (non-condensing)
Weight (with battery ∙ without smartphone): 430 g
Tripod mounting thread in the basic unit
Buttons for On/Off switch ∙ Light control ∙ Zoom ∙ Photo ∙ Video start on the basic unit
USB-C data and charging socket
Weight complete (with bag and cable set): 1000 g
Soft case size: 370 x 215 x 750 mm
