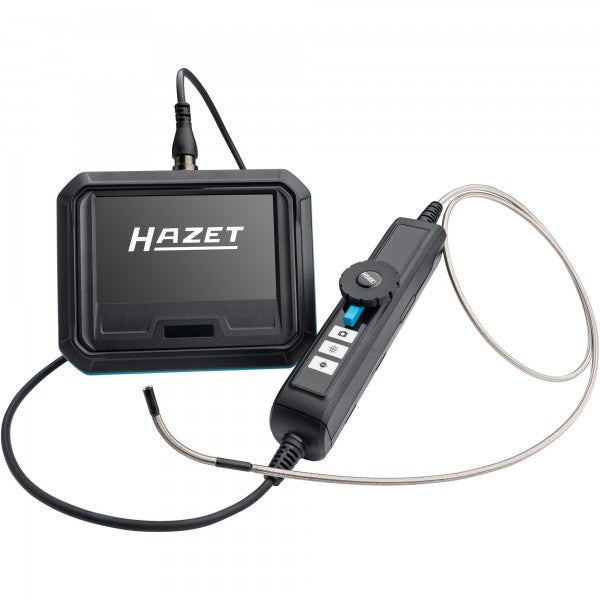

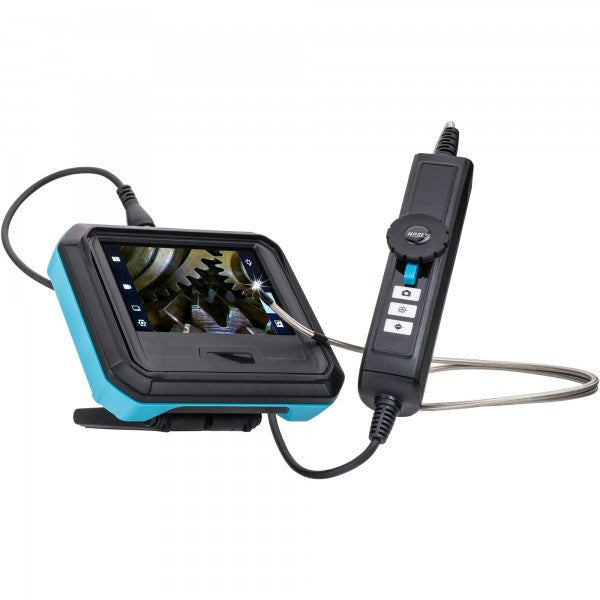

Hazet 5 Pce Borescope Set Swivelling Probe 180° ⌀ 4.5mm 4812-21/5AF
SKU: HAZ4812-21/5AF
4812-21/5AF
DESCRIPTION
Shipping & Delivery
Hazet 5 Pce Borescope Set Swivelling Probe 180° ⌀ 4.5mm 4812-21/5AF
- 4.5 mm ⌀ micro lens
- High mobility due to bilateral articulation
- Full swivel up to 180° on both sides enables e.g. a real reverse view onto valves in the cylinder head
- Bending radius only approx. 38 mm (-30% compared to conventional designs)
- Front camera
- Focus range: 10 to 100 mm
- Focus angle: 90°
- 5-way LED luminous source
Video probe:
- Improved accuracy of detail
- Image resolution 1024 x 768 pixels
- Compression format: H.264
- Operating temperature: -10°C up to 60 °C
- Protection rating probe: IP67 (when connected)
- 1 m probe cable

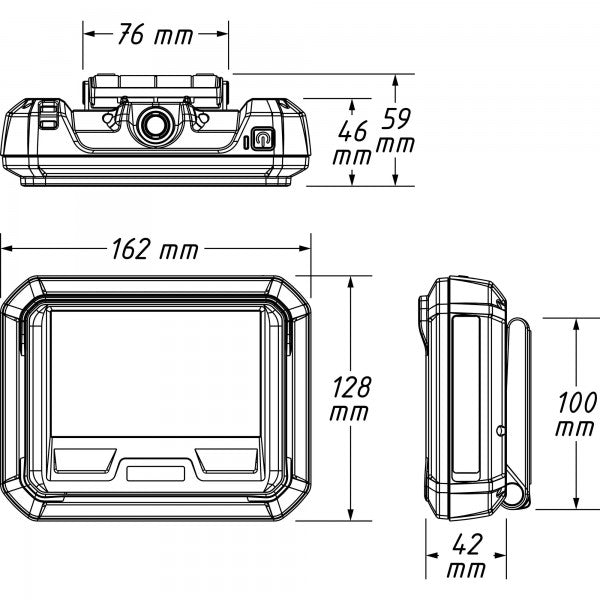

Basic unit:
- Compact design
- Easy to handle

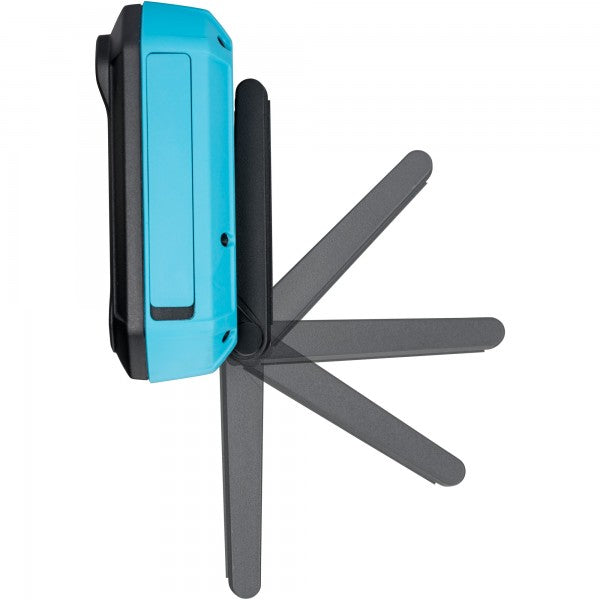

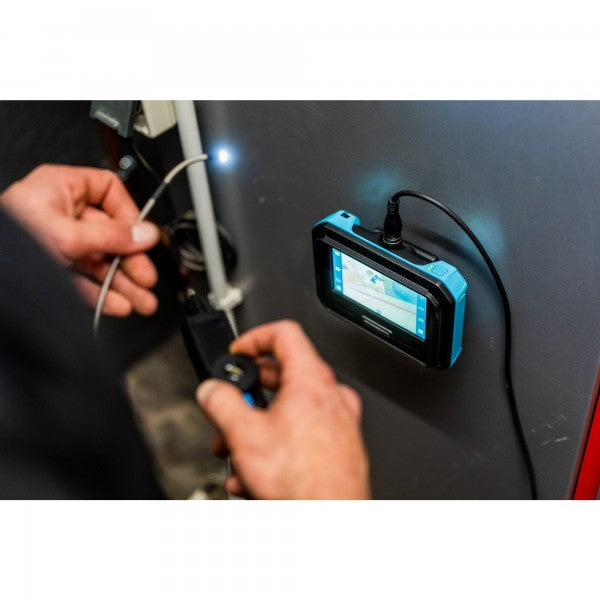

- Swivelling magnetic base, 180° adjustable
- 127 mm (5 inch) touch display, readable in sunlight
- Display resolution 800x480 pixels
- 8-level brightness setting (5 + 3 boost)
- Zoom: 3-step
- Display of battery capacity
- Timestamp can be shown
- Record videos (MOV format) and photos (JPEG format)
- 32 GB SD memory card included in delivery
- Mirroring of the camera image
- Negative display of the camera image
- Designation of photos

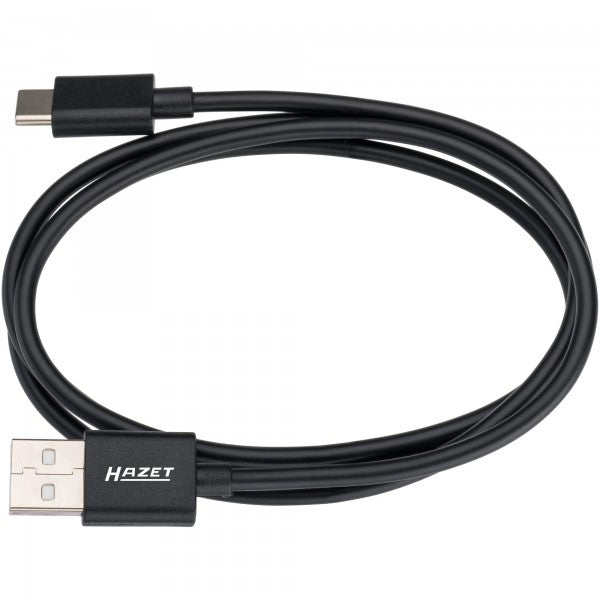

- Data transfer: USB-C (USB-C for USB-A cable included in the set)
- HDMI port for video output
- Rechargeable battery: li-ion battery
- Operating time when fully charged 4 hours
- Charging time 3.5 hours

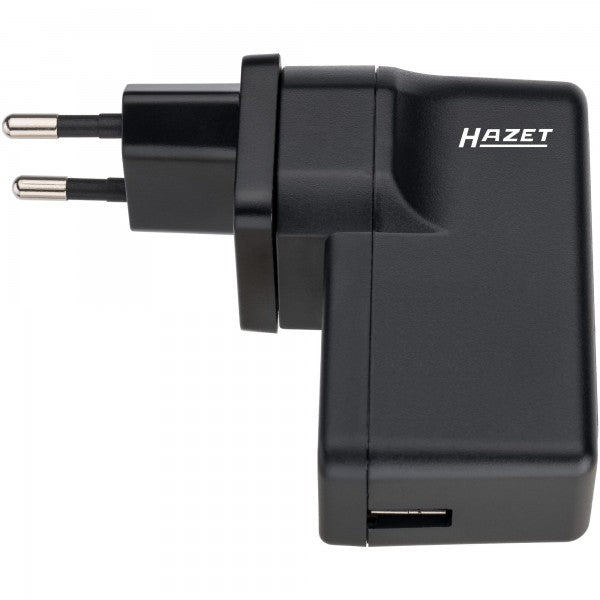

- Charger: USB charging adapter DC-5 V / 3 A
- Operating temperature: 0°C up to 45 °C
- Operating humidity of up to 90 % (non-condensing)
- IP protection rating (basic unit): IP54
- IP protection rating with probe connected: IP67

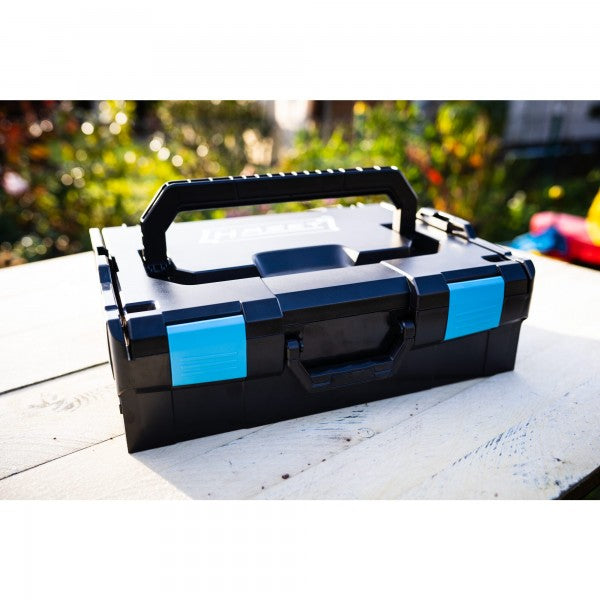

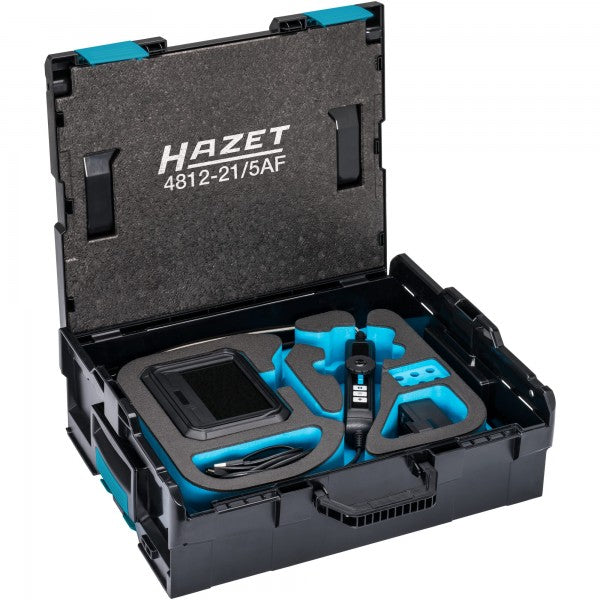

- L-Boxx 190 L-136
- Number of tools: 5
Discover the Hazet 5 Pce Borescope Set Swivelling Probe 180° ⌀ 4.5mm 4812-21/5AF at Mektronics Australia – your trusted source for quality tools and equipment!
