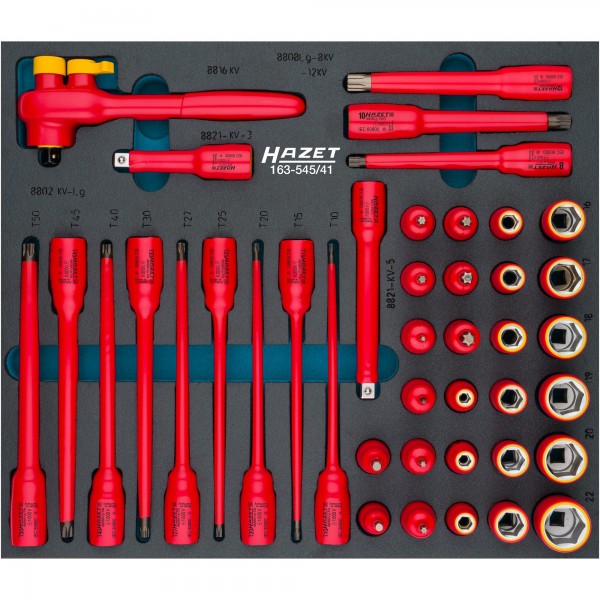

Hazet 41Pce 3/8" Drive VDE Socket Set 163-545/41 Modular Insert Tray

SKU: HAZ163-545/41

163-545/41

$2,244.16

EX. GST
$2,468.58
INC GST
Out of Stock: Available to Order

own it from $10 a week with Group 2 Copy Created with Sketch.

DESCRIPTION
Inclusions
Specifications
Shipping & Delivery

Hazet 41Pce 3/8" Drive VDE Socket Set 163-545/41 Modular Insert Tray

  • HAZET Safety-Insert-System (SIS)

  • For HAZET Tool trolley Assistent with drawer depth of 398 mm:

  • 173 ∙ 179 ∙ 179N ∙ 179NX ∙ 179W ∙ 179NW ∙ 179BIG-1 ∙ 179XL ∙ 179NXL ∙ 179XXL ∙ 179NXXL ∙ 179AXXL ∙ 179TXXL ∙ 180

  • Surface: with protective insulation

  • IEC 60900:2018

  • Drive: Square, hollow 10 mm (3/8 inch)

  • Output: Outside hexagon traction profile, Inside TORX® profile, Inside hexagon profile, Internal serration profile XZN

  • Wrench size: ∙ 5 – 22 ∙ M8 – M12 ∙ T10 – T50

  • Dimensions / length: 392 mm x 344 mm

  • Protective insulation up to 1000 V

  • For manual operation

  • Order system size: 2/3+ (344 x 392 mm)

  • HAZET Safety-Insert-System (SIS)

  • Perfect order system - all tools are snugly embedded

  • Fast, integrated completeness check – missing tools are noticed immediately

  • Unlimited combination options

  • Suitable for all HAZET tool trolleys Tool trolley Assistent with drawers

  • For tool trolleys Tool trolley Assistent 173, 179 (XL-XXL) and 180, we recommend usage of the soft foam inserts 163-522x40 or 163-522x50

  • Number of tools: 41

Discover the Hazet 41Pce 3/8" Drive VDE Socket Set 163-545/41 Modular Insert Tray at Mektronics Australia – your trusted source for quality tools and equipment!


Article no.
8801K-5KV 8801K-5KV Screwdriver socket ∙ with protective insulation Square, hollow 3/8 inch (10 mm) ∙ Inside hexagon profile ∙ 5 mm
8808LG-8KV 8808LG-8KV Screwdriver socket ∙ with protective insulation Square, hollow 3/8 inch (10 mm) ∙ Internal serration profile XZN ∙ M8
8802KV-LG-T10 8802KV-LG-T10 Screwdriver socket ∙ with protective insulation Square, hollow 3/8 inch (10 mm) ∙ Inside TORX® profile ∙ T10
8821KV-3 8821KV-3 Extension ∙ with protective insulation Square, hollow 3/8 inch (10 mm) ∙ Square, solid 3/8 inch (10 mm) ∙ 90 mm
880KV-6 880KV-6 Socket ∙ hexagon ∙ with protective insulation Square, hollow 3/8 inch (10 mm) ∙ Outside hexagon traction profile ∙ 6 mm
8802KV-T10 8802KV-T10 Screwdriver socket ∙ with protective insulation Square, hollow 3/8 inch (10 mm) ∙ Inside TORX® profile ∙ T10
880KV-7 880KV-7 Socket ∙ hexagon ∙ with protective insulation Square, hollow 3/8 inch (10 mm) ∙ Outside hexagon traction profile ∙ 7 mm
880KV-8 880KV-8 Socket ∙ hexagon ∙ with protective insulation Square, hollow 3/8 inch (10 mm) ∙ Outside hexagon traction profile ∙ 8 mm
8816KV 8816KV Reversible ratchet ∙ with protective insulation Square, solid 3/8 inch (10 mm) ∙ 194 mm
8802KV-LG-T15 8802KV-LG-T15 Screwdriver socket ∙ with protective insulation Square, hollow 3/8 inch (10 mm) ∙ Inside TORX® profile ∙ T15
8801K-6KV 8801K-6KV Screwdriver socket ∙ with protective insulation Square, hollow 3/8 inch (10 mm) ∙ Inside hexagon profile ∙ 6 mm
8802KV-T15 8802KV-T15 Screwdriver socket ∙ with protective insulation Square, hollow 3/8 inch (10 mm) ∙ Inside TORX® profile ∙ T15
880KV-9 880KV-9 Socket ∙ hexagon ∙ with protective insulation Square, hollow 3/8 inch (10 mm) ∙ Outside hexagon traction profile ∙ 9 mm
880KV-10 880KV-10 Socket ∙ hexagon ∙ with protective insulation Square, hollow 3/8 inch (10 mm) ∙ Outside hexagon traction profile ∙ 10 mm
8802KV-LG-T20 8802KV-LG-T20 Screwdriver socket ∙ with protective insulation Square, hollow 3/8 inch (10 mm) ∙ Inside TORX® profile ∙ T20
880KV-11 880KV-11 Socket ∙ hexagon ∙ with protective insulation Square, hollow 3/8 inch (10 mm) ∙ Outside hexagon traction profile ∙ 11 mm
8821KV-5 8821KV-5 Extension ∙ with protective insulation Square, hollow 3/8 inch (10 mm) ∙ Square, solid 3/8 inch (10 mm) ∙ 142 mm
8802KV-T20 8802KV-T20 Screwdriver socket ∙ with protective insulation Square, hollow 3/8 inch (10 mm) ∙ Inside TORX® profile ∙ T20
8808LG-10KV 8808LG-10KV Screwdriver socket ∙ with protective insulation Square, hollow 3/8 inch (10 mm) ∙ Internal serration profile XZN ∙ M10
880KV-12 880KV-12 Socket ∙ hexagon ∙ with protective insulation Square, hollow 3/8 inch (10 mm) ∙ Outside hexagon traction profile ∙ 12 mm
880KV-13 880KV-13 Socket ∙ hexagon ∙ with protective insulation Square, hollow 3/8 inch (10 mm) ∙ Outside hexagon traction profile ∙ 13 mm
8802KV-LG-T25 8802KV-LG-T25 Screwdriver socket ∙ with protective insulation Square, hollow 3/8 inch (10 mm) ∙ Inside TORX® profile ∙ T25
8802KV-T25 8802KV-T25 Screwdriver socket ∙ with protective insulation Square, hollow 3/8 inch (10 mm) ∙ Inside TORX® profile ∙ T25
880KV-14 880KV-14 Socket ∙ hexagon ∙ with protective insulation Square, hollow 3/8 inch (10 mm) ∙ Outside hexagon traction profile ∙ 14 mm
8802KV-T27 8802KV-T27 Screwdriver socket ∙ with protective insulation Square, hollow 3/8 inch (10 mm) ∙ Inside TORX® profile ∙ T27
880KV-16 880KV-16 Socket ∙ hexagon ∙ with protective insulation Square, hollow 3/8 inch (10 mm) ∙ Outside hexagon traction profile ∙ 16 mm
880KV-17 880KV-17 Socket ∙ hexagon ∙ with protective insulation Square, hollow 3/8 inch (10 mm) ∙ Outside hexagon traction profile ∙ 17 mm
8808LG-12KV 8808LG-12KV Screwdriver socket ∙ with protective insulation Square, hollow 3/8 inch (10 mm) ∙ Internal serration profile XZN ∙ M12
8802KV-LG-T30 8802KV-LG-T30 Screwdriver socket ∙ with protective insulation Square, hollow 3/8 inch (10 mm) ∙ Inside TORX® profile ∙ T30
8802KV-T30 8802KV-T30 Screwdriver socket ∙ with protective insulation Square, hollow 3/8 inch (10 mm) ∙ Inside TORX® profile ∙ T30
880KV-18 880KV-18 Socket ∙ hexagon ∙ with protective insulation Square, hollow 3/8 inch (10 mm) ∙ Outside hexagon traction profile ∙ 18 mm
880KV-19 880KV-19 Socket ∙ hexagon ∙ with protective insulation Square, hollow 3/8 inch (10 mm) ∙ Outside hexagon traction profile ∙ 19 mm
880KV-20 880KV-20 Socket ∙ hexagon ∙ with protective insulation Square, hollow 3/8 inch (10 mm) ∙ Outside hexagon traction profile ∙ 20 mm
880KV-22 880KV-22 Socket ∙ hexagon ∙ with protective insulation Square, hollow 3/8 inch (10 mm) ∙ Outside hexagon traction profile ∙ 22 mm
8802KV-T40 8802KV-T40 Screwdriver socket ∙ with protective insulation Square, hollow 3/8 inch (10 mm) ∙ Inside TORX® profile ∙ T40
8802KV-LG-T40 8802KV-LG-T40 Screwdriver socket ∙ with protective insulation Square, hollow 3/8 inch (10 mm) ∙ Inside TORX® profile ∙ T40
8802KV-T45 8802KV-T45 Screwdriver socket ∙ with protective insulation Square, hollow 3/8 inch (10 mm) ∙ Inside TORX® profile ∙ T45
8802KV-LG-T45 8802KV-LG-T45 Screwdriver socket ∙ with protective insulation Square, hollow 3/8 inch (10 mm) ∙ Inside TORX® profile ∙ T45
8802KV-LG-T50 8802KV-LG-T50 Screwdriver socket ∙ with protective insulation Square, hollow 3/8 inch (10 mm) ∙ Inside TORX® profile ∙ T50
8802KV-T50 8802KV-T50 Screwdriver socket ∙ with protective insulation Square, hollow 3/8 inch (10 mm) ∙ Inside TORX® profile ∙ T50



  • Width: 344 mm

  • Manual / impact operation: For manual operation

  • Number of tools: 41

  • Standard: IEC 60900:2018

  • Surface: with protective insulation

  • Plastic drawer insert size: 2/3+ (344 x 392 mm)

  • Dimensions / length: 392 mm x 344 mm

  • Protective insulation: Protective insulation up to 1000 V

  • Wrench size: 5 – 22 ∙ M8 – M12 ∙ T10 – T50
