Image for Illustrative Purposes Only

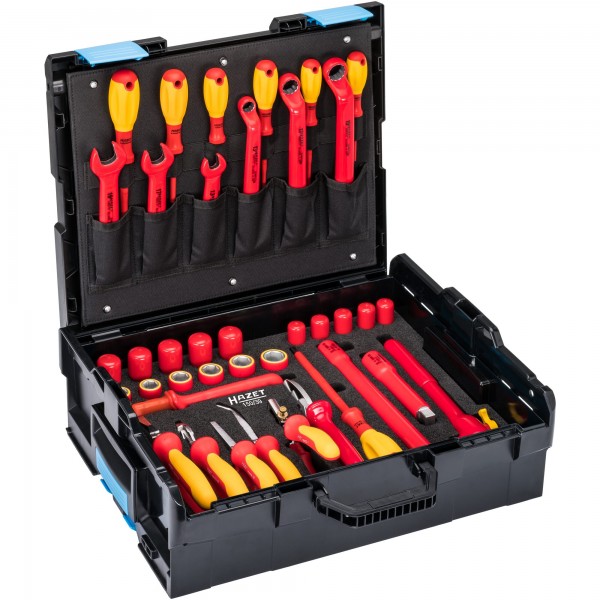

Hazet 39 Pce 1/2" VDE Tool Set 150/39
SKU: HAZ150/39
150/39
DESCRIPTION
Contents
Shipping & Delivery
Hazet 39 Pce 1/2" VDE Tool Set 150/39
Application:
Work on high-voltage systems
-

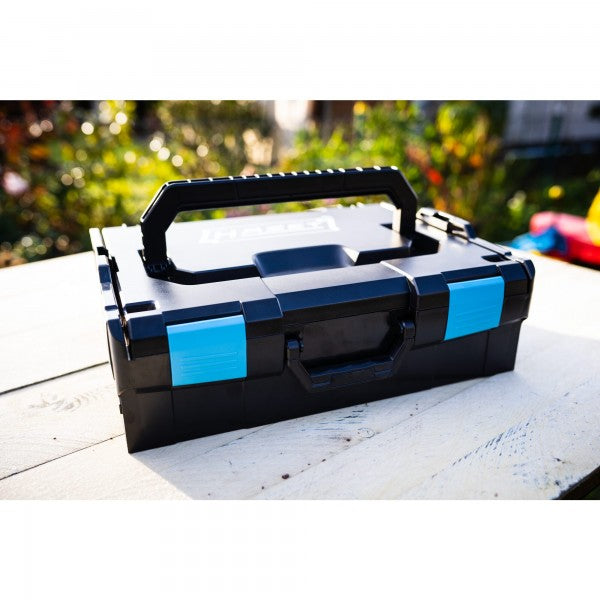

In HAZET L-Boxx – all tools ready to hand
-

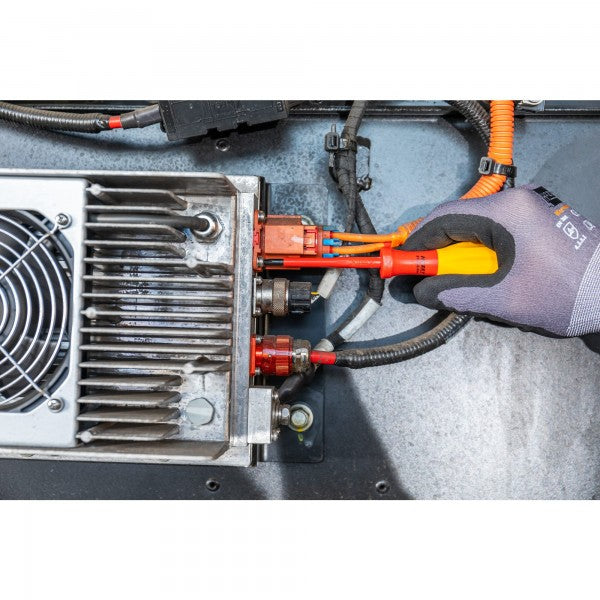

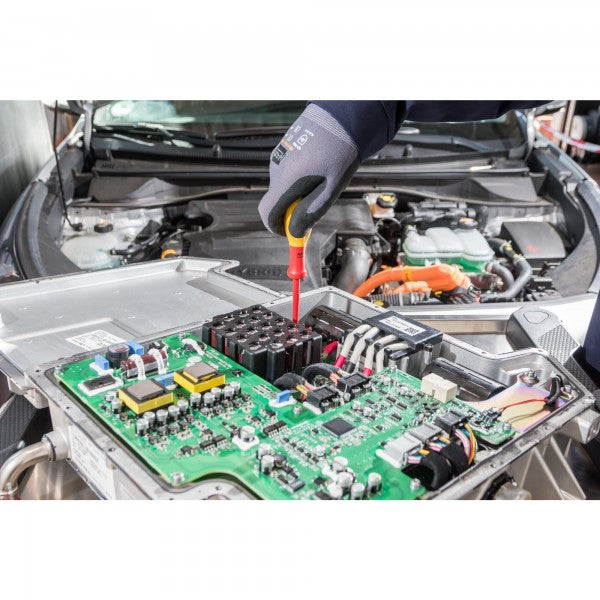

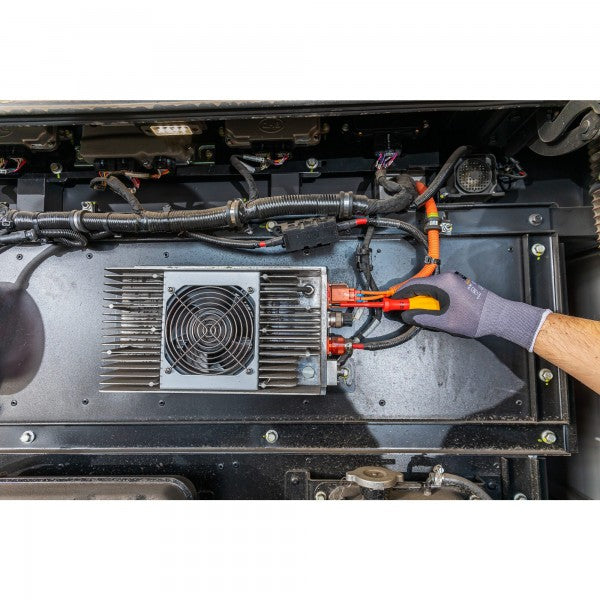

Operation of live components such as batteries, capacitors or distributors
-
The use of two extensions with protective insulation enables simple and safe installation and removal of e.g. the battery
-
Highest level of safety through constant quality control of the tools
-

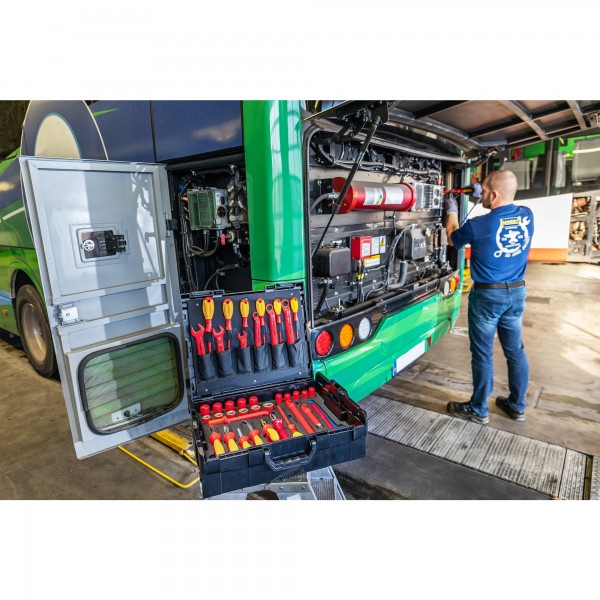

For electric lorries from e.g. MERCEDES-BENZ ∙ MAN ∙ DAF ∙ RENAULT ∙ SCANIA ∙ Volvo as well as electric city buses such as e.g. MERCEDES-BENZ ∙ MAN ∙ VDL ∙ IVECO ∙ SOLARIS ∙ Volvo ∙ SCANIA ∙ BYD ∙ SILEO ∙ LIKKER ∙ COBUS ∙ MELLOR ∙ KARSAN ∙ IRIZAR ∙ EBUSCO ∙ TEMSA ∙ EURABUS ∙ EASYMILE ∙ NAVJA ∙ LOCAL MOTORS ∙ HEULIEZ
-
Surface: with protective insulation
-
IEC 60900:2018
-
Drive: Square, hollow 12.5 mm (1/2")
-
Output: Outside hexagon traction profile, Outside 12-point profile, Outside hexagon profile, Slot profile, Cross recess profile PH
-
Wrench size: ∙ 0,4 x 2,5 – 0,8 x 4 ∙ 13 – 19 ∙ PH1 – PH3
-
Dimensions / length: 445 mm x 358 mm x 152 mm
-
Protective insulation up to 1000 V
-
Number of tools: 39
Discover the Hazet 39 Pce 1/2" VDE Tool Set 150/39 at Mektronics Australia – your trusted source for quality tools and equipment!
| Article no. | Version | |
|---|---|---|
| 196V-10/5 | End caps with self clamping ∙ 1000 V Number of tools: 5 | |
| 196V-20/5 | End caps with self clamping ∙ 1000 V Number of tools: 5 | |
| 810VDE-25 | Screwdriver for electricians ∙ with protective insulation Slot profile ∙ 0.4 x 2.5 mm | |
| 917KV-5 | Extension ∙ with protective insulation Square, hollow 1/2 inch (12.5 mm) ∙ Square, solid 1/2 inch (12.5 mm) | |
| 1804VDE-33 | Cable shears ∙ with protective insulation | |
| 810VDE-PH1 | Screwdriver for electricians ∙ with protective insulation Cross recess profile PH ∙ PH1 | |
| 900KV-13 | Socket ∙ hexagon ∙ with protective insulation Square, hollow 1/2 inch (12.5 mm) ∙ Outside hexagon traction profile ∙ 13 mm | |
| 900KV-14 | Socket ∙ hexagon ∙ with protective insulation Square, hollow 1/2 inch (12.5 mm) ∙ Outside hexagon traction profile ∙ 14 mm | |
| 810VDE-PH2 | Screwdriver for electricians ∙ with protective insulation Cross recess profile PH ∙ PH2 | |
| 810VDE-30 | Screwdriver for electricians ∙ with protective insulation Slot profile ∙ 0.5 x 3 mm | |
| 918KV-10 | Extension ∙ with protective insulation Square, hollow 1/2 inch (12.5 mm) ∙ Square, solid 1/2 inch (12.5 mm) | |
| 900KV-15 | Socket ∙ hexagon ∙ with protective insulation Square, hollow 1/2 inch (12.5 mm) ∙ Outside hexagon traction profile ∙ 15 mm | |
| 900KV-16 | Socket ∙ hexagon ∙ with protective insulation Square, hollow 1/2 inch (12.5 mm) ∙ Outside hexagon traction profile ∙ 16 mm | |
| 900KV-17 | Socket ∙ hexagon ∙ with protective insulation Square, hollow 1/2 inch (12.5 mm) ∙ Outside hexagon traction profile ∙ 17 mm | |
| 900KV-19 | Socket ∙ hexagon ∙ with protective insulation Square, hollow 1/2 inch (12.5 mm) ∙ Outside hexagon traction profile ∙ 19 mm | |
| 810VDE-35 | Screwdriver for electricians ∙ with protective insulation Slot profile ∙ 0.6 x 3.5 mm | |
| 810VDE-PH3 | Screwdriver for electricians ∙ with protective insulation Cross recess profile PH ∙ PH3 | |
| 810VDE-40 | Screwdriver for electricians ∙ with protective insulation Slot profile ∙ 0.8 x 4 mm | |
| 450KV-13 | Single open-end wrench ∙ with protective insulation Outside hexagon profile ∙ 13 mm | |
| 630KV-13 | Single box-end wrench ∙ with protective insulation Outside 12-point profile ∙ 13 mm | |
| 450KV-17 | Single open-end wrench ∙ with protective insulation Outside hexagon profile ∙ 17 mm | |
| 916KV | Reversible ratchet ∙ with protective insulation Square, solid 1/2 inch (12.5 mm) | |
| 2156VDE-2 | Cable stripping knife ∙ with protective insulation | |
| 630KV-17 | Single box-end wrench ∙ with protective insulation Outside 12-point profile ∙ 17 mm | |
| 630KV-19 | Single box-end wrench ∙ with protective insulation Outside 12-point profile ∙ 19 mm | |
| 450KV-19 | Single open-end wrench ∙ with protective insulation Outside hexagon profile ∙ 19 mm | |
| 1802VDE-22 | Heavy-duty diagonal cutter ∙ with protective insulation | |
| 1816VDE-22 | Flat nose pliers ∙ with protective insulation | |
| 1841BVDE-33 | Snipe nose pliers ∙ with protective insulation | |
| 1850VDE-44 | Combination pliers ∙ with protective insulation | |
| 1860VDE-11 | Wire stripper ∙ with protective insulation |
