Hazet 27 Pce 3/8" VDE Tool Set 150/27
SKU: HAZ150/27
150/27
DESCRIPTION
Application
Contents
Shipping & Delivery

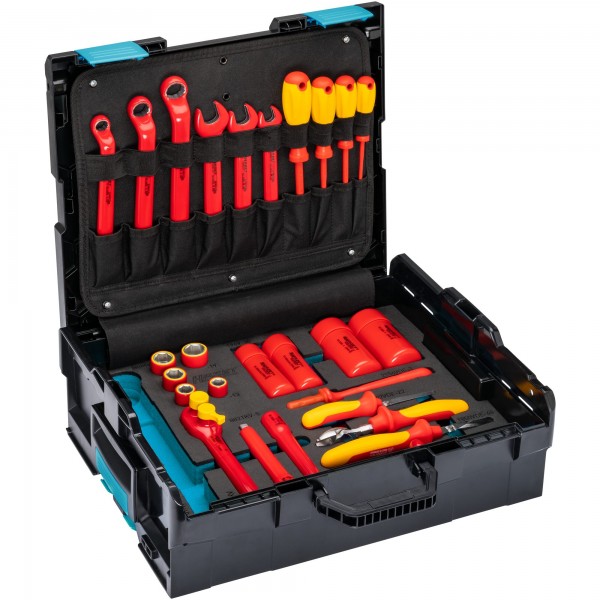

Hazet 27 Pce 3/8" VDE Tool Set 150/27
Application:

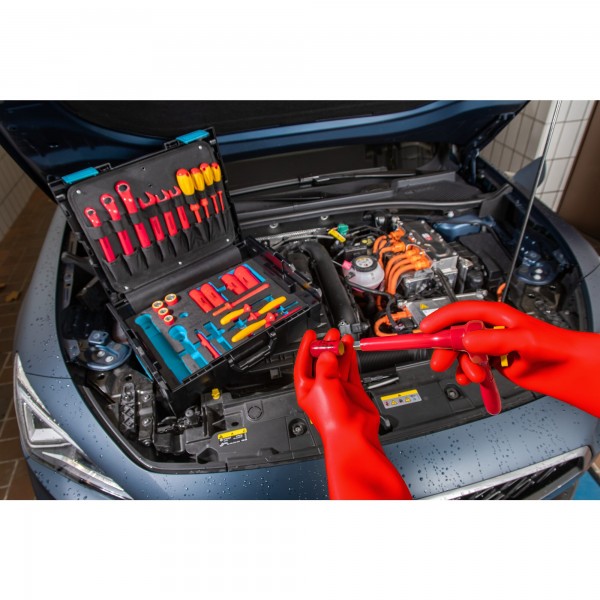

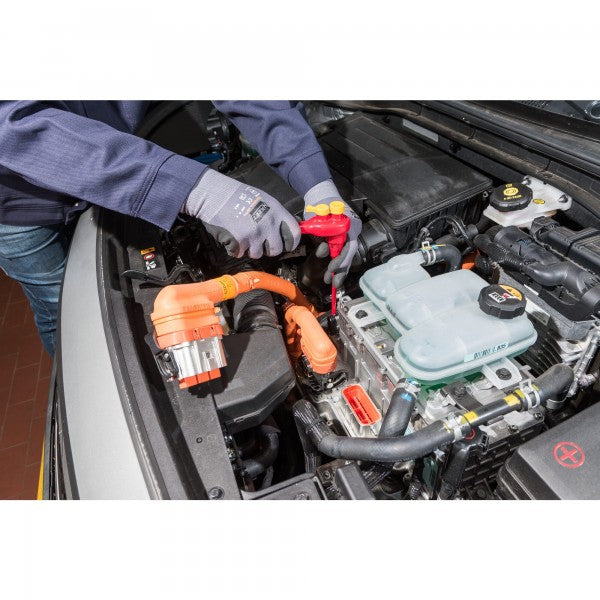

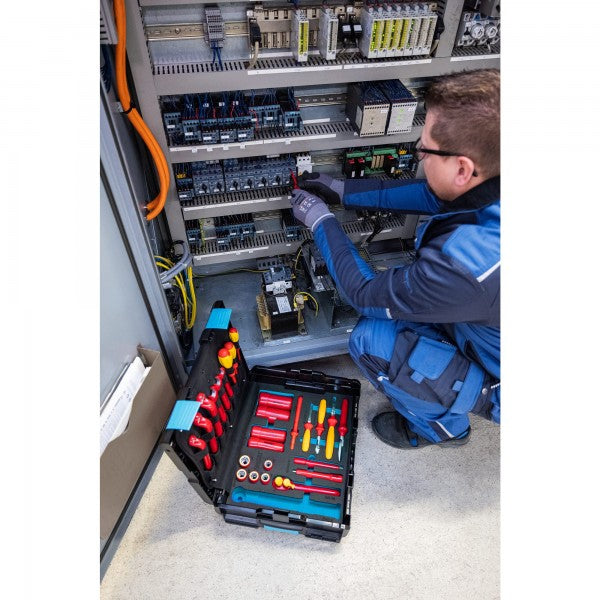

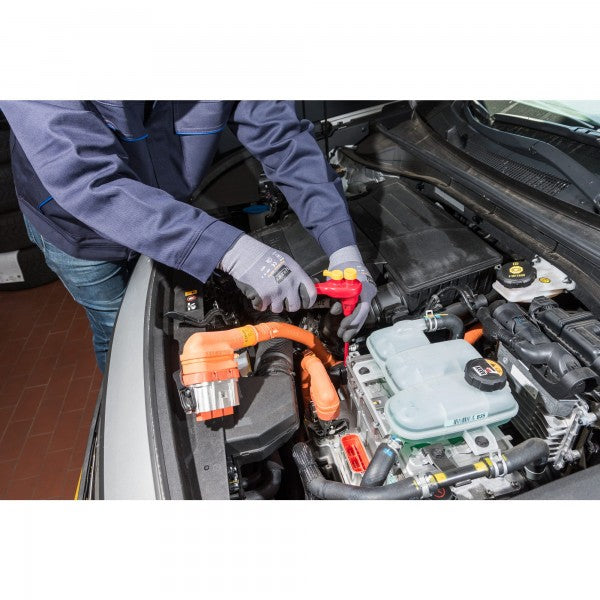

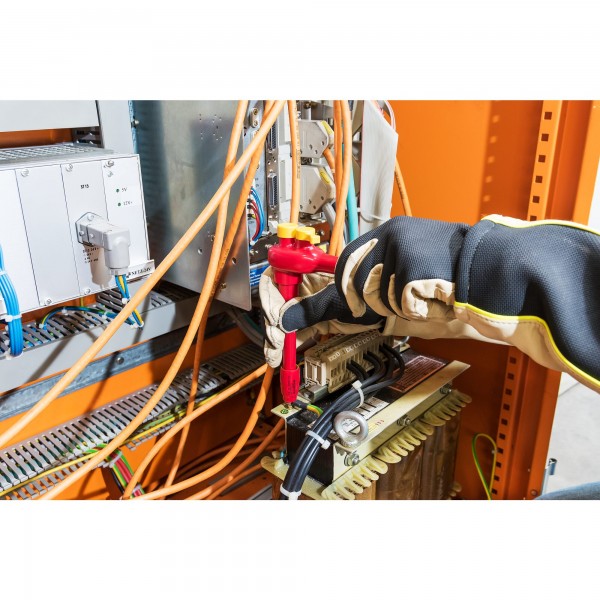

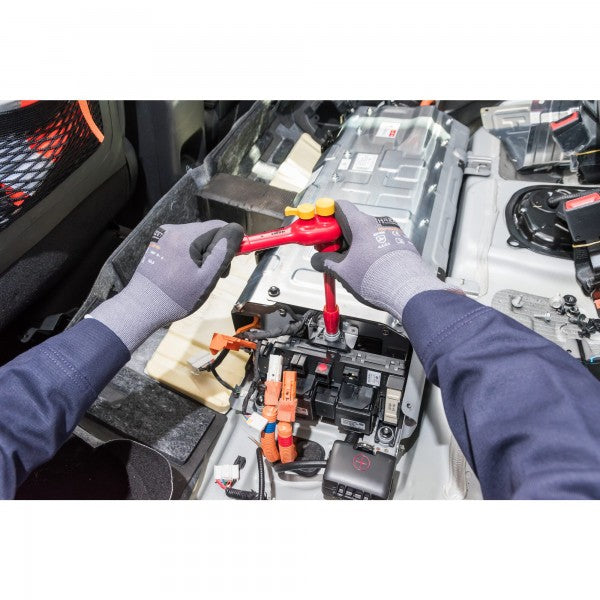

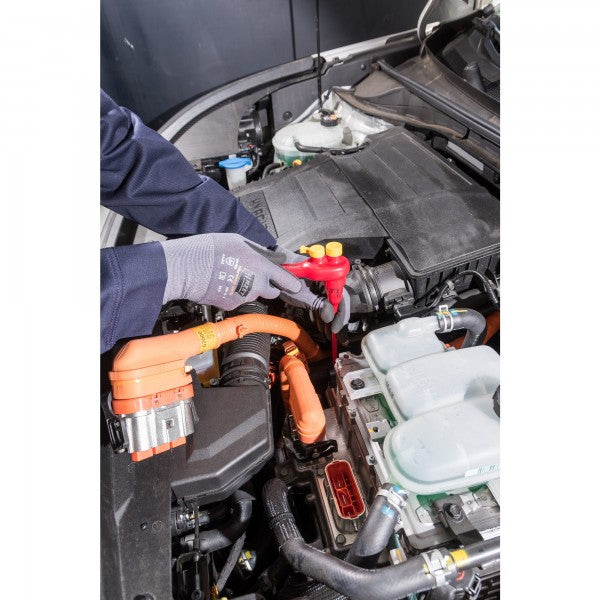

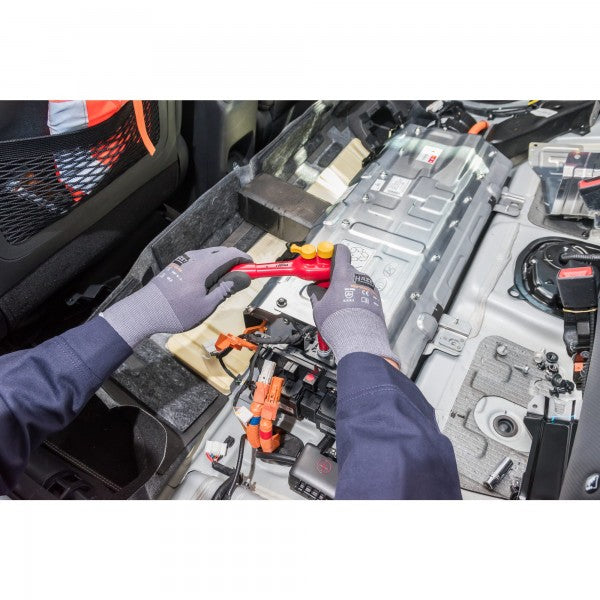

Universally applicable for all work on high-voltage systems in trade ∙ industry ∙ electric and hybrid vehicles
-

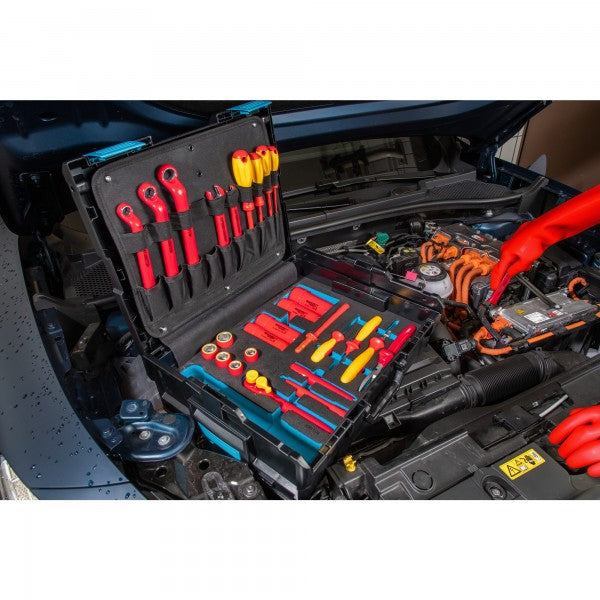

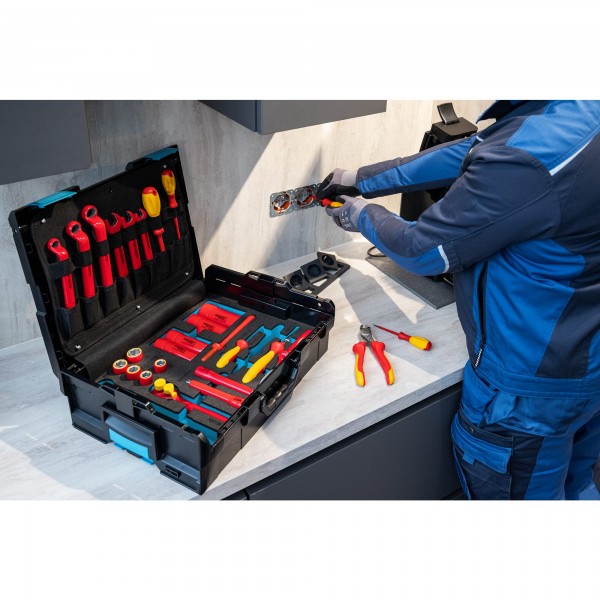

In HAZET L-Boxx – all tools ready to hand
-
Produced according to current DIN specifications – optimal protection and highest level of safety thanks to constant quality control
-
Recess for retrofitting with 3⁄8″ torque wrench ∙ with protective insulation 5109KV (5 – 25 Nm)
-
Surface: with protective insulation
-
IEC 60900:2018
-
Drive: Square, hollow 10 mm (3/8")
-
Output: Outside hexagon profile, Outside 12-point profile, Slot profile, Cross recess profile PH
-
Wrench size: ∙ 0,4 x 2,5 – 0,8 x 4 ∙ 13 – 19 ∙ PH1 – PH2
-
Dimensions / length: 445 mm x 358 mm x 152 mm
-
Protective insulation up to 1000 V
-
Number of tools: 27
Discover the Hazet 27 Pce 3/8" VDE Tool Set 150/27 at Mektronics Australia – your trusted source for quality tools and equipment!
Universally applicable for all work on high-voltage systems in trade ∙ industry ∙ electric and hybrid vehicles
| Article no. | Version | |
|---|---|---|
| 810VDE-25 | Screwdriver for electricians ∙ with protective insulation Slot profile ∙ 0.4 x 2.5 mm | |
| 810VDE-PH1 | Screwdriver for electricians ∙ with protective insulation Cross recess profile PH ∙ PH1 | |
| 1804VDE-33 | Cable shears ∙ with protective insulation | |

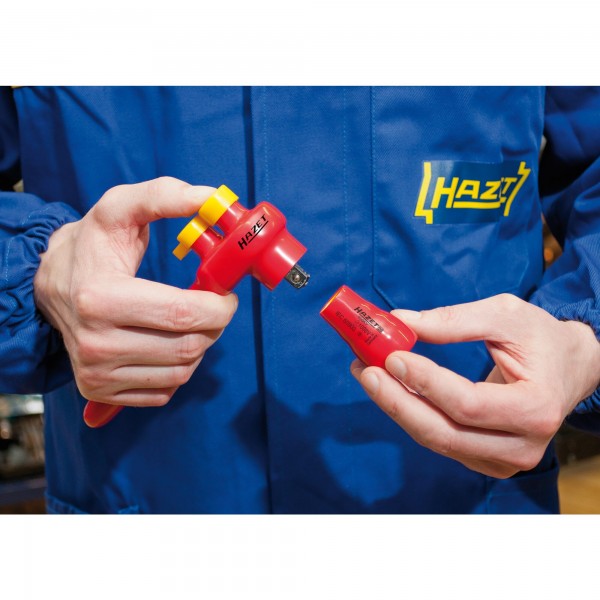

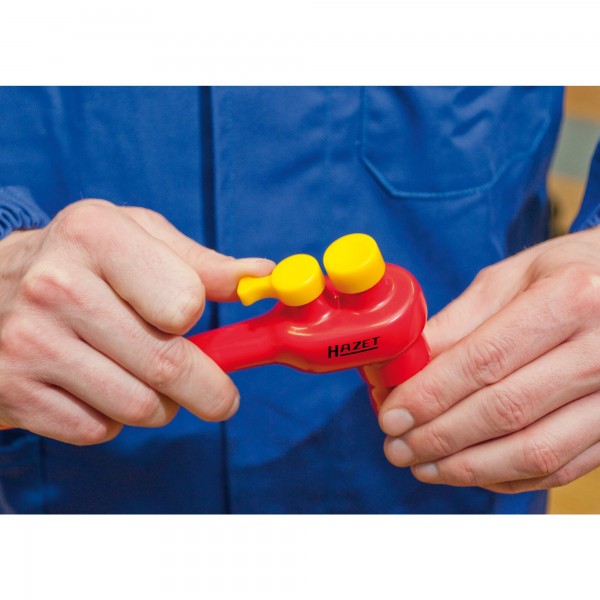

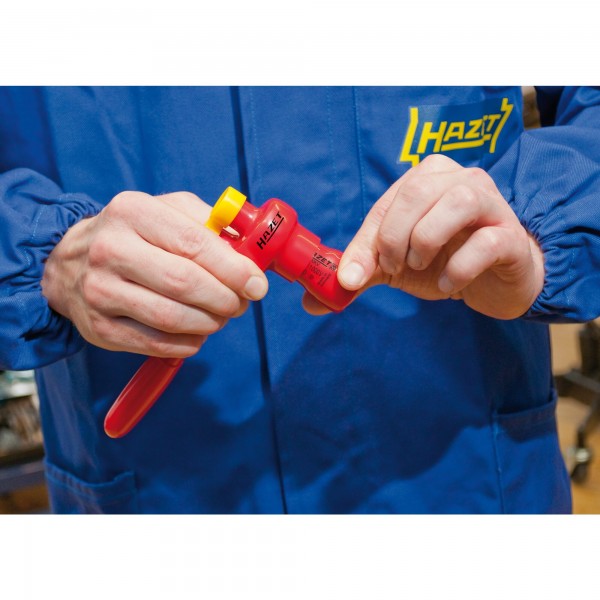

| 8816KV | Reversible ratchet ∙ with protective insulation Square, solid 3/8 inch (10 mm) | |
| 8821KV-5 | Extension ∙ with protective insulation Square, hollow 3/8 inch (10 mm) ∙ Square, solid 3/8 inch (10 mm) | |
| 810VDE-PH2 | Screwdriver for electricians ∙ with protective insulation Cross recess profile PH ∙ PH2 | |
| 880KV-13 | Socket ∙ hexagon ∙ with protective insulation Square, hollow 3/8 inch (10 mm) ∙ Outside hexagon traction profile ∙ 13 mm | |
| 880KV-14 | Socket ∙ hexagon ∙ with protective insulation Square, hollow 3/8 inch (10 mm) ∙ Outside hexagon traction profile ∙ 14 mm | |
| 880KV-16 | Socket ∙ hexagon ∙ with protective insulation Square, hollow 3/8 inch (10 mm) ∙ Outside hexagon traction profile ∙ 16 mm | |
| 880KV-17 | Socket ∙ hexagon ∙ with protective insulation Square, hollow 3/8 inch (10 mm) ∙ Outside hexagon traction profile ∙ 17 mm | |
| 880KV-19 | Socket ∙ hexagon ∙ with protective insulation Square, hollow 3/8 inch (10 mm) ∙ Outside hexagon traction profile ∙ 19 mm | |
| 810VDE-40 | Screwdriver for electricians ∙ with protective insulation Slot profile ∙ 0.8 x 4 mm | |
| 450KV-13 | Single open-end wrench ∙ with protective insulation Outside hexagon profile ∙ 13 mm | |
| 630KV-13 | Single box-end wrench ∙ with protective insulation Outside 12-point profile ∙ 13 mm | |
| 450KV-17 | Single open-end wrench ∙ with protective insulation Outside hexagon profile ∙ 17 mm | |
| 630KV-17 | Single box-end wrench ∙ with protective insulation Outside 12-point profile ∙ 17 mm | |
| 450KV-19 | Single open-end wrench ∙ with protective insulation Outside hexagon profile ∙ 19 mm | |
| 2156VDE-2 | Cable stripping knife ∙ with protective insulation | |
| 630KV-19 | Single box-end wrench ∙ with protective insulation Outside 12-point profile ∙ 19 mm | |
| 1802VDE-22 | Heavy-duty diagonal cutter ∙ with protective insulation | |
| 1816VDE-22 | Flat nose pliers ∙ with protective insulation | |
| 1850VDE-44 | Combination pliers ∙ with protective insulation |
