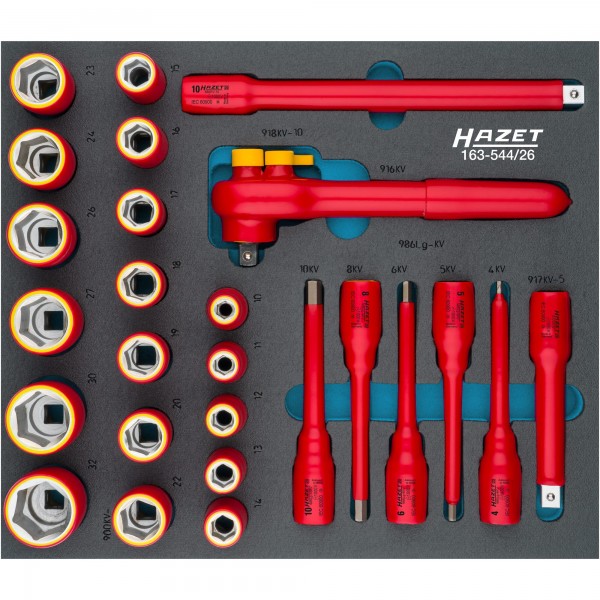

Hazet 26Pce 1/2" VDE Socket Set 163-544/26 Modular Insert Tray

SKU: HAZ163-544/26

163-544/26

$1,685.19

EX. GST
$1,853.71
INC GST
Out of Stock: Available to Order

own it from $10 a week with Group 2 Copy Created with Sketch.

DESCRIPTION
Inclusions
Specifications
Shipping & Delivery

Hazet 26Pce 1/2" VDE Socket Set 163-544/26 Modular Insert Tray

  • HAZET Safety-Insert-System (SIS)

  • For HAZET Tool trolley Assistent with drawer depth of 398 mm:

  • 173 ∙ 179 ∙ 179N ∙ 179NX ∙ 179W ∙ 179NW ∙ 179BIG-1 ∙ 179XL ∙ 179NXL ∙ 179XXL ∙ 179NXXL ∙ 179AXXL ∙ 179TXXL ∙ 180

  • Surface: with protective insulation

  • IEC 60900:2018

  • Drive: Square, hollow 12.5 mm (1/2 inch)

  • Output: Outside hexagon traction profile, Inside hexagon profile

  • Wrench size: ∙ 10 – 32

  • Dimensions / length: 392 mm x 344 mm

  • Protective insulation up to 1000 V

  • For manual operation

  • Order system size: 2/3+ (344 x 392 mm)

  • HAZET Safety-Insert-System (SIS)

  • Perfect order system - all tools are snugly embedded

  • Fast, integrated completeness check – missing tools are noticed immediately

  • Unlimited combination options

  • Suitable for all HAZET tool trolleys Tool trolley Assistent with drawers

  •

    For tool trolleys Tool trolley Assistent 173, 179 (XL-XXL) and 180, we recommend usage of the soft foam inserts 163-522x40 or 163-522x50

  • Number of tools: 26

Discover the Hazet 26Pce 1/2" VDE Socket Set 163-544/26 Modular Insert Tray at Mektronics Australia – your trusted source for quality tools and equipment!


Article no.
900KV-10 900KV-10 Socket ∙ hexagon ∙ with protective insulation Square, hollow 1/2 inch (12.5 mm) ∙ Outside hexagon traction profile ∙ 10 mm
900KV-11 900KV-11 Socket ∙ hexagon ∙ with protective insulation Square, hollow 1/2 inch (12.5 mm) ∙ Outside hexagon traction profile ∙ 11 mm
900KV-12 900KV-12 Socket ∙ hexagon ∙ with protective insulation Square, hollow 1/2 inch (12.5 mm) ∙ Outside hexagon traction profile ∙ 12 mm
900KV-13 900KV-13 Socket ∙ hexagon ∙ with protective insulation Square, hollow 1/2 inch (12.5 mm) ∙ Outside hexagon traction profile ∙ 13 mm
900KV-14 900KV-14 Socket ∙ hexagon ∙ with protective insulation Square, hollow 1/2 inch (12.5 mm) ∙ Outside hexagon traction profile ∙ 14 mm
900KV-15 900KV-15 Socket ∙ hexagon ∙ with protective insulation Square, hollow 1/2 inch (12.5 mm) ∙ Outside hexagon traction profile ∙ 15 mm
900KV-16 900KV-16 Socket ∙ hexagon ∙ with protective insulation Square, hollow 1/2 inch (12.5 mm) ∙ Outside hexagon traction profile ∙ 16 mm
900KV-17 900KV-17 Socket ∙ hexagon ∙ with protective insulation Square, hollow 1/2 inch (12.5 mm) ∙ Outside hexagon traction profile ∙ 17 mm
900KV-18 900KV-18 Socket ∙ hexagon ∙ with protective insulation Square, hollow 1/2 inch (12.5 mm) ∙ Outside hexagon traction profile ∙ 18 mm
900KV-19 900KV-19 Socket ∙ hexagon ∙ with protective insulation Square, hollow 1/2 inch (12.5 mm) ∙ Outside hexagon traction profile ∙ 19 mm
900KV-20 900KV-20 Socket ∙ hexagon ∙ with protective insulation Square, hollow 1/2 inch (12.5 mm) ∙ Outside hexagon traction profile ∙ 20 mm
900KV-23 900KV-23 Socket ∙ hexagon ∙ with protective insulation Square, hollow 1/2 inch (12.5 mm) ∙ Outside hexagon traction profile ∙ 23 mm
900KV-24 900KV-24 Socket ∙ hexagon ∙ with protective insulation Square, hollow 1/2 inch (12.5 mm) ∙ Outside hexagon traction profile ∙ 24 mm
900KV-26 900KV-26 Socket ∙ hexagon ∙ with protective insulation Square, hollow 1/2 inch (12.5 mm) ∙ Outside hexagon traction profile ∙ 26 mm
900KV-27 900KV-27 Socket ∙ hexagon ∙ with protective insulation Square, hollow 1/2 inch (12.5 mm) ∙ Outside hexagon traction profile ∙ 27 mm
900KV-30 900KV-30 Socket ∙ hexagon ∙ with protective insulation Square, hollow 1/2 inch (12.5 mm) ∙ Outside hexagon traction profile ∙ 30 mm
900KV-32 900KV-32 Socket ∙ hexagon ∙ with protective insulation Square, hollow 1/2 inch (12.5 mm) ∙ Outside hexagon traction profile ∙ 32 mm
916KV 916KV Reversible ratchet ∙ with protective insulation Square, solid 1/2 inch (12.5 mm) ∙ 260 mm
986LG-4KV 986LG-4KV Screwdriver socket ∙ with protective insulation Square, hollow 1/2 inch (12.5 mm) ∙ Inside hexagon profile ∙ 4 mm
917KV-5 917KV-5 Extension ∙ with protective insulation Square, hollow 1/2 inch (12.5 mm) ∙ Square, solid 1/2 inch (12.5 mm) ∙ 140 mm
986LG-5KV 986LG-5KV Screwdriver socket ∙ with protective insulation Square, hollow 1/2 inch (12.5 mm) ∙ Inside hexagon profile ∙ 5 mm
918KV-10 918KV-10 Extension ∙ with protective insulation Square, hollow 1/2 inch (12.5 mm) ∙ Square, solid 1/2 inch (12.5 mm) ∙ 264 mm
986LG-6KV 986LG-6KV Screwdriver socket ∙ with protective insulation Square, hollow 1/2 inch (12.5 mm) ∙ Inside hexagon profile ∙ 6 mm
900KV-22 900KV-22 Socket ∙ hexagon ∙ with protective insulation Square, hollow 1/2 inch (12.5 mm) ∙ Outside hexagon traction profile ∙ 22 mm
986LG-8KV 986LG-8KV Screwdriver socket ∙ with protective insulation Square, hollow 1/2 inch (12.5 mm) ∙ Inside hexagon profile ∙ 8 mm
986LG-10KV 986LG-10KV Screwdriver socket ∙ with protective insulation Square, hollow 1/2 inch (12.5 mm) ∙ Inside hexagon profile ∙ 10 mm



  • Width: 344 mm

  • Manual / impact operation: For manual operation

  • Number of tools: 26

  • Standard: IEC 60900:2018

  • Surface: with protective insulation

  • Plastic drawer insert size: 2/3+ (344 x 392 mm)

  • Dimensions / length: 392 mm x 344 mm

  • Protective insulation: Protective insulation up to 1000 V

  • Wrench size: 10 – 32
