Hazet 148Pce Socket Set 163D-1/148 Modular Insert Tray

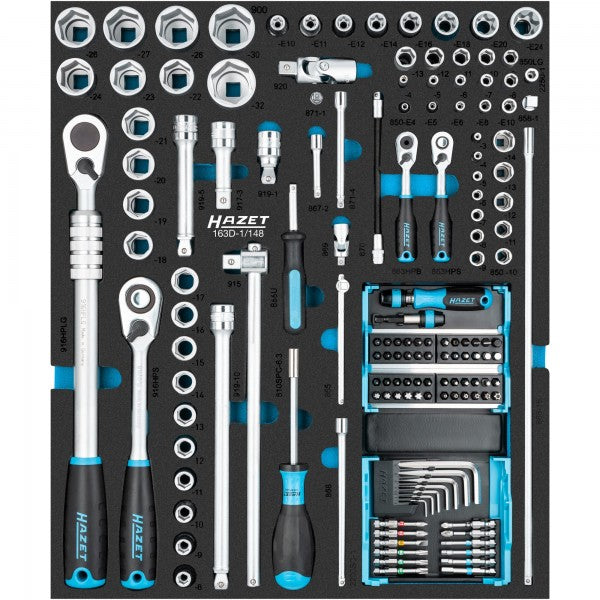

Image for Illustrative Purposes Only
Hazet Logo

Hazet 148Pce Socket Set 163D-1/148 Modular Insert Tray

SKU: HAZ163D-1/148

163D-1/148

$2,989.48

EX. GST
$3,288.43
INC GST
Out of Stock: Available to Order

own it from $10 a week with Group 2 Copy Created with Sketch.

DESCRIPTION
Inclusions
Specifications
Shipping & Delivery

Hazet 148Pce Socket Set 163D-1/148 Modular Insert Tray

  • HAZET Safety-Insert-System (SIS)

  • For HAZET Tool trolley Assistent with a drawer depth of 522 mm: 179NXXL-8D

  • Drive: Hexagon, solid 6.3 (1/4 inches), Square, hollow 6.3 mm (1/4 inch), Square, hollow 12.5 mm (1/2 inch)

  • Output: Outside TORX® profile, Inside TORX® profile, Outside hexagon traction profile, Pozidriv profile PZ, Cross recess profile PH, Slot profile

  • Wrench size: ∙ 0,5 x 4 – 1,2 x 6,5 ∙ 1,5 – 32 ∙ E4 – E24 ∙ PH1 – PH3 ∙ PZ1 – PZ3 ∙ T10 – T20

  • Dimensions / length: 522 mm x 435 mm

  • For manual operation

  • Order system size: 1/2++ (522 x 435 mm)

  • HAZET Safety-Insert-System (SIS)

  • Perfect order system - all tools are snugly embedded

  • Fast, integrated completeness check – missing tools are noticed immediately

  • Unlimited combination options

  • Suitable for all HAZET tool trolleys Tool trolley Assistent with drawers

  •  For tool trolleys Tool trolley Assistent 173, 179 (XL-XXL) and 180, we recommend usage of the soft foam inserts 163-522x40 or 163-522x50

  • Number of tools: 148

Discover the Hazet 148Pce Socket Set 163D-1/148 Modular Insert Tray at Mektronics Australia – your trusted source for quality tools and equipment!




 Article no.
810SPC-6.3 810SPC-6.3 Bit holder Hexagon, hollow 1/4 inch (6.3 mm) ∙ 210 mm
850-E5 850-E5 Socket ∙ TORX® Square, hollow 1/4 inch (6.3 mm) ∙ Outside TORX® profile ∙ E5
863HPS 863HPS HiPer fine-tooth reversible ratchet ∙ safety locking Square, solid 1/4 inch (6.3 mm) ∙ 116 mm
863HPB 863HPB HiPer fine-tooth reversible ratchet for screwdriver bits ∙ fine-tooth Hexagon, hollow 1/4 inch (6.3 mm) ∙ 116 mm
916HPLG 916HPLG HiPer fine-tooth reversible ratchet ∙ extendable Square, solid 1/2 inch (12.5 mm) ∙ 614 mm
850-3 850-3 Socket ∙ hexagon Square, hollow 1/4 inch (6.3 mm) ∙ Outside hexagon traction profile ∙ 3 mm
850-4 850-4 Socket ∙ hexagon Square, hollow 1/4 inch (6.3 mm) ∙ Outside hexagon traction profile ∙ 4 mm
850-5 850-5 Socket ∙ hexagon Square, hollow 1/4 inch (6.3 mm) ∙ Outside hexagon traction profile ∙ 5 mm
850-6 850-6 Socket ∙ hexagon Square, hollow 1/4 inch (6.3 mm) ∙ Outside hexagon traction profile ∙ 6 mm
850-7 850-7 Socket ∙ hexagon Square, hollow 1/4 inch (6.3 mm) ∙ Outside hexagon traction profile ∙ 7 mm
850-8 850-8 Socket ∙ hexagon Square, hollow 1/4 inch (6.3 mm) ∙ Outside hexagon traction profile ∙ 8 mm
850-9 850-9 Socket ∙ hexagon Square, hollow 1/4 inch (6.3 mm) ∙ Outside hexagon traction profile ∙ 9 mm
850-10 850-10 Socket ∙ hexagon Square, hollow 1/4 inch (6.3 mm) ∙ Outside hexagon traction profile ∙ 10 mm
850-11 850-11 Socket ∙ hexagon Square, hollow 1/4 inch (6.3 mm) ∙ Outside hexagon traction profile ∙ 11 mm
850-12 850-12 Socket ∙ hexagon Square, hollow 1/4 inch (6.3 mm) ∙ Outside hexagon traction profile ∙ 12 mm
850-13 850-13 Socket ∙ hexagon Square, hollow 1/4 inch (6.3 mm) ∙ Outside hexagon traction profile ∙ 13 mm
850-14 850-14 Socket ∙ hexagon Square, hollow 1/4 inch (6.3 mm) ∙ Outside hexagon traction profile ∙ 14 mm
850LG-4 850LG-4 Socket ∙ hexagon Square, hollow 1/4 inch (6.3 mm) ∙ Outside hexagon traction profile ∙ 4 mm
850LG-5 850LG-5 Socket ∙ hexagon Square, hollow 1/4 inch (6.3 mm) ∙ Outside hexagon traction profile ∙ 5 mm
850LG-6 850LG-6 Socket ∙ hexagon Square, hollow 1/4 inch (6.3 mm) ∙ Outside hexagon traction profile ∙ 6 mm
850LG-7 850LG-7 Socket ∙ hexagon Square, hollow 1/4 inch (6.3 mm) ∙ Outside hexagon traction profile ∙ 7 mm
850LG-8 850LG-8 Socket ∙ hexagon Square, hollow 1/4 inch (6.3 mm) ∙ Outside hexagon traction profile ∙ 8 mm
850LG-9 850LG-9 Socket ∙ hexagon Square, hollow 1/4 inch (6.3 mm) ∙ Outside hexagon traction profile ∙ 9 mm
850LG-10 850LG-10 Socket ∙ hexagon Square, hollow 1/4 inch (6.3 mm) ∙ Outside hexagon traction profile ∙ 10 mm
850LG-11 850LG-11 Socket ∙ hexagon Square, hollow 1/4 inch (6.3 mm) ∙ Outside hexagon traction profile ∙ 11 mm
850LG-12 850LG-12 Socket ∙ hexagon Square, hollow 1/4 inch (6.3 mm) ∙ Outside hexagon traction profile ∙ 12 mm
850LG-13 850LG-13 Socket ∙ hexagon Square, hollow 1/4 inch (6.3 mm) ∙ Outside hexagon traction profile ∙ 13 mm
850-E4 850-E4 Socket ∙ TORX® Square, hollow 1/4 inch (6.3 mm) ∙ Outside TORX® profile ∙ E4
850-E6 850-E6 Socket ∙ TORX® Square, hollow 1/4 inch (6.3 mm) ∙ Outside TORX® profile ∙ E6
850-E8 850-E8 Socket ∙ TORX® Square, hollow 1/4 inch (6.3 mm) ∙ Outside TORX® profile ∙ E8
850-E10 850-E10 Socket ∙ TORX® Square, hollow 1/4 inch (6.3 mm) ∙ Outside TORX® profile ∙ E10
858-1 858-1 Amplifier Square, hollow 1/4 inch (6.3 mm) ∙ Square, solid 3/8 inch (10 mm) ∙ 26.5 mm
865 865 Sliding T-handle Square, solid 1/4 inch (6.3 mm) ∙ 115 mm
866U 866U Spin type speeder Square, solid 1/4 inch (6.3 mm) ∙ 134 mm
867-2 867-2 Extension Square, hollow 1/4 inch (6.3 mm) ∙ Square, solid 1/4 inch (6.3 mm) ∙ 55 mm
868 868 Extension Square, hollow 1/4 inch (6.3 mm) ∙ Square, solid 1/4 inch (6.3 mm) ∙ 147 mm
868-16 868-16 Extension Square, hollow 1/4 inch (6.3 mm) ∙ Square, solid 1/4 inch (6.3 mm) ∙ 402 mm
869 869 Universal joint Square, hollow 1/4 inch (6.3 mm) ∙ Square, solid 1/4 inch (6.3 mm) ∙ 36.5 mm
870 870 Extension ∙ flexible Square, hollow 1/4 inch (6.3 mm) ∙ Square, solid 1/4 inch (6.3 mm) ∙ 150 mm
871-1 871-1 Wobble extension Square, hollow 1/4 inch (6.3 mm) ∙ Square, solid 1/4 inch (6.3 mm) ∙ 25 mm
871-4 871-4 Wobble extension Square, hollow 1/4 inch (6.3 mm) ∙ Square, solid 1/4 inch (6.3 mm) ∙ 101.5 mm
900-8 900-8 Socket ∙ hexagon Square, hollow 1/2 inch (12.5 mm) ∙ Outside hexagon traction profile ∙ 8 mm
900-9 900-9 Socket ∙ hexagon Square, hollow 1/2 inch (12.5 mm) ∙ Outside hexagon traction profile ∙ 9 mm
900-10 900-10 Socket ∙ hexagon Square, hollow 1/2 inch (12.5 mm) ∙ Outside hexagon traction profile ∙ 10 mm
900-11 900-11 Socket ∙ hexagon Square, hollow 1/2 inch (12.5 mm) ∙ Outside hexagon traction profile ∙ 11 mm
900-12 900-12 Socket ∙ hexagon Square, hollow 1/2 inch (12.5 mm) ∙ Outside hexagon traction profile ∙ 12 mm
900-13 900-13 Socket ∙ hexagon Square, hollow 1/2 inch (12.5 mm) ∙ Outside hexagon traction profile ∙ 13 mm
900-14 900-14 Socket ∙ hexagon Square, hollow 1/2 inch (12.5 mm) ∙ Outside hexagon traction profile ∙ 14 mm
900-15 900-15 Socket ∙ hexagon Square, hollow 1/2 inch (12.5 mm) ∙ Outside hexagon traction profile ∙ 15 mm
900-16 900-16 Socket ∙ hexagon Square, hollow 1/2 inch (12.5 mm) ∙ Outside hexagon traction profile ∙ 16 mm
900-17 900-17 Socket ∙ hexagon Square, hollow 1/2 inch (12.5 mm) ∙ Outside hexagon traction profile ∙ 17 mm
900-18 900-18 Socket ∙ hexagon Square, hollow 1/2 inch (12.5 mm) ∙ Outside hexagon traction profile ∙ 18 mm
900-19 900-19 Socket ∙ hexagon Square, hollow 1/2 inch (12.5 mm) ∙ Outside hexagon traction profile ∙ 19 mm
900-20 900-20 Socket ∙ hexagon Square, hollow 1/2 inch (12.5 mm) ∙ Outside hexagon traction profile ∙ 20 mm
900-21 900-21 Socket ∙ hexagon Square, hollow 1/2 inch (12.5 mm) ∙ Outside hexagon traction profile ∙ 21 mm
900-22 900-22 Socket ∙ hexagon Square, hollow 1/2 inch (12.5 mm) ∙ Outside hexagon traction profile ∙ 22 mm
900-23 900-23 Socket ∙ hexagon Square, hollow 1/2 inch (12.5 mm) ∙ Outside hexagon traction profile ∙ 23 mm
900-24 900-24 Socket ∙ hexagon Square, hollow 1/2 inch (12.5 mm) ∙ Outside hexagon traction profile ∙ 24 mm
900-26 900-26 Socket ∙ hexagon Square, hollow 1/2 inch (12.5 mm) ∙ Outside hexagon traction profile ∙ 26 mm
900-27 900-27 Socket ∙ hexagon Square, hollow 1/2 inch (12.5 mm) ∙ Outside hexagon traction profile ∙ 27 mm
900-28 900-28 Socket ∙ hexagon Square, hollow 1/2 inch (12.5 mm) ∙ Outside hexagon traction profile ∙ 28 mm
900-30 900-30 Socket ∙ hexagon Square, hollow 1/2 inch (12.5 mm) ∙ Outside hexagon traction profile ∙ 30 mm
900-32 900-32 Socket ∙ hexagon Square, hollow 1/2 inch (12.5 mm) ∙ Outside hexagon traction profile ∙ 32 mm
900-E10 900-E10 Socket ∙ TORX® Square, hollow 1/2 inch (12.5 mm) ∙ Outside TORX® profile ∙ E10
900-E11 900-E11 Socket ∙ TORX® Square, hollow 1/2 inch (12.5 mm) ∙ Outside TORX® profile ∙ E11
900-E12 900-E12 Socket ∙ TORX® Square, hollow 1/2 inch (12.5 mm) ∙ Outside TORX® profile ∙ E12
900-E14 900-E14 Socket ∙ TORX® Square, hollow 1/2 inch (12.5 mm) ∙ Outside TORX® profile ∙ E14
900-E16 900-E16 Socket ∙ TORX® Square, hollow 1/2 inch (12.5 mm) ∙ Outside TORX® profile ∙ E16
900-E18 900-E18 Socket ∙ TORX® Square, hollow 1/2 inch (12.5 mm) ∙ Outside TORX® profile ∙ E18
900-E20 900-E20 Socket ∙ TORX® Square, hollow 1/2 inch (12.5 mm) ∙ Outside TORX® profile ∙ E20
900-E24 900-E24 Socket ∙ TORX® Square, hollow 1/2 inch (12.5 mm) ∙ Outside TORX® profile ∙ E24
916HPS 916HPS HiPer fine-tooth reversible ratchet ∙ safety locking Square, solid 1/2 inch (12.5 mm) ∙ 275 mm
915 915 Sliding T-handle Square, solid 1/2 inch (12.5 mm) ∙ 298 mm
2200SC-1 2200SC-1 SmartCase screwdriver bit set Hexagon, solid 1/4 inch (6.3 mm) ∙ Slot profile, Cross recess profile PH, Pozidriv profile PZ, …
917-3 917-3 Extension Square, hollow 1/2 inch (12.5 mm) ∙ Square, solid 1/2 inch (12.5 mm) ∙ 76 mm
919-1 919-1 Wobble extension Square, hollow 1/2 inch (12.5 mm) ∙ Square, solid 1/2 inch (12.5 mm) ∙ 46 mm
919-5 919-5 Wobble extension Square, hollow 1/2 inch (12.5 mm) ∙ Square, solid 1/2 inch (12.5 mm) ∙ 123 mm
919-10 919-10 Wobble extension Square, hollow 1/2 inch (12.5 mm) ∙ Square, solid 1/2 inch (12.5 mm) ∙ 248 mm
920 920 Universal joint Square, hollow 1/2 inch (12.5 mm) ∙ Square, solid 1/2 inch (12.5 mm) ∙ 70 mm
2250-1 2250-1 Adapter Square, hollow 1/4 inch (6.3 mm) ∙ Hexagon, hollow 1/4 inch (6.3 mm) ∙ 23.5 mm



  • Wrench size: 0,5 x 4 – 1,2 x 6,5 ∙ 1,5 – 32 ∙ E4 – E24 ∙ PH1 – PH3 ∙ PZ1 – PZ3 ∙ T10 – T20

  • Number of tools: 148

  • Width: 435 mm

  • Dimensions / length: 522 mm x 435 mm

  • Plastic drawer insert size: 1/2++ (522 x 435 mm)

  • Manual / impact operation: For manual operation
