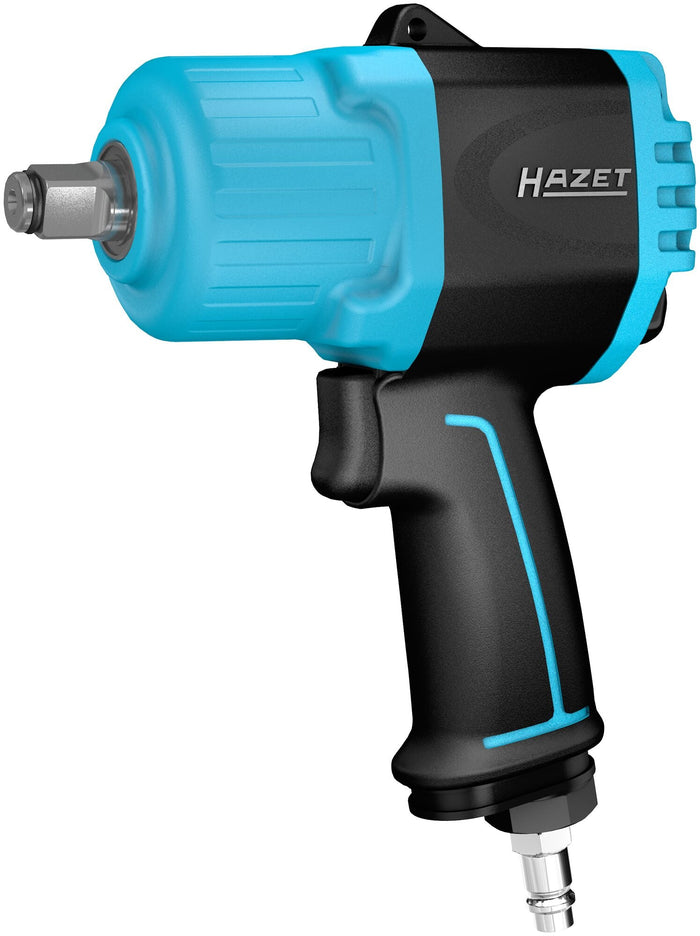

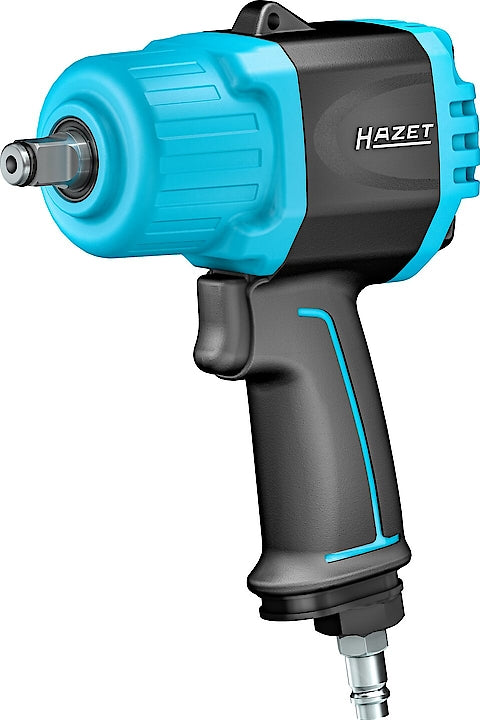

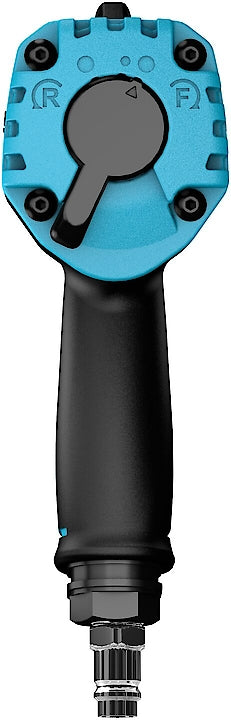

Hazet 1/2" Square Solid Twin Turbo Impact Wrench 2200Nm 9012TT
SKU: HAZ9012TT
9012TT
DESCRIPTION
Application
Specifications
Shipping & Delivery
Hazet 1/2" Square Solid Twin Turbo Impact Wrench 2200Nm 9012TT
-
Maximum loosening torque: 2200 Nm
-
Exhaust air is guided through the handle downwards
-
Reduced vibrations
-
Easy handling
-

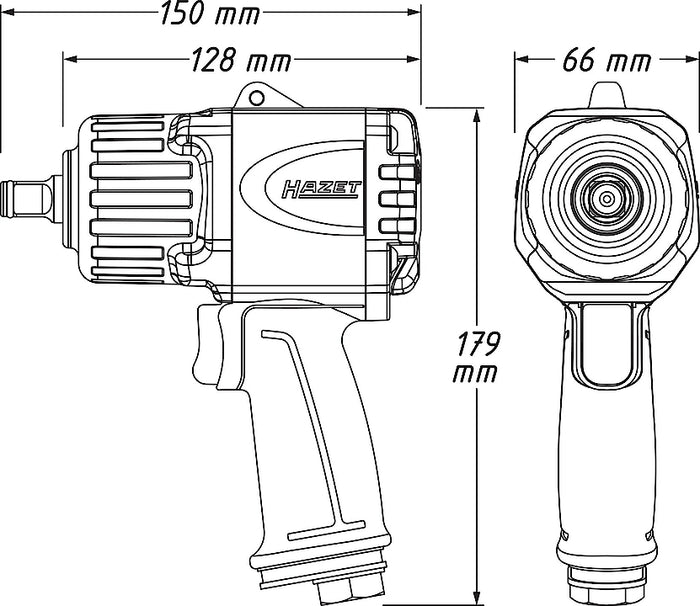

Short design – only 128 mm
-
HAZET Twin Turbo technology – high torques with compact design
-

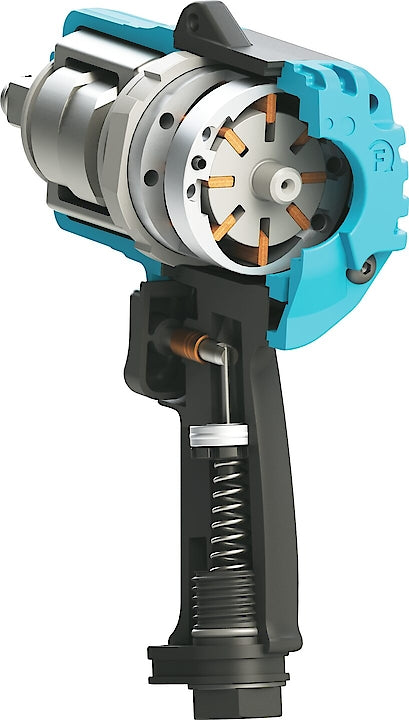

8-blade air motor with 25% higher impact performance ensures maximum torque
-
One-hand operation for right- and left-handed users
-

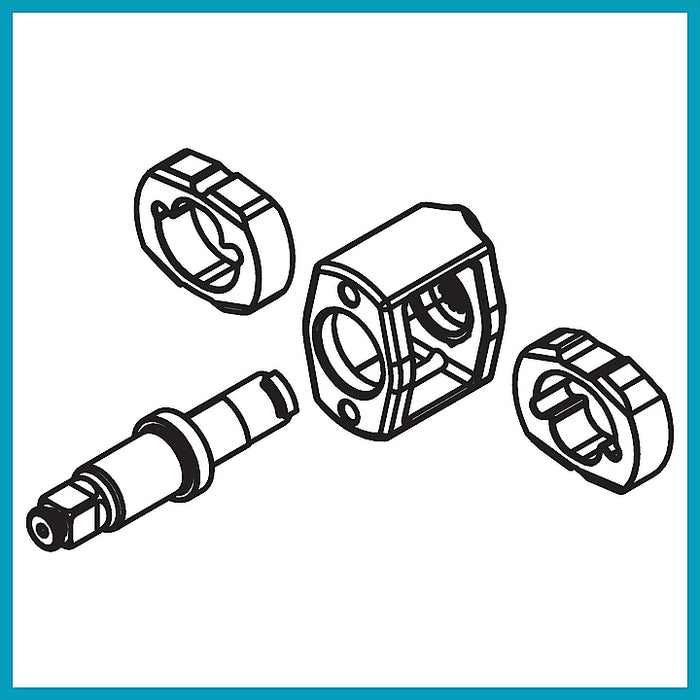

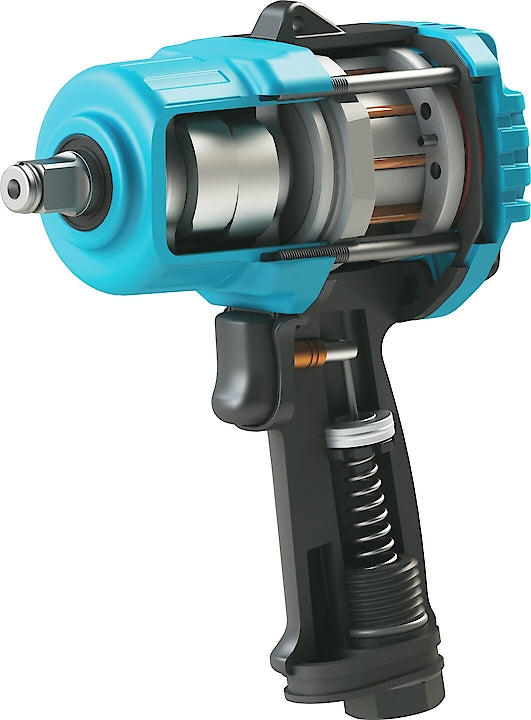

Powerful twin hammer mechanism
-
Air connection inlet: Inside thread 12.91 mm (1/4″)
-

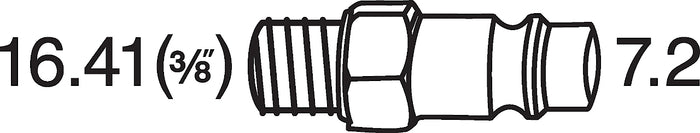

Coupler plug: Nominal size 7.2 (included)
-
Recommended torque: 948 Nm
-
Hose diameter (recommended): 10 mm
-
Working pressure (bar): 6.3
-
Sound power level: 110.7 db(A) Lp W
-
Vibration acceleration: 8.69 m/s2
-
Loosening torque (max) determined with screw size M: 16
-
Forward and reverse: two-stage (forward), single-stage (reverse)
-
Cold insulated handle
-
Output: Square, solid 12.5 mm (1/2 inch)
-
Net weight: 1.6 kg
-
Tightening torque max.: 1356 Nm
-
Maximum loosening torque: 2200 Nm
-
Sound pressure level: 99.7 dB(A) Lp A
-
Revolutions per minute: 8300
-
Air requirement: 147.2 l/min (2.5 l/sec)
Discover the Hazet 1/2" Square Solid Twin Turbo Impact Wrench 2200Nm 9012TT at Mektronics Australia – your trusted source for quality tools and equipment!
Long service life and high efficiency in industrial and automotive applications
| Loosening torque maximum | 2200 Nm |
| Output |
1/2 inch (12.5 mm) square, solid |
| Manual/impact operation |
For impact operation |
| Tightening torque maximum | 1356 Nm |
| Net weight | 1.6 kg |
| Striking mechanism (type) |
Powerful twin hammer mechanism |
| Air requirement | 147.2 l/min |
| Forward and reverse |
two-stage (forward), single-stage (reverse) |
| Recommended torque | 948 Nm |
| Handle |
Cold insulated handle |
| Hose diameter (recommended) | 10 mm |
| Vibration acceleration | 8.69 m/s2 |
| Sound pressure level | 99.7 dB(A) Lp A |
| Revolutions per minute | 8300 |
| Thread type air inlet |
PT |
| Air connection inlet |
Inside thread 12.91 mm (1/4″) |
| Loosening torque (maximum) determined with screw size M | 16 M |
| Coupler plug |
Nominal size 7.2 (included) |
| Sound power level | 110.7 db(A) Lp W |
| Air requirement [l/sec] | 2.5 l/sec |
| Working pressure (bar) | 6.3 bar |
