Hazet 1/2" (12.5mm) Square Solid Twin Turbo Impact Wrench 550Nm 9012ATT
SKU: HAZ9012ATT
9012ATT
DESCRIPTION
Application
Specifications
Shipping & Delivery
Hazet 1/2" (12.5mm) Square Solid Twin Turbo Impact Wrench 550Nm 9012ATT
-
Maximum loosening torque: 550 Nm
-
Exhaust air is guided through the handle downwards
-
Reduced vibrations
-
Easy handling
-

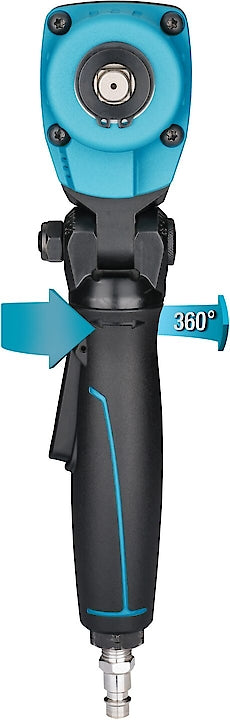

Handle / trigger adjustable around its own axis for optimal handling allows operation in any position
-

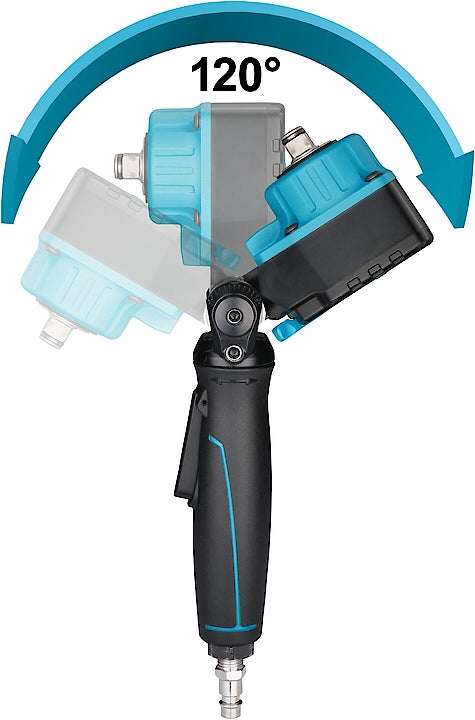

Swivel mechanism for extended application range guarantees best accessibility
-

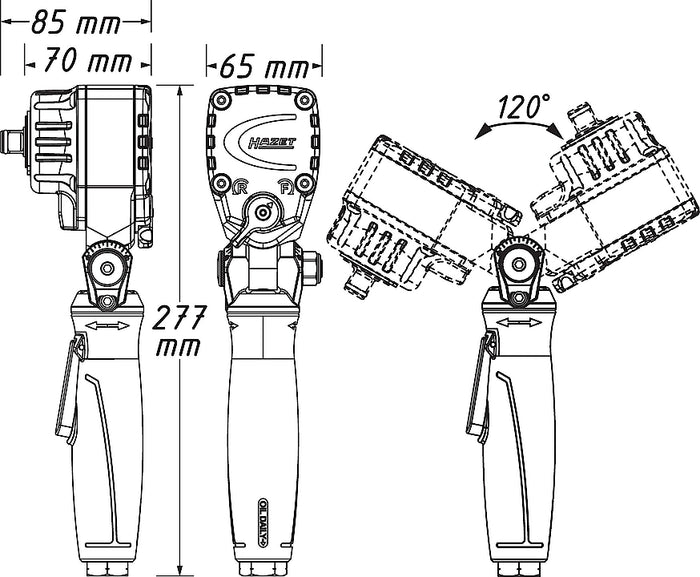

Short, compact, angled design – only 70 mm
-
One-hand operation for left- and right-handed users
-
Powerful twin hammer mechanism
-

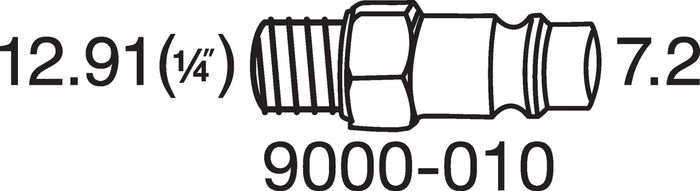

Air connection inlet: Inside thread 12.91 mm (1/4″)
-
Coupler plug: Nominal size 7.2 (included)
-
Recommended torque: 450 Nm
-
Hose diameter (recommended): 10 mm
-
Working pressure (bar): 6.3
-
Sound power level: 101.1 db(A) Lp W
-
Vibration acceleration: 4.89 m/s2
-
Loosening torque (max) determined with screw size M: 16
-
Forward and reverse: single-stage (right/left)
-
Cold insulated handle
-
Output: Square, solid 12.5 mm (1/2 inch)
-
Dimensions / length: 85 mm x 64 mm x 227 mm
-
Net weight: 1.3 kg
-
Tightening torque max.: 500 Nm
-
Maximum loosening torque: 550 Nm
-
Sound pressure level: 90.1 dB(A) Lp A
-
Revolutions per minute: 8000
-
Air requirement: 113 l/min (1.9 l/sec)
Discover the Hazet 1/2" (12.5mm) Square Solid Twin Turbo Impact Wrench 550Nm 9012ATT at Mektronics Australia – your trusted source for quality tools and equipment!

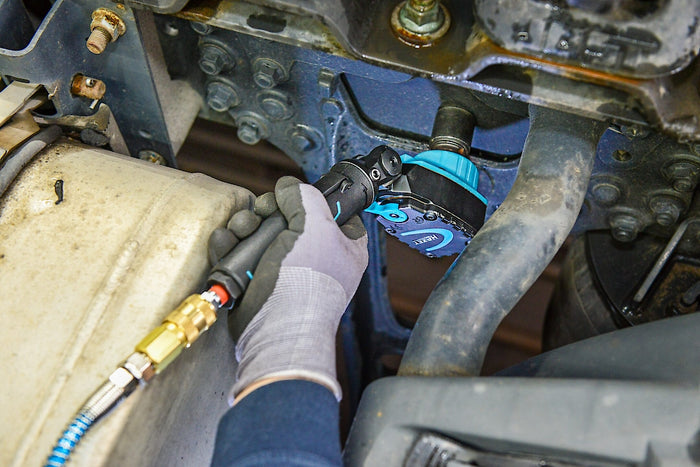

Operating brake calliper screw connections as well as other hard-to-reach screw-joints
| Design ∙ Special feature |
Angled |
| Loosening torque maximum | 550 Nm |
| Manual/impact operation |
For impact operation |
| Tightening torque maximum | 500 Nm |
| Output |
1/2 inch (12.5 mm) square, solid |
| Net weight | 1.3 kg |
| Striking mechanism (type) |
Powerful twin hammer mechanism |
| Air requirement | 113 l/min |
| Forward and reverse |
single-stage (right/left) |
| Dimensions | 85 x 64 x 227 mm |
| Recommended torque | 450 Nm |
| Handle |
Cold insulated handle |
| Hose diameter (recommended) | 10 mm |
| Vibration acceleration | 4.89 m/s2 |
| Length | 85 mm |
| Sound pressure level | 90.1 dB(A) Lp A |
| Revolutions per minute | 8000 |
| Thread type air inlet |
PT |
| Air connection inlet |
Inside thread 12.91 mm (1/4″) |
| Loosening torque (maximum) determined with screw size M | 16 M |
| Coupler plug |
Nominal size 7.2 (included) |
| Sound power level | 101.1 db(A) Lp W |
| Air requirement [l/sec] | 1.9 l/sec |
| Working pressure (bar) | 6.3 bar |
