Hazet 1/2" (12.5mm) Square Solid Torque Wrench 10-60Nm Tolerance ±3% 5120-3CT
SKU: HAZ5120-3CT
5120-3CT
DESCRIPTION
Specifications
Shipping & Delivery
Hazet 1/2" (12.5mm) Square Solid Torque Wrench 10-60Nm Tolerance ±3% 5120-3CT
-
User-friendly reversible ratchet
-
Extra short design – compact
-
Specifically also for commercial vehicles
-
Accuracy ± 3% of the scale value (in direction of actuation for right-hand tightening) (5107-3CT ± 4% accuracy of scale value)
-
For left-hand tightening, use our torque wrenches with insert tool
-
Safety:
-
Haptic (close-gap release)
-
Audible ("click" sound)
-
-
Designed for rough workshop use
-

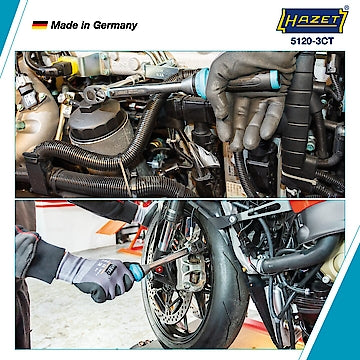

Wide range of applications for controlled screw tightening in tyre service, bicycle, passenger car and commercial vehicle applications as well as various applications in trade and industry
-
Optimised sealing ring to protect against debris
-
Ratchet repair set for customer-oriented self-assembly enables decades of use
-
Handle with better grip for easier power transmission
-

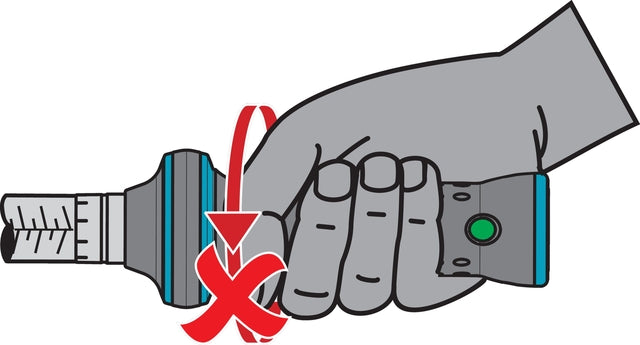

Adjustment aid with detent points for optimised operator guidance ensures safe and fast adjustment of the desired torque value by turning the handle
-
Safe locking of the setting values by latching function on the rotary assembly
-
Rotary assembly in triangular form prevents uncontrolled rolling
-
Lock symbols indicate the respective locking status
-
Can be attached to the cable loop through openings on the locking rotary assembly
-
Easy-to-read, high-contrast scale
-
Permanent readability due to laser marking on the scale bush
-
Integrated shift lever
5121-3CT – 5123-3CT: shift lever with idle function – reduces risk of injury and malfunction
-

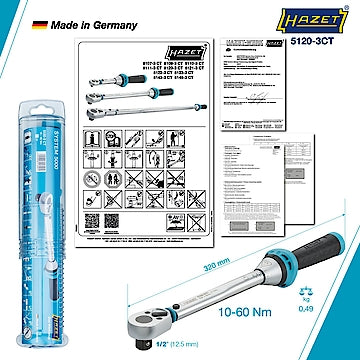

With calibration certificate and serial number
-
Delivery in sturdy Hexa plastic box
-
DIN EN ISO 6789-2:2017, DIN 3120, ISO 1174-1
-
Made in Germany
-
Output: Square, solid 12.5 mm (1/2 inch)
-
Dimensions / length: 320 mm
-
Net weight: 0.49 kg
-
Nm min-max: 10 – 60 Nm
-
Tolerance: 3 %
-
Scale Graduation (Nm): 0.5 Nm
-
Actuating force min.-max. kg: 3.9 – 25.0 kg
-
Number of teeth: 30 (Opening angle 12°)
-

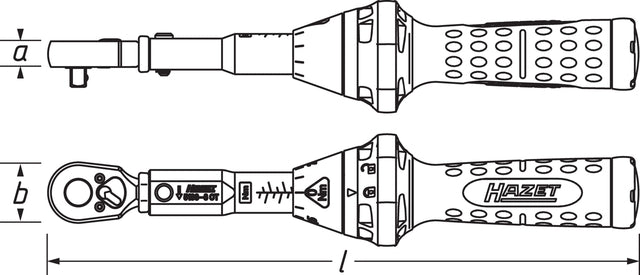

Head Thickness a: 14.5 mm
-
Head Width b: 32 mm
-
No more turning back: Continuous long-term tests on the 5000 series and 6000 series of HAZET torque wrenches have demonstrated that turning them back to the smallest scale value is not required
Discover the Hazet 1/2" (12.5mm) Square Solid Torque Wrench 10-60Nm Tolerance ±3% 5120-3CT at Mektronics Australia – your trusted source for quality tools and equipment!
| Manual/impact operation |
For manual operation |
| Tolerance | 3 % |
| Output |
1/2 inch (12.5 mm) square, solid |
| Tightening torque minimum | 10 Nm |
| Tightening torque maximum | 60 Nm |
| Number of teeth | 30 teeth |
| Scale Graduation (Nm) | 0.5 Nm |
| Opening angle | 12 ° |
| Standard |
DIN EN ISO 6789-2:2017 DIN 3120 ISO 1174-1 |
| Length | 320 mm |
| Actuating force min.-max. kg | 3.9 – 25.0 |
