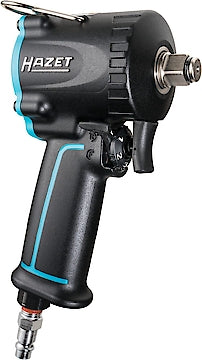

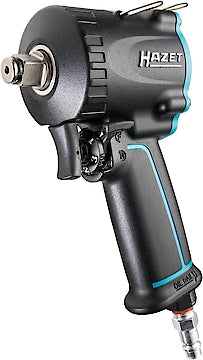

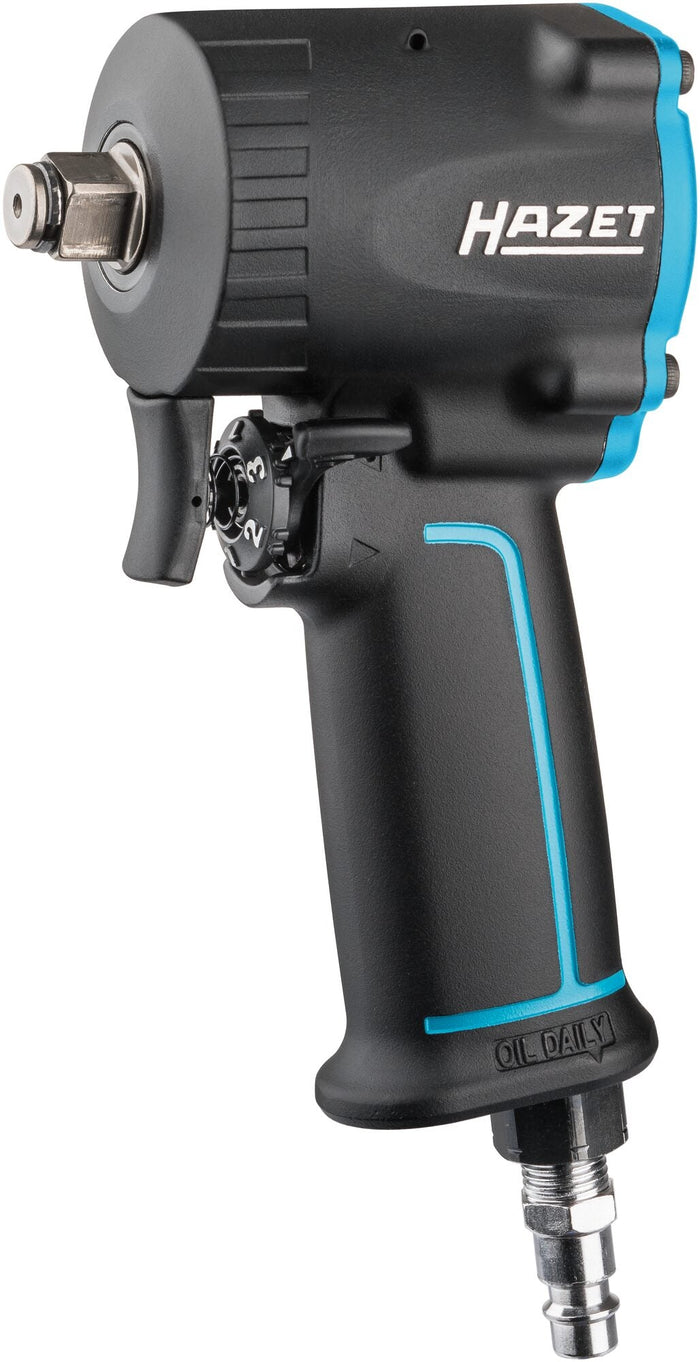

Hazet 1/2" (12.5mm) Square Solid Impact Wrench Extra Short 1200 Nm 9012M-1
SKU: HAZ9012M-1
9012M-1
DESCRIPTION
Specifications
Shipping & Delivery
Hazet 1/2" (12.5mm) Square Solid Impact Wrench Extra Short 1200 Nm 9012M-1
-
Ultra compact design optimised for work in confined spaces
-
Maximum loosening torque: 1200 Nm
-
One-hand operation for right and left-handed operators
-
Exhaust air is guided through the handle downwards
-
Reduced vibrations
-
Easy handling
-
Extra short – only 80 mm
-

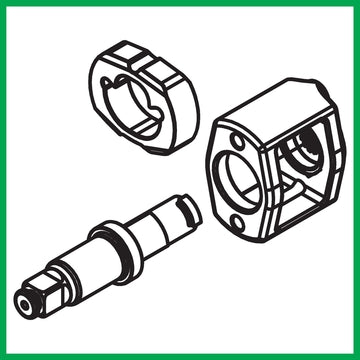

Single hammer striking mechanism
-

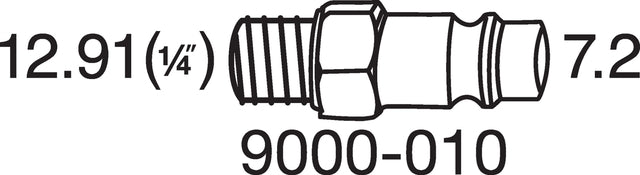

Air connection inlet: Inside thread 12.91 mm (1/4″)
-
Coupler plug: Nominal size 7.2 (included)
-
Recommended torque: 610 Nm
-
Hose diameter (recommended): 10 mm
-
Working pressure (bar): 6.3
-
Sound power level: 103.2 db(A) Lp W
-
Vibration acceleration: 13.49 m/s2
-
Loosening torque (max) determined with screw size M: 16
-
Forward and reverse: three-stage (forward), single-stage (reverse)
-
Cold insulated handle
-
Output: Square, solid 12.5 mm (1/2 inch)
-

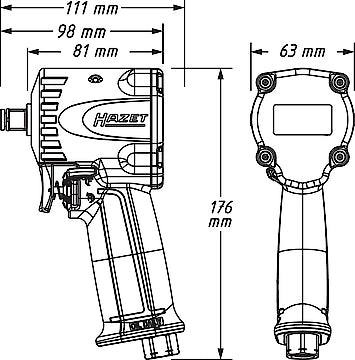

Dimensions / length: 80 mm
-
Net weight: 1.27 kg
-
Tightening torque max.: 678 Nm
-
Maximum loosening torque: 1200 Nm
-
Sound pressure level: 92.2 dB(A) Lp A
-
Revolutions per minute: 8800
-
Air requirement: 127.4 l/min (2.1 l/sec)
Discover the Hazet 1/2" (12.5mm) Square Solid Impact Wrench Extra Short 1200 Nm 9012M-1 at Mektronics Australia – your trusted source for quality tools and equipment!
|
Loosening torque maximum |
1200 Nm |
|
Output |
1/2 inch (12.5 mm) square, solid |
|
Manual/impact operation |
For impact operation |
|
Tightening torque maximum |
678 Nm |
|
Net weight |
1.27 kg |
|
Striking mechanism (type) |
Single hammer striking mechanism |
|
Air requirement |
127.4 l/min |
|
Forward and reverse |
three-stage (forward), single-stage (reverse) |
|
Dimensions |
80 mm |
|
Recommended torque |
610 Nm |
|
Handle |
Cold insulated handle |
|
Hose diameter (recommended) |
10 mm |
|
Vibration acceleration |
13.49 m/s2 |
|
Length |
80 mm |
|
Sound pressure level |
92.2 dB(A) Lp A |
|
Revolutions per minute |
8800 |
|
Air connection inlet |
Inside thread 12.91 mm (1/4″) |
|
Loosening torque (maximum) determined with screw size M |
16 M |
|
Coupler plug |
Nominal size 7.2 (included) |
|
Sound power level |
103.2 db(A) Lp W |
|
Air requirement [l/sec] |
2.1 l/sec |
|
Working pressure (bar) |
6.3 bar |
