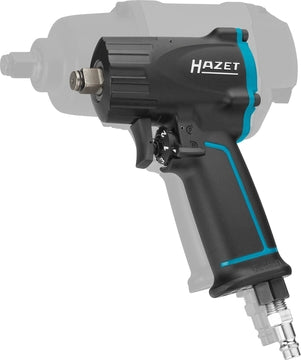

Image for Illustrative Purposes Only

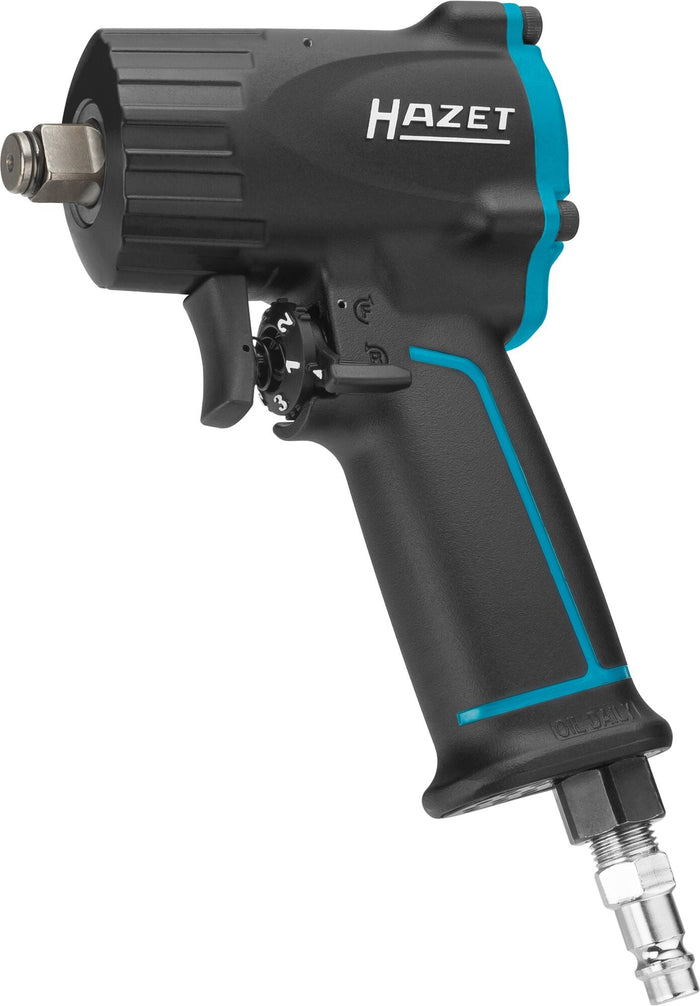

Hazet 1/2" (12.5mm) Square Solid Impact Wrench Extra Short 1100 Nm 9012M
SKU: HAZ9012M
9012M
DESCRIPTION
Specifications
Shipping & Delivery
Hazet 1/2" (12.5mm) Square Solid Impact Wrench Extra Short 1100 Nm 9012M
-
Maximum loosening torque: 1100 Nm
-

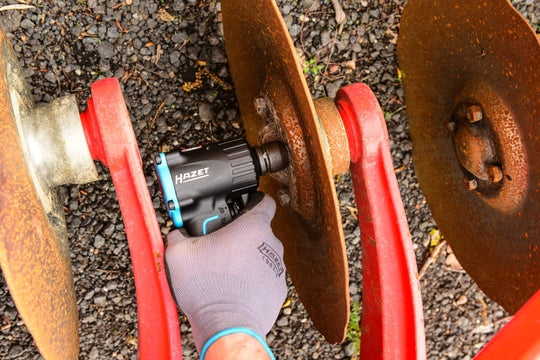

Extremely compact construction enables working in areas with restricted access
-

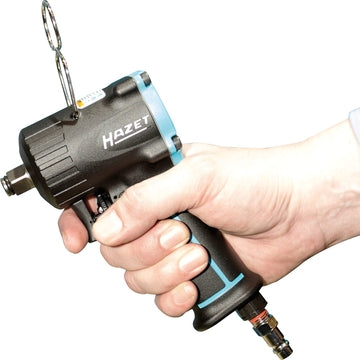

One-hand operation for right and left handed operators
-
Exhaust air is guided through the handle downwards
-
Reduced vibrations
-
Easy handling
-

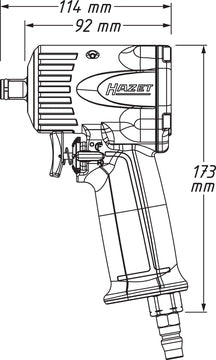

Extra short – only 92 mm
-

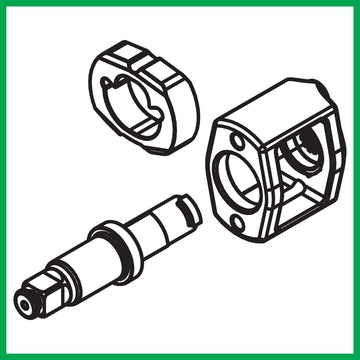

Single hammer striking mechanism
-

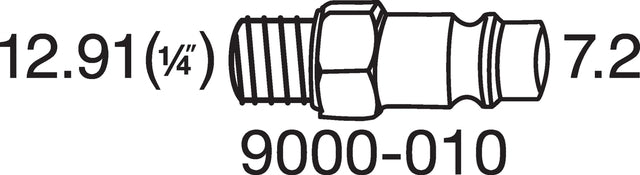

Air connection inlet: Inside thread 12.91 mm (1/4″)
-
Coupler plug: Nominal size 7.2 (included)
-
Recommended torque: 610 Nm
-
Hose diameter (recommended): 10 mm
-
Working pressure (bar): 6.3
-
Sound power level: 108.1 db(A) Lp W
-
Vibration acceleration: 9.57 m/s2
-
Loosening torque (max) determined with screw size M: 16
-
Forward and reverse: three-stage (forward), single-stage (reverse)
-
Cold insulated handle
-
Output: Square, solid 12.5 mm (1/2 inch)
-
Net weight: 1.24 kg
-
Tightening torque max.: 678 Nm
-
Maximum loosening torque: 1100 Nm
-
Sound pressure level: 97.5 dB(A) Lp A
-
Revolutions per minute: 10000
-
Air requirement: 127 l/min (2.1 l/sec)
Discover the Hazet 1/2" (12.5mm) Square Solid Impact Wrench Extra Short 1100 Nm 9012M at Mektronics Australia – your trusted source for quality tools and equipment!
|
Loosening torque maximum |
1100 Nm |
|
Output |
1/2 inch (12.5 mm) square, solid |
|
Manual/impact operation |
For impact operation |
|
Tightening torque maximum |
678 Nm |
|
Net weight |
1.24 kg |
|
Striking mechanism (type) |
Single hammer striking mechanism |
|
Air requirement |
127 l/min |
|
Forward and reverse |
three-stage (forward), single-stage (reverse) |
|
Recommended torque |
610 Nm |
|
Handle |
Cold insulated handle |
|
Hose diameter (recommended) |
10 mm |
|
Vibration acceleration |
9.57 m/s2 |
|
Sound pressure level |
97.5 dB(A) Lp A |
|
Revolutions per minute |
10000 |
|
Thread type air inlet |
PT |
|
Air connection inlet |
Inside thread 12.91 mm (1/4″) |
|
Loosening torque (maximum) determined with screw size M |
16 M |
|
Coupler plug |
Nominal size 7.2 (included) |
|
Sound power level |
108.1 db(A) Lp W |
|
Air requirement [l/sec] |
2.1 l/sec |
|
Working pressure (bar) |
6.3 bar |
