Hazet 1/2" (12.5mm) Square Solid Impact Ratchet 9022SR-1
SKU: HAZ9022SR-1
9022SR-1
DESCRIPTION
Specifications
Shipping & Delivery

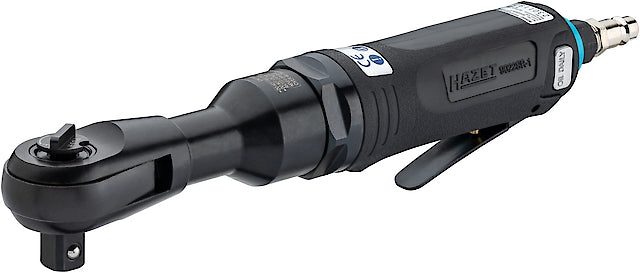

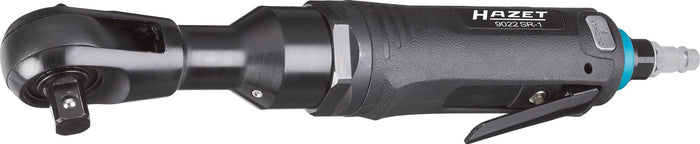

Hazet 1/2" (12.5mm) Square Solid Impact Ratchet 9022SR-1
-
High occupational safety thanks to reaction-free striking mechanism
-
Low-impact
-
High torque values – approx. 30% more than standard products
-
Rotation speed – approx. 3 x higher than standard products
-
Suitable for manual retightening with torque values → 270 Nm (competing products with only approx. 250 Nm)
-

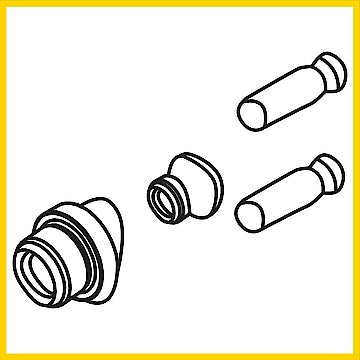

Powerful pin clutch mechanism
-

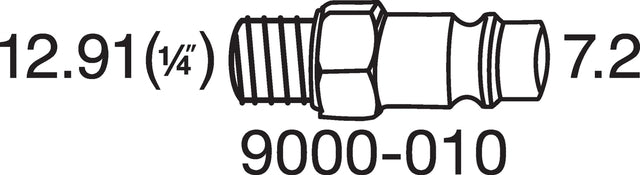

Air connection inlet: Inside thread 12.91 mm (1/4″)
-
Coupler plug: Nominal size 7.2 (included)
-
Hose diameter (recommended): 10 mm
-
Working pressure (bar): 6.3
-
Sound power level: 98 db(A) Lp W
-
Vibration acceleration: 4.53 m/s2
-
Forward and reverse: single-stage (right/left)
-
Cold insulated handle
-
Output: Square, solid 12.5 mm (1/2 inch)
-

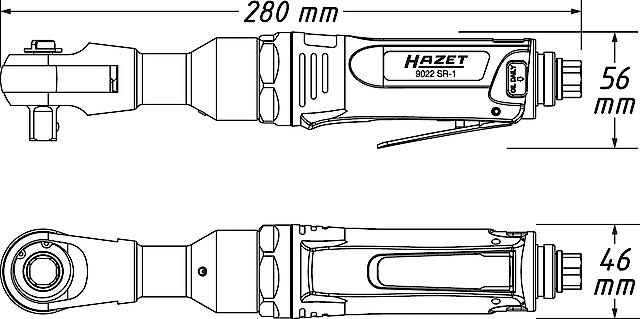

Dimensions / length: 280 mm
-
Net weight: 1.28 kg
-
Tightening torque max.: 102 Nm
-
Sound pressure level: 91 dB(A) Lp A
-
Revolutions per minute: 400
-
Air requirement: 113 l/min (1.9 l/sec)
Discover the Hazet 1/2" (12.5mm) Square Solid Impact Ratchet 9022SR-1 at Mektronics Australia – your trusted source for quality tools and equipment!
|
Manual/impact operation |
For impact operation |
|
Tightening torque maximum |
102 Nm |
|
Output |
1/2 inch (12.5 mm) square, solid |
|
Net weight |
1.28 kg |
|
Striking mechanism (type) |
Powerful pin clutch mechanism |
|
Air requirement |
113 l/min |
|
Forward and reverse |
single-stage (right/left) |
|
Dimensions |
280 mm |
|
Handle |
Cold insulated handle |
|
Hose diameter (recommended) |
10 mm |
|
Vibration acceleration |
4.53 m/s2 |
|
Length |
280 mm |
|
Sound pressure level |
91 dB(A) Lp A |
|
Revolutions per minute |
400 |
|
Air connection inlet |
Inside thread 12.91 mm (1/4″) |
|
Coupler plug |
Nominal size 7.2 (included) |
|
Sound power level |
98 db(A) Lp W |
|
Air requirement [l/sec] |
1.9 l/sec |
|
Working pressure (bar) |
6.3 bar |
