Hazet 1/2" (12.5mm) Square Solid High Performance Air Ratchet 9022P-1
SKU: HAZ9022P-1
9022P-1
DESCRIPTION
Specifications
Shipping & Delivery

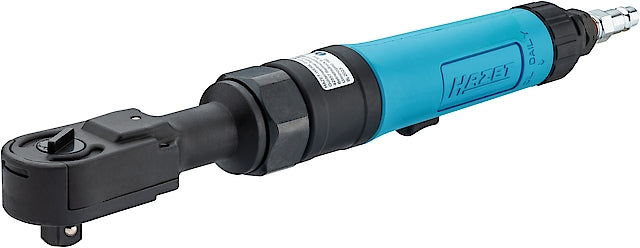

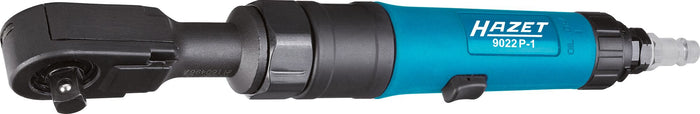

Hazet 1/2" (12.5mm) Square Solid High Performance Air Ratchet 9022P-1
-
Sturdy workshop construction – especially suitable for continuous operation in industrial production processes
-
Extra-strong head made of heat-treated special steel
-
Sturdy ratchet head suitable for high permanent stress (series production and similar)
-
Completely closed head avoids the entry of swarf etc.
-
Long service life and high power rating of the device (long service life = long operational availability)
-
For manual retightening with torque values: 350 Nm (competing products approx. 250 Nm)
-
Air connection inlet: Inside thread 12.91 mm (1/4″)
-

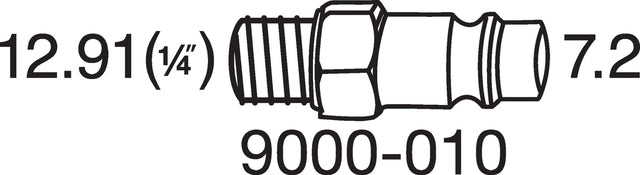

Coupler plug: Nominal size 7.2 (included)
-
Sound power level: 99.3 db(A) Lp W
-
Vibration acceleration: 3.00 m/s2
-
Forward and reverse: single-stage (right/left)
-
Output: Square, solid 12.5 mm (1/2 inch)
-

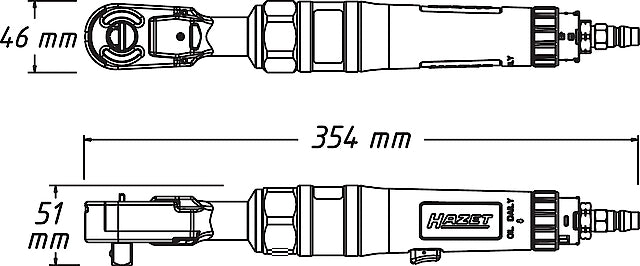

Dimensions / length: 354.3 mm
-
Net weight: 1.39 kg
-
Tightening torque max.: 95 Nm
-
Sound pressure level: 88.3 dB(A) Lp A
-
Revolutions per minute: 160
-
Air requirement: 77 l/min (1.3 l/sec)
Discover the Hazet 1/2" (12.5mm) Square Solid High Performance Air Ratchet 9022P-1 at Mektronics Australia – your trusted source for quality tools and equipment!
|
Manual/impact operation |
For impact operation |
|
Tightening torque maximum |
95 Nm |
|
Output |
1/2 inch (12.5 mm) square, solid |
|
Net weight |
1.39 kg |
|
Air requirement |
77 l/min |
|
Forward and reverse |
single-stage (right/left) |
|
Dimensions |
354.3 mm |
|
Vibration acceleration |
3.00 m/s2 |
|
Length |
354.3 mm |
|
Sound pressure level |
88.3 dB(A) Lp A |
|
Revolutions per minute |
160 |
|
Thread type air inlet |
BSPT |
|
Air connection inlet |
Inside thread 12.91 mm (1/4″) |
|
Coupler plug |
Nominal size 7.2 (included) |
|
Sound power level |
99.3 db(A) Lp W |
|
Air requirement [l/sec] |
1.3 l/sec |
