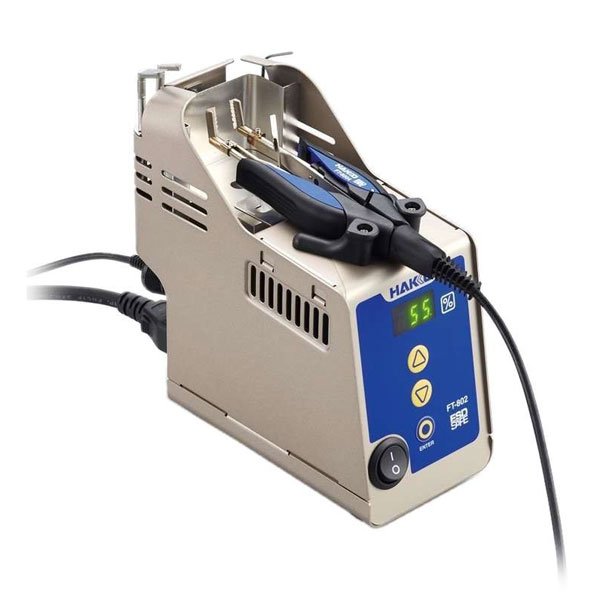

Hakko HFT802 Thermal Wire Stripper with FT8004-81 Handpiece
SKU: HFT802-43
HFT802-43
DESCRIPTION
Features
Contents
Specifications
Shipping & Delivery
Hakko HFT802 Thermal Wire Stripper with FT8004-81 Handpiece
-
Thermal wire stripper for higher quality and more preciseness
-
Even very fine AWG 38 can be stripped with standard blades
Discover the Hakko HFT802 Thermal Wire Stripper with FT8004-81 Handpiece at Mektronics Australia – your trusted source for quality tools and equipment!
-
More sharp, precise, and effective: Thermal wire stripper FT-802 enables higher quality and more precise insulation stripping. The performance that can strip insulation with no nick can meet the requirement of the latest aerospace industry and the medical industry that require s very high quality.
-
Thermal strip gives great sharpness: FT802 can strip the insulation of AWG 38 wire with no nick.
-
Due to the tweezers structure, the cutting edges are always aligned: The blades can be securely fixed by making the frame with tweezers structure.
-
Even very fine AWG 38 can be stripped with standard blades.
-
Blades are replaceable and a handpiece can be saved: No need to replace a handpiece when blades get worn out. Blades can be easily replaced by using the hex-wrench (included in the unit) and the blade removal plate.
-
Space saving by the integration of station and holder
-
Output setting by the unit of 5%. Easy to set optimum output level as per material.
-
User-friendly display: Status of a handpiece at glance on the display. User-friendly design for reduction of stress during the work.
-
Station (with wire material indicator seal)
-
Handpiece FT-8004 (with lead adjuster)
-
Hexagon socket set screw (M2.5 x 2.5 [qty 2])
-
Hexagon wrench (1.27 mm)
-
Power cord
-
Instruction manual
Note: blades are not included with this product. G4 series blades required.
Model No. |
FT-802 |
---|---|
Power consumption |
76W |
・Station
Output voltage |
AC 20V |
---|---|
Dimensions |
76(W)×159(H)×161(D)mm |
Weight |
1.6kg |
・Wire Stripper (FT-8004)
Power consumption |
72W (20V) |
---|---|
Cord length |
1.6m |
Total length |
153mm |
Weight |
47g |
・Optional Wire Stripper (FT-8003)
Power consumption |
46W (24V) |
---|---|
Cord length |
<2m |
Tip to ground resistance |
<2Ω |
Tip to ground potential |
1.3mV |
Total length |
155mm |
Weight |
27g |
