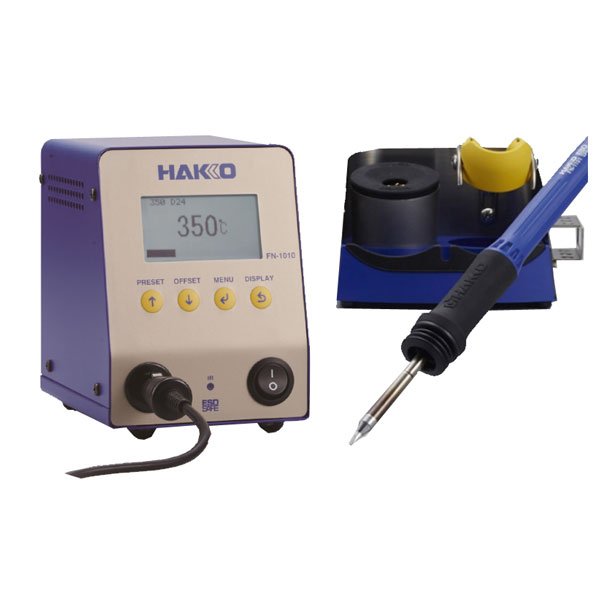

Hakko HFN1010 IoT Capable Soldering Station
SKU: HFN1010-43
HFN1010-43
DESCRIPTION
Features
Contents
Specifications
Shipping & Delivery
Hakko HFN1010 IoT Capable Soldering Station
-
Improve traceability
-
Minimize human error
-
Optimize soldering conditions
Discover the Hakko HFN1010 IoT Capable Soldering Station at Mektronics Australia – your trusted source for quality tools and equipment!
Enables human error-free temperature control and traceability of manual soldering process
-
FN-1010 and FG-100B equipped with communication function
-
Pioneer the future of soldering with advanced IoT technology
"Process control" and "Traceability" can be established through daily manual soldering operation
-
Optimization of soldering conditions is now possible based on a variety of information in daily soldering process collected by FN-1010
-
The following information can be collected by memory chip in T36 series tip and saved in a computer through a soldering station (Tip shape, Tip Serial number, Number of loads, Total time of power supplied, Load sensitivity, Type of solder alloy (Lead-Free / Lead), Count alarm)
Automatic calibration/off-set can be completed once measurement result is sent through infrared
-
Human error-free "tip temperature calibration " and "off-set" can be established through daily manual soldering process
-
Results of measurement/calibration/off-set can be recorded automatically
Options for IoT communication
Visualize energy supplied during soldering
-
It is now possible to visualize invisible energy supplied from T36 series tip during soldering. And that makes it possible to control factors of soldering, which were impossible before
Real-time work status on the LCD screen
Improved button operation
-
Quick access to "Preset temperatures" and "Off-set mode" with one push
-
It takes few button operation to access to most frequently used functions
Notification of alarm with sound and vibration: Alarm can be notified with vibration in a noisy environment
Free fall detection function
-
Built-in motion sensor detects free fall and cuts the power
-
It can prevent burning floor, a fire and other accident with the heat
Tip cleaner with solder ball preventive design
-
Solder ball during tip cleaning can be reduced by 99% with devised cleaner designs such as smaller aperture, and set angle as well as position
Tip replacement without heat resistant pad
-
Station
-
Handpiece (FN-1101)
-
Tip Cleaner (FT-401 with cleaning wire)
-
Power cord
-
Iron Holder (FH-210
-
Instruction Manual
|
Model No. |
FN-1010 |
|---|---|
|
Power consumption |
100W |
|
Temperature range |
50 to 450 ºC |
|
Temperature stability |
±3 ºC |
・Station
|
Output voltage |
AC 21V |
|---|---|
|
Dimensions |
104(W)×138(H)×152(D)mm |
|
Weight |
1.9kg |
・Soldering Iron
| Power consumption | 95W (21V) |
|---|---|
| Tip to ground resistance | <2Ω |
| Tip to ground potential | <2mV |
| Heating element | Composite heater |
| Cord length | 1.2m |
| Total length | 180mm (with 2.4D tip) |
| Weight | 32g (with 2.4D tip) |
