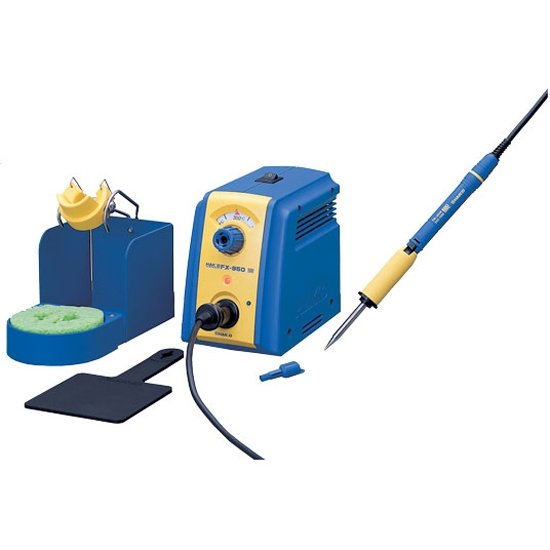

Hakko FX-950 Analog ESD Solder Station
SKU: HFX950-17
FX950-17
DESCRIPTION
Features
Specifications
Resources
Shipping & Delivery
Hakko FX-950 Analog ESD Solder Station
-
Analog type of HAKKO FX-951
-
Lock key enables temperature control even on this analog type unit
-
Selectable soldering iron for N2 system as usage at your option
NOTE: T12 SOLDERING TIPS NOT INCLUDED - AVAILABLE TO PURCHASE HERE
Discover the Hakko FX-950 Analog ESD Solder Station at Mektronics Australia – your trusted source for quality tools and equipment!
- Excellent Thermal Recovery
- The excellent thermal recovery allows setting lower preset temperatures.
- It is also useful for lead-free soldering which requires higher melting temperatures.
- Uses lock-type Sleeve Assembly soldering iron.
- 85 variations of HAKKO tips are available for various types of soldering from IC modifications to soldering of power sections.
- Temperature control function using a lock key
- The lock key can lock the present temperature.
- Digital offset makes temperature correction easy.
- The compact design is well-suited to cell production: 80mm (W) × 118mm (H) × 138mm (D)
- Soldering iron holder can be set to any angle safely.
- LED lamp to indicate errors
| Power consumption | 75W |
| Temperature range | 200 to 450ºC |
| Temperature stability | ±5ºC at idle temperature |
| Station | |
| Output voltage | AC 24V |
| Dimensions | 80 (W) × 118 (H) × 138 (D) mm |
| Weight | 1.2kg |
| Soldering Iron | |
| Power consumption | 70W (24V) |
| Tip to ground resistance | <2Ω |
| Tip to ground potential | <2mV |
| Heating element | Composite heater |
| Cord length | 1.2m |
| Total length | 188mm (with 2.4D tip) |
| Weight | 30g (with 2.4D tip) |
