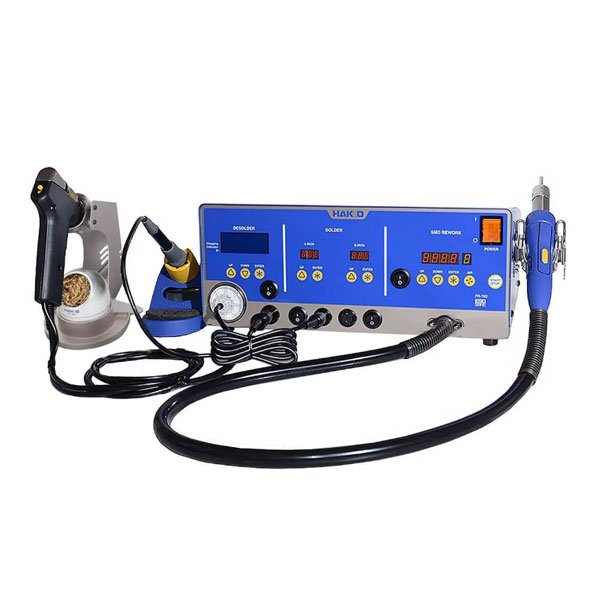

Hakko FR-702 Dual Port Rework System
-
Powerful rework stations that contain every function needed for rework
-
Safer and more secure rework operation
-
With upgraded all the applications
-
4-in-1 unit for space saving
-
Compatible with N2 system by purchasing N2 iron (FX-8802) as an optional accessary
Discover the Hakko FR-702 Dual Port Rework System at Mektronics Australia – your trusted source for quality tools and equipment!
- Station
-
Soldering iron (FX-8801)
-
Desoldering gun (FR-4103)
-
Iron holder for soldering gun (with cleaning wire)
-
Iron holder for desoldering iron (with cleaning sponge, cleaning wire)
-
Tool box (Cleaning pin for ø1.0 mm, Cleaning pin for heater, Cleaning drill for ø1.0 mm, Nozzle wrench, Filter [qty 2], Ceramic paper filter [qty 4]),
-
Handpiece holder for hot air
-
Pad (Φ3mm, Φ5mm, Φ7.6mm: qty 2 each)
-
Heat resistant pad
-
Vacuum Pipe Control Knob (L with screw)
-
Color band (qty 2)
-
Power cord
-
Instruction manual
4 Port Rework Station with 140 W desoldering gun, M-type soldering iron and 670W hot air
-
It handles various soldering, desoldering and reworking by choosing proper handpieces from a selection of 7 types.
Other than the standard handpieces of 140 W desoldering gun, M-type soldering iron and high power & large volume hot air, there are 4 more applications. Consumed tip nozzle and heating element can be replaced individually, and running cost is much lower than the composite type.
-
High-power Desoldering gun HAKKO FR-4103
Increasing the power to 140 W from 50 W of our previous models (HAKKO 474, 475), it can make it easy to desolder on multi-layer {WB which was never an easy job, and it can also shorten the process time. A wide selection of nozzle, with the addition of new types, is available for a variety of desoldering works. Long type nozzles for narrow space. Oval shape nozzles for flat terminals. SS type nozzles for micro land-patterns.
-
Soldering iron HAKKO FX-8801/FX-8805
Thermal conductivity has been increased by reviewing external configuration and internal struction of 900 tip series. Now T18 and T19 tip series are selectable depending on work environment.
-
Hot air handpiece
670 W high power and large volume hot air improves work efficiency.
-
N2 soldering iron HAKKO FX-8802
The N2 gas runs into the nozzle assembly and covers over the soldering tip. It prevents the soldering tip and the heater from being readily oxidized and performs great role as a preheating. Two effects of N2 system, preventing oxidation or preheating effect, can improve soldering defects such as bridging, protrusion icicle, insufficient solder filling in PTH, etc. T18 tips series are compatible with this application.
- One-hand Manual-solder-feed iron HAKKO FX-8803
Solder and feed with one hand. Feed a set amount of solder with one hand. Manual feed system is perfect for cellular manufacturing. Soldering work can be conducted at the pace of the operator. T18 tips series are compatible with this application.
- SMD Hot Tweezer HAKKO FX-8804
Model No |
FR-702 (Desoldering Tool: FR-4103) |
Power Consumption |
1,030W |
STATION
Dimensions |
370 (W) x 150 (H) x 220 (D) mm |
Weight |
9kg |
STATION (SOLDERING)
Output Voltage |
AC 26V |
Temperature Range |
50 to 480 °C |
Temperature Stability |
±1 °C at idle temperature (when set to 200 to 480 °C) |
STATION (DESOLDERING)
Output Voltage |
AC 24V |
Vacuum generator |
Vacuum pump, double cylinder type |
Vacuum pressure |
80kPa (600mmHg) |
Suction flow |
15L/min |
Temperature Range |
330 to 450 °C |
Temperature Stability |
±5 °C at idle temperature |
STATION (HOT AIR)
Power Consumption |
30W |
Air Flow |
1 to 9 (5 to 115L/min)L/Min |
Temperature Range |
50 to 600 °C |
SOLDERING IRON
Power Consumption |
65W (26V) |
Tip to ground resistance |
<2Ω |
Tip to ground potential |
<2mV |
Heating Element |
Ceramic heater |
Standard Tip |
Shape-B (No.T18-B) |
Cord Length |
1.2m |
Total Length |
222mm (with B tip) |
Weight |
52g (with B tip) |
DESOLDERING GUN
Power Consumption |
140W (24V) |
Nozzle to ground resistance |
<2Ω |
Nozzle to ground potential |
<2mV |
Heating Element |
Composite Heater |
Standard Nozzle |
Φ1.0mm S type (No.N61-05) |
Cord Length |
1.2m |
Total Length |
168mm (with Φ1.0mm S type nozzle) |
Weight |
190g (with Φ1.0mm S type nozzle) |
HANDPIECE (HOT AIR)
Power consumption |
670W |
Total length |
250mm |
Weight |
180g |
The suction flow is measured at the filter case suction port of station.
Airflow capacity is rated as free flowing. Restrictions created by various nozzles may reduce the maximum airflow capacity.
Total length and weight (w/o cord, hose)
