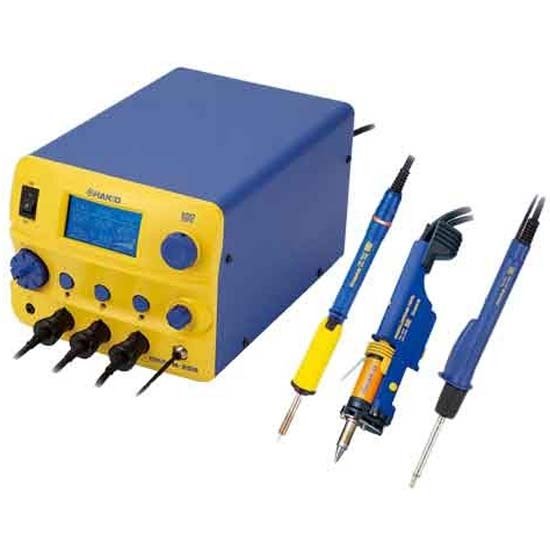

Hakko FM-206 3-Port Multi-Station
SKU: HFM206-20
FM206-20
DESCRIPTION
Features
Includes
Specifications
Shipping & Delivery
Hakko FM-206 3-Port Multi-Station
A compact station capable of performing any task whether Leaded or Lead-free solder, through hole or SMD, this is all possible with the Hakko FM-206 3-Port Multi-Station.
Supplied standard are 3 tools, Soldering iron, Desoldering gun and Micro Hot air. With this station, smd components can be removed with the micro hot air and replaced with the soldering iron.
Depending on component size, select a tip from T12 series to re-solder, if it is an IC the T12-BCM2/3 using the drag method will quickly and easily solder in place.
The de-soldering gun utilises the latest in temperature controlled nozzles allowing lower temperatures but consistent temperature for through-hole lead removal.
Flexibility of this station allows you to control extra optional tools such as the Heavy duty iron FM2030 and hot tweezers FM2023 (small) or FM2022 (large).
Along with simple controls, large LCD display and safety functions are all encompassed in the Hakko FM-206 3-Port Multi-Station.
NOTE: T12 SOLDERING TIPS NOT INCLUDED - AVAILABLE TO PURCHASE HERE
Discover the Hakko FM-206 3-Port Multi-Station at Mektronics Australia – your trusted source for quality tools and equipment!
-
LCD display interface for easy setup with simple dial adjustment control
-
3 simultaneous controlled ports
-
Self-contained pump for vacuum and air flow
-
Digital airflow monitor
-
Manual or Auto mode
-
Low cost composite hot air nozzles N4 series
-
Soldering tip range select from T12, Desoldering nozzles N1 series
-
ESD safe
-
Auto shutoff and sleep function
-
Passcode and security lock function.
Combines soldering, desoldering, and rework functions in a compact body.
Features expandability in which the handpiece can be switched as needed for added functions. Comes with hot air-type rework functions and expands the range of repair of SMD parts with hot air handpiece.
-
FM-2027 Soldering Iron
-
FM-2024 Desoldering Tool
-
FM-2029 Rework Tool (hot-air type)
| Power consumption | 410W (Max.) |
|---|---|
| Temperature range | FM-2026/2027：200 to 450ºC FM-2022/2023：200 to 400ºC FM-2024：350 to 450ºC FM-2029：100 to 550ºC FM-2030：200 to 500ºC FM-2031：200 to 500ºC FM-2032：200 to 450ºC |
| Temperature stability | ±5ºC at idle temperature |
| Station | |
|---|---|
| Output voltage | AC 24V |
| Vacuum generator | Vacuum pump, cylinder type |
| Vacuum pressure | 80kPa (600mmHg) (Max.) |
| Suction flow | 14L/min. |
| Air flow | 6L/min. (Max.) |
| Dimensions | 162(W)×136(H)×245(D)mm |
| Weight | 6.2kg |
| Soldering Iron | |
|---|---|
| Power consumption | 70W (24V) |
| Tip to ground resistance | <2Ω |
| Tip to ground potential | <2mV |
| Heating element | Composite heater |
| Cord length | 1.2m |
| Total length | 188mm (with 2.4D tip) |
| Weight | 30g (with 2.4D tip) |
| Desoldering Tool | |
|---|---|
| Power consumption | 70W (24V) |
| Nozzle to ground resistance | <2Ω |
| Nozzle to ground Potential | <2mV |
| Heating element | Composite heater |
| Cord length | 1.2m |
| Total length | 180mm (with Φ1.0mm nozzle) |
| Weight | 65g (with Φ1.0mm nozzle) |
| Handpiece (Hot air) for FM-206 | |
|---|---|
| Power consumption | 140W (24V) |
| Nozzle to ground resistance | <2Ω |
| Nozzle to ground potential | <2mV |
| Heating element | Composite heater |
| Cord length | 1.2m |
| Total length | 232mm (with Φ4.0mm nozzle) |
| Weight | 50g (with Φ4.0mm nozzle) |
