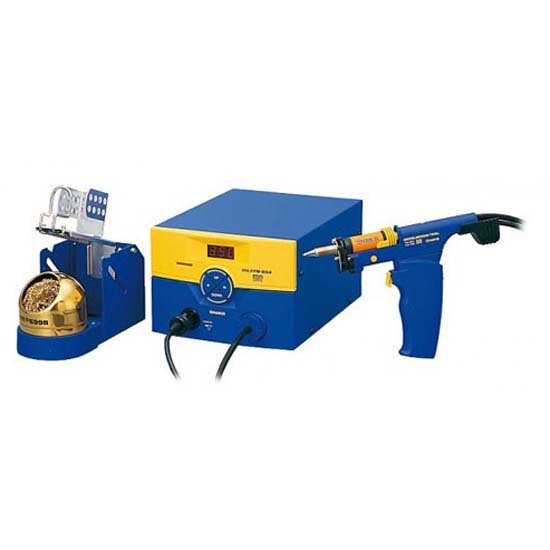

Hakko FM-204 Desolder Station
Image for Illustrative Purposes Only
Hakko Logo

Hakko FM-204 Desolder Station

SKU: HFM204-15

FM204-15

$1,269.00

EX. GST
Regular price $1,613.25
$1,395.90
INC GST
Regular price $1,774.58
Out of Stock: Available to Order

own it from $10 a week with Group 2 Copy Created with Sketch.

Features
Includes
Specifications
Shipping & Delivery

  • Vacuum pump type desoldering tool

  • Excellent thermal recovery

    The integrated nozzle containing both heating element and sensor provides higher thermal recovery than conventional tips.

  • Soldering work is possible by replacing the handpiece

    Connectible handpieces:

    - Desoldering handpiece (Hakko FM-2024)

    - Soldering Iron (Hakko FM-2027)

    - N2 Soldering Iron (Hakko FM-2026)

  • Easy maintenance

    Filter pipe replacement:

    - Disposable paper filter pipe

    - Easy to dispose of paper and solder separately

    Nozzle replacement

    - Safe to replae with nozzle remover

    - Replacable even before the end of nozzle has cooled down

  • Power safe function

    Sleep function:

    When the handpiece is placed on the Iron Holder (FH200-01/FH200-02), the sleep function operates and decreases the unused tip temperature up to approximately 200 °C , preventing the tip from being oxidized. In addition, this function can relieve the loads applied to the tip due to the high-temperature settings required for lead-free soldering

    * The connecting cable enables the iron holder and temperature controller to be activated

  • Auto power shut-off function:

    By connecting the iron holder (HAKKO FH-200) to the connecting cable, the auto power shut-off function is activated in the same manner as the sleep function. Selectable buzzer and alert ON/OFF setting Buzzer and alert sound generation upon error and when reaching the setting temperature can be selected. ON/OFF-settable buzzer sound

Discover the Hakko FM-204 Desolder Station at Mektronics Australia – your trusted source for quality tools and equipment!

  • Main unit (HAKKO FM-204 station)

  • Iron holder (No. FH200-05; with tip cleaner)

  • Ceramic paper filter (10pcs.) (for replacement)

  • Cleaning drill (for heating element)

  • Filter pipe assemblies (2pcs.) (originally equipped to the unit and one for spare*5)

  • Control card

  • Desoldering tool (Model FM-2024)

  • Connecting cable

  • Nozzle remover

  • Handle (for gun configuration)

  • Power cord

  • Instruction manual

  • Tip tray

NOTE: NO TIPS ARE INCLUDED

Power consumption

120W

Temperature range

FM-2024 : 350 to 450 ºC

FM-2026/2027 : 200 to 450 ºC

Temperature stability

±5 ºC at idle temperature
Station

Output voltage

AC 24V

Vacuum generator

Vacuum pump, double cylinder type

Vacuum pressure

Max. 80kPa (600mmHg)

Suction flow

15L/min.

Dimensions

160(W)×120(H)×225(D)mm

Weight

3.7kg
Desoldering Tool

Power consumption

70W (24V)

Nozzle to ground resistance

<2Ω

Nozzle to ground potential

<2mV

Heating element

Composite heater

Cord length

1.2m

Total length

180mm (with Φ1.0mm nozzle)

Weight

65g (with Φ1.0mm nozzle)
