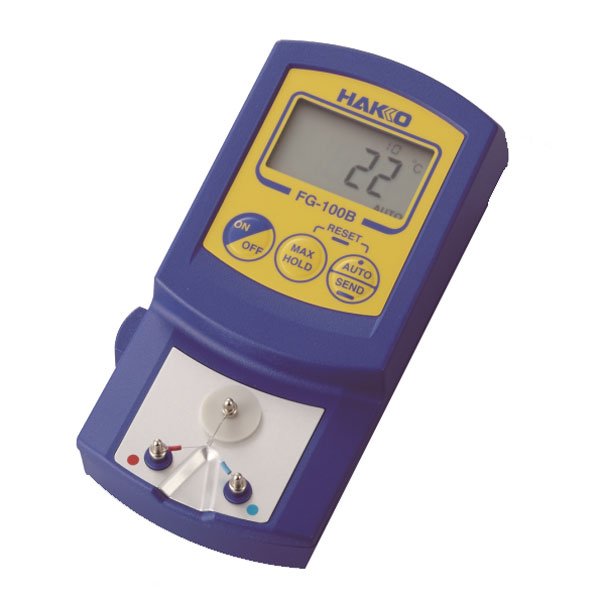

Hakko FG100B °C Type Thermometer
Image for Illustrative Purposes Only
Hakko Logo

Hakko FG100B Deg C Type Thermometer

SKU: HFG100B-54

HFG100B-04

$538.37

EX. GST
$592.21
INC GST
Out of Stock: Available to Order

own it from $10 a week with Group 2 Copy Created with Sketch.

DESCRIPTION
Features
Specifications
Shipping & Delivery

Hakko FG100B Deg C Type Thermometer

  • Automatic measurement to standardize the process

  • Automatic temperature measurement

  • Measurement counter can be useful for control of changing sensor

  • Fine sensor can deliver accurate measurements

Discover the Hakko FG100B Deg C Type Thermometer at Mektronics Australia – your trusted source for quality tools and equipment!

Automatic temperature measurement：AUTO HOLD Function

  • The measurement will end automatically when tip temperature is stabilized.

  • The measurement process will be the same no matter who does it.

Constant display of measured max. temperature：MAX HOLD Function

  • Max measured tip temperature will be displayed.

  • This function can be useful for quality control of components and P.W.B.

Temperature Sending Function

  • Measurement result by AUTO HOLD function or MAX HOLD function can be sent to a soldering station (FN-1010) through infrared.

  • This function can eliminate manual process of recording results, the time for the process, and human error.

Temperature Measurement Count Function

  • Number of tip temperature measurement will be automatically counted.

  • This function can be useful for control of changing sensor.

Auto Shutoff Function

  • The power will automatically be shut off after 3 minutes of no use.

  • It can save battery power and time for changing battery.

Fine sensor can deliver accurate measurements.

  • Suitable for Lead-Free Solder

  • Disposable sensor always maintains accurate temperature measurment (Replace sensor when the measuring point underwent degradation)

Dimensional Measurement

  • Allows you to measure from any desired direction according to tip shape

Model No.

FG-100B

Power supply

006P 9V dry battery (alkaline cell recommended)

Temperature resolution

1 ºC

Temperature measurement range

0 to 700 ºC

Temperature precision

±3 ºC (300 to 600 ºC)

±5 ºC (other than above)

Temperature sensor

K (CA)type thermocouple

Display

LCD : 3 1/2 digits

Operating environment

Ambient temperature/humidity range : 0 to 40 ºC, max.80% RH (without condensation)

Environmental conditions

Applicable rated pollution degree 2 (According to IEC/UL 61010-1)

Dimensions

68(W)×140(H)×38(D) mm

Weight

125g
