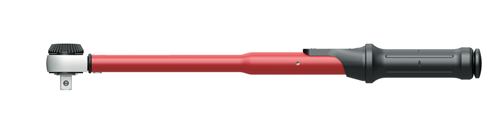

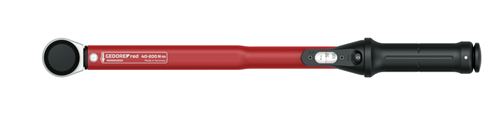

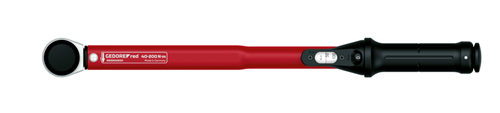

Gedore Torque Wrench 1/2" 40-200Nm R68900200
SKU: GED3301217
3301217
DESCRIPTION
Specifications
Shipping & Delivery
Gedore Torque Wrench 1/2" 40-200Nm R68900200
-
Controlled screw tightening from 40 to 200 Nm
-
Repeatable and precise
-
Clearly audible and tangible torque release
-
Right-hand and left-hand tightening by changing the mushroom head / push-through square
-
Adjustable torque wrench with square drive and integrated ratchet function
-
square drive with ratchet mechanism
-
The torque is adjusted by turning the handle
-
The set value is fixed via the lock at the end of the handle
-
Very easy to read scale with magnifying glass for Nm, plus 1/10 scale for exact setting
-
Trigger accuracy: +/-3% tolerance of the set scale value
-
Torque wrench with test certificate according to DIN EN ISO 6789
Discover the Gedore Torque Wrench 1/2" 40-200Nm R68900200 at Mektronics Australia – your trusted source for quality tools and equipment!
-
Distance between housing and square center: 22 mm
-
Drive type/drive: Square drive with rotary knob, serrated
-
Square drive [metric]: 12.5 mm
-
Square drive [inch]: 1/2"
-
Number of teeth: 48
-
Tightening direction: Left and right
-
Design: Square drive with rotary knob, grooved
-
Release mechanism: short-throw release
-
Torque (max.) [Nm]: 200 Nm
-
Torque (min.) [Nm]: 40 Nm
-
Application: Assembly, maintenance and repair
-
Fixed setting: No
-
Calibration length: 394.2 mm
-
Head width 1 [mm]: 46.0 mm
-
Head height 1 [mm]: 35.9 mm
-
Vernier Nm: 1 Nm
-
Precision +/-: +/- 3%
-
Test certificate: DIN EN ISO 6789-2:2017
-
Compliance: compliant
-
return angle: 7.5 °
-
Square drive locking: ball lock
-
Scale type: Mono
Dimensions & Weights
-
Total width [mm]: 52 mm
-
Total height [mm]: 45 mm
-
Total length [mm]: 485 mm
-
Nominal width [mm]: 52 mm
-
Nominal height [mm]: 45 mm
-
Nominal length [mm]: 485 mm
-
Net weight [kg]: 1.42 kg
