Image for Illustrative Purposes Only

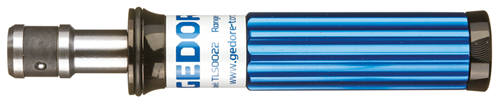

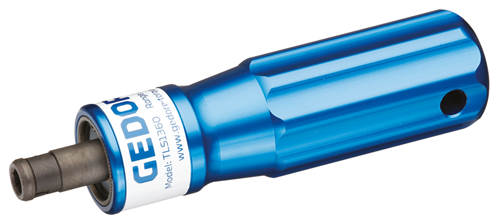

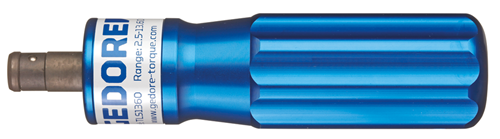

Gedore Torque Screwdriver STD FH BLUE 1/4" 50-400 cNm
SKU: GED1471457
1471457
DESCRIPTION
Specifications
Shipping & Delivery
Gedore Torque Screwdriver STD FH BLUE 1/4" 50-400 cNm
-
Controlled screw tightening in the range of 50 - 400 cNm
-
series assembly with constant value
-
electronics industry, precision mechanics and industrial manufacturing
-
Fixed torque screwdriver - without scale
-
With 1/4" hexagon socket for operating 1/4" bits according to DIN 3126 - C 6.3
-
Trigger accuracy: +/- 6 % tolerance of the set value
-
Design according to DIN EN ISO 6789 Type II Class F
-
Precision circulating ball coupling for controlled right and left tightening, special versions available
-
Precision mechanism glides noticeably when the set value is reached
-
Automatic return to the starting position
-
Lightweight construction thanks to anodized aluminum handles
-
torque wrench Model No. TLS 1360 FH with additional cross handle for easier work
-
test certificate according to DIN EN ISO 6789-2:2017
-
Delivery in sturdy cardboard box
Discover the Gedore Torque Screwdriver STD FH BLUE 1/4" 50-400 cNm at Mektronics Australia – your trusted source for quality tools and equipment!
-
Drive socket, hexagon [metric]: 6.3 mm
-
Drive socket, hexagon [inch]: 1/4"
-
Drive type/drive: bit holder
-
Tightening direction: Left and right
-
Release mechanism: slip clutch
-
Torque (max.) [cNm]: 400 cNm
-
Torque (min.) [cNm]: 50 cNm
-
Application: Assembly Manufacturing Quality control Serial assembly Maintenance and repair
-
EPA/ESD version: No
-
Fixed setting: Yes
-
Precision +/-: +/- 6%
-
Test certificate: DIN EN ISO 6789-2:2017
-
Cross handle available: No
-
Compliance: compliant
Dimensions & Weights
-
Total height [mm]: 34.8 mm
-
Total length [mm]: 127 mm
-
Nominal height [mm]: 34.8 mm
-
Nominal length [mm]: 127 mm
-
Net weight [kg]: 0.28 kg
