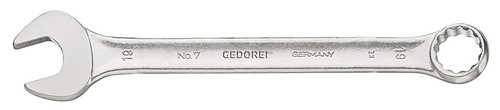

Gedore Combination Spanner UD Profile 22mm
SKU: GED6090990
6090990
DESCRIPTION
Specifications
Shipping & Delivery
Gedore Combination Spanner UD Profile 22mm
-
Design according to DIN 3113, Form A, ISO 3318, ISO 7738
-
Chrome-vanadium steel 31CrV3, chrome-plated
-
Carefully forged and expertly crafted
-
Slim jaw and narrow jaw walls make the key lighter overall
-
Mouth: precisely ground to exact nominal size for optimal contact surfaces
-
Ring: 15° angled, with UD profile - for gentle power transmission
-
Overload is indicated by deformation
-
Safe grip thanks to hollow shaft - very ergonomic and handy
-
Anti-glare look thanks to matt chrome plating
-
For universal use
-
High-quality industrial quality for tough continuous use
-
Size 3 to 5.5 with hexagon ring, from 6mm with UD profile
Discover the Gedore Combination Spanner UD Profile 22mm at Mektronics Australia – your trusted source for quality tools and equipment!
-

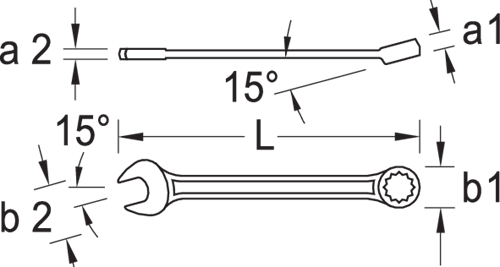

Standard: DIN 3113 - Form A ISO 3318 ISO 7738
-
Head width 1 [mm]: 32.0 mm
-
Head width 2 [mm]: 48 mm
-
Head height 1 [mm]: 13 mm
-
Head height 2 [mm]: 7.2 mm
-
Material: 31CrV3
-
Mouth position 1: 15°
-
Surface: chrome-plated
-
Compliance: compliant
-
Ring profile: UNIT-DRIVE
-
Ring angle: 15°
-
Wrench size 1 [mm]: 22
Dimensions & Weights
-
Total width [mm]: 48 mm
-
Total height [mm]: 20 mm
-
Total length [mm]: 262 mm
-
Weight [lbs]: 0.440 lbs
-
Nominal width [mm]: 48 mm
-
Nominal height [mm]: 20 mm
-
Nominal length [mm]: 262 mm
-
Net weight [kg]: 0.2 kg
