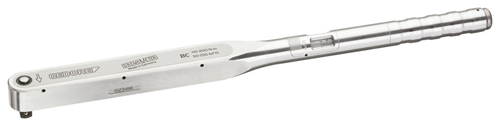

Gedore 8573-00 Torque Wrench DREMOMETER BC 1/2" 40-200Nm

SKU: GED7685530

7685530

$752.37

EX. GST
Regular price $1,980.13
$827.61
INC GST
Regular price $1,980.13
In Stock

Order before 2pm today for same day dispatch of up to units from our Sydney warehouse.

own it from $10 a week with Group 2 Copy Created with Sketch.

DESCRIPTION
Specifications
Shipping & Delivery

Gedore 8573-00 Torque Wrench DREMOMETER BC 1/2" 40-200Nm

  • Controlled screw tightening in the range of 40 - 200 Nm / 30 - 150 lbf ft

  • Use in almost all industrial manufacturing areas

  • Classified according to DIN EN ISO 6789-2:2017 Type II Class A, including traceable test certificate, calibrated to a maximum permissible deviation of +/- 3% and thus more precise than the +/- 4% required in the standard

  • 1/2" square drive with ball lock DIN 3120 - A 12.5, ISO 1174

  • Automatic short-path release with tactile and audible signal

  • Double scale with a scale division of 5 Nm and 5 lbf·ft

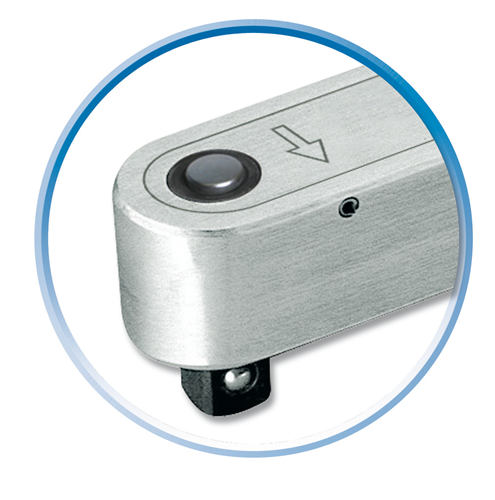

  • With push-button release

  • Technical advantage/function:

  • Light, but robust (as the housing is made of one piece of aluminum) and insensitive, very workshop-friendly

  • No shifts in value or influence on accuracy due to working with both hands or operation outside the handle (as with conventional torque wrenches).

  • Both the drive square and the pivot point are in one axis, thus ensuring high application safety, extendable to reduce the workload of the user

  • Extremely low wear due to force reduction of the lever mechanism

  • Forged lever chain from the group's own quality forge

  • Highest precision even with heavy continuous use

  • Long service life and long service life

  • Easy operation - fast and safe torque tightening

  • Comfortable adjustment thanks to the elegant, captive adjustment knob at the end of the handle

  • Single and double square for controlled right or left tightening

Discover the Gedore 8573-00 Torque Wrench DREMOMETER BC 1/2" 40-200Nm at Mektronics Australia – your trusted source for quality tools and equipment!

  • Distance between housing and square center: 17.5 mm

  • Drive type/drive: Single square rigid

  • Square drive [metric]: 12.5 mm

  • Square drive [inch]: 1/2"

  • Tightening direction: Right

  • Standard: DIN 3120 - A 12.5 ISO 1174

  • Release mechanism: short-throw release

  • Torque (max.) [lbf ft]: 150 lbf ft

  • Torque (min.) [lbf ft]: 30 lbf ft

  • Torque (max.) [Nm]: 200 Nm

  • Torque (min.) [Nm]: 40 Nm

  • Torque wrench type: BC

  • Application: Assembly, serial assembly, manufacturing, maintenance and repair

  • Fixed setting: No

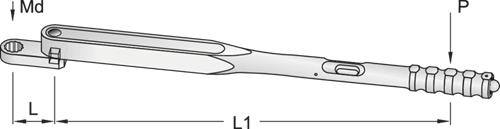

  • Calibration length: 463 mm

  • Head width 1 [mm]: 35.0 mm

  • Head height 1 [mm]: 30 mm

  • Material: aluminum alloy

  • Precision +/-: +/- 3%

  • Test certificate: DIN EN ISO 6789-2:2017

  • Compliance: compliant

  • Square drive locking: ball lock

  • Scale division [lbf·ft]: 5 lbf·ft

  • Scale division [Nm]: 5 Nm

  • Scale type: Dual

Dimensions & Weights

  • Total width [mm]: 35 mm

  • Total height [mm]: 30 mm

  • Total length [mm]: 551 mm

  • Nominal width [mm]: 35 mm

  • Nominal height [mm]: 30 mm

  • Nominal length [mm]: 551 mm

  • Net weight [kg]: 1.4 kg
